HC-6350CT360 Penguji kabel empat kawat
- Keterangan
- Pertanyaan
Keterangan
cable tester

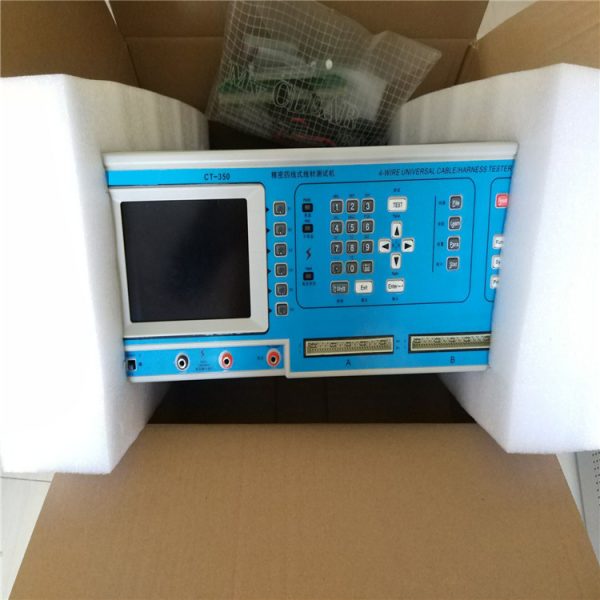

HC-6350 Series Precision four-wire Wire testing machine (Standar: 64PIN) The latest upgrade has higher precision test speed and voice test Wire tester/Wire tester is suitable for all kinds of connection lines, konektor, Jalur sambungan audio/video A/V, Uang sambungan colokan AC/DC dan produk lainnya pada deteksi jalur produksi atau inspeksi umpan pembeli suku cadang di atas.
cable tester
Characteristic description
| Up to 1500V test voltage | The system provides unilateral and point test functions |
| Four-wire measurement, the minimum conduction can be measured to 1mΩ | The system provides the function of on-return to zero measurement |
| Capacitance can be measured up to 1000uF | The test function of machine components is more prominent |
| All Chinese simple gymnastics, mudah digunakan | The system provides defective product output signal and lock function |
Test items:
| barang | simbol | Rentang pengukuran |
| Putus/korsleting | HAI/S | 200Ω~500KΩ |
| Penilaian titik akhir hubung singkat | ||
| Conduction test | KOND | 1mΩ~ 50.0Ω |
| Intermittent Cond. | 10mΩ~ 500.0Ω | |
| Resistance test | R | 0.01Ω~ 1MΩ |
| Capacitance test (including capacitance polarity) | C | 10pF~1000uF |
| Tes dioda | D | 0-7V |
| Resistensi isolasi | DAN | 1MΩ~1000GΩ |
| AC leakage current test | Hipot | Max.5mA |
cable tester
| Fungsi lanjutan
Mode pemindaian uji |
Precision four-wire measurement
Pengujian berkelanjutan yang dapat diprogram Automatic spot finding Automatic diagnosis Mengoreksi diri ke nol Automatic/short-circuit scan can be switched |
| Measure the signal source
Rated output Insulation test |
5Vdc 50~1500Vdc, 50~1000Vac(/FA) 50Vdc resolution ±1% accuracy |
| Perangkat tampilan/suara | 320Layar LCD grafis beresolusi ×240
Pass/Fail LED Red/Green indicator/screen display/Sound |
| Ukur kontaknya | 64 Independent measuring contact
128 Independent Measuring contact (Opsional) 256 Independent measuring contact Koreksi tegangan tinggi keluaran positif dan negatif Temukan terminal secara otomatis Grup tombol Sistem/Cepat/Edit/Fungsi |
| Control panel interface | Grup tombol Sistem/Cepat/Edit/Fungsi

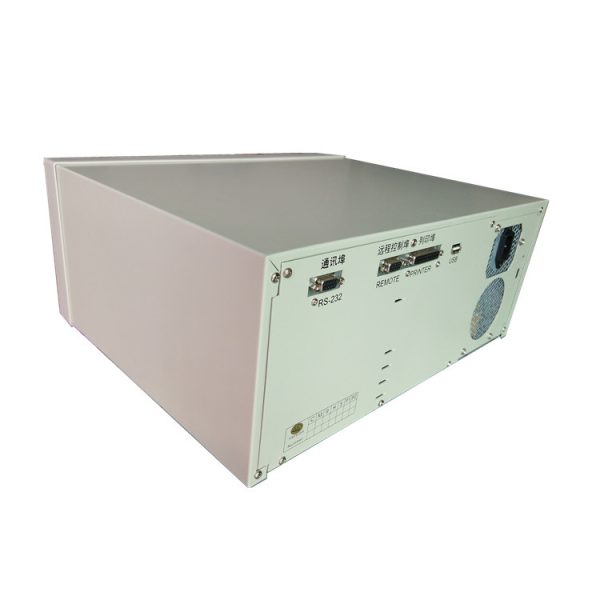

Port komunikasi RS-232 Pelabuhan pencetak Pelabuhan kendali jarak jauh |
| Perangkat memori | Flash memory
56 sets of test Settings files |
| Sumber Daya listrik
lampiran |
115/230 Masukan tegangan Vac ±10%
60/50 Hz Temukan probe secara otomatis Horn fixture plate four wire to two wire fixture plate Garis perlengkapan Kabel listrik Panduan pengguna |
|
Suhu dan kelembaban |
15°C~35°C
Relative humidity RH≦75% |
| Ukuran (W x H x D)
berat Persyaratan spesifikasi kawat |
425×190×350 mm
Approx. 15kg (tanpa aksesoris) Up to 1μF |
