Keterangan
cable tester
| Characteristic specification | ||
| Maks. 1000V test voltage | Test screen more affinity, convenient quality control with line sampling | |
| The on-resistance can be measured to 500Ω | Single point test is performed simultaneously | |
| It is more accurate to determine the split side of the short circuit | The speed of insulation testing has been greatly improved | |
| Can be used for wire single side test/insulation test | The system provides statistics and printing functions | |
| Test item | ||
| barang | simbol | Rentang pengukuran |
| Putus/korsleting | HAI/S | 2KΩ~50KΩ
|
| Instant short break test | 2KΩ~50KΩ
|
|
| Penilaian titik akhir hubung singkat | ||
| Conduction test | KOND | Max.50.0Ω
|
| Intermittent Cond. | Max.50.0Ω
|
|
| Resistance test | R | Max.1MΩ
|
| Capacitance test | C | 10pF~1uF
|
| Tes dioda | D | 0-7V
|
| Resistensi isolasi | DAN | 1MΩ~1000MΩ
|
| Unilateral test. Point test. Sequential testing | ||
| High voltage test (limited to 8683FA model) | Hipot | Max.5mA |
cable tester
| CT-8683．Technical specification | |
| Fungsi lanjutan
Akurasi dasar Mode pemindaian uji |
Pengujian berkelanjutan yang dapat diprogram Automatic spot finding diagnosis diri Mengoreksi diri ke nol 0.1 SEC base value |
| Measure frequency and signal
Dc high voltage |
200~1000Vdc
100~700Vac Ketepatan: ±5% |
| Perangkat tampilan/suara | 320Layar LCD grafis beresolusi ×240
6-digit digit display number Pass/Fail LED Red/Green indicator/screen display/Sound |
| Ukur kontaknya | 128 Ukur kontaknya
256 kontak tersedia High voltage correction output (+/-) Temukan terminal secara otomatis |
| Panel kendali
antarmuka |
Grup tombol Sistem/Cepat/Edit/Fungsi

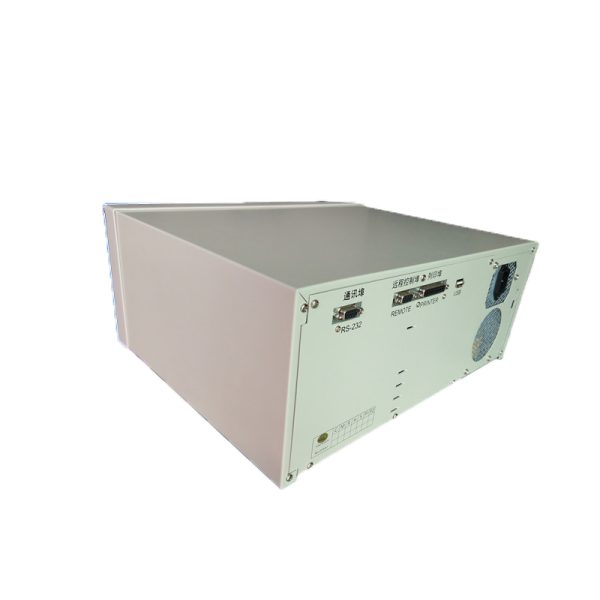

Port komunikasi RS-232 Pelabuhan pencetak Pelabuhan kendali jarak jauh |
| Perangkat memori | Flash memory
Hingga 62 sets of test Settings files can be stored |
| Sumber Daya listrik
lampiran |
115/230 Masukan tegangan Vac ±10%
60/50 Hz Temukan probe secara otomatis Horn fixture plate Garis perlengkapan Kabel listrik Panduan pengguna |
| Suhu dan kelembaban | 15ºC~35ºC
Relative humidity RH≦75% |
| Ukuran (W x H x D)
berat Persyaratan spesifikasi kawat |
425×190×350 mm
Approx. 14kg (tanpa aksesoris) Up to 1µF |
| Ordering information CT-8683FA CT-8683F /C2 |
200~1000Vdc, 100~700Vac, 200~1000Vdc R:1 Mω, DAN:1 Mω to 1000 Mω Pilih 256 poin tes Horn fixture plate Garis perlengkapan (30cm) Check fixture set |
