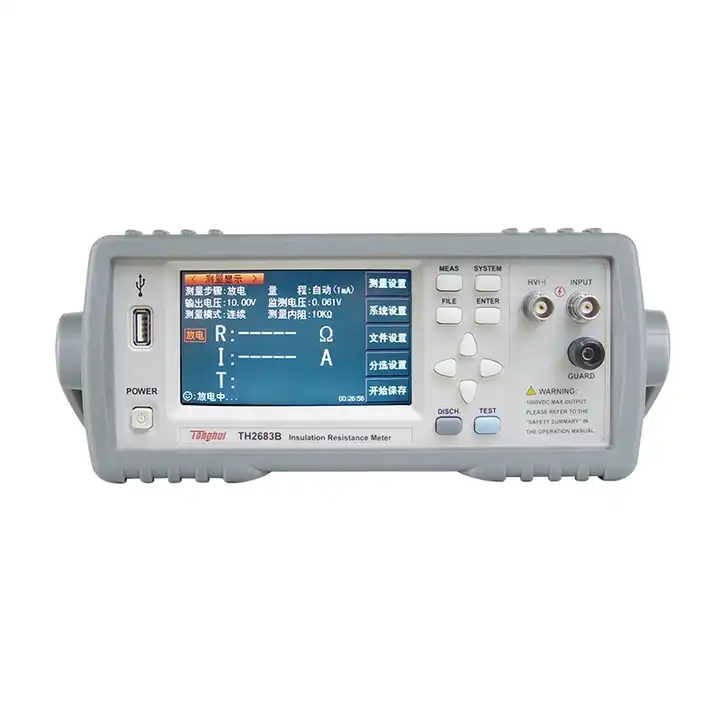

Tonghui TH2683A Mega Ohm Meter
- Keterangan
- Pertanyaan
Keterangan
Mega Ohm Meter
| Model | TH2683A | TH2683B |
| Resistance Test | ||
| Test Range | 100kΩ – 10TΩ | 100kΩ – 5TΩ |
| Test Accuracy | SAYA>10nA: ±2%, I≤10nA: ±5% | |
| Current Test | ||
| Test Range | Range1: 100kamu – 1mA, input internal resistance: 10kΩ,
Range2: 10kamu – 100kamu, input internal resistance: 10kΩ, Range3: 1kamu – 10kamu, input internal resistance: 10kΩ, Range4: 100nA – 1kamu, input internal resistance: 10kΩ, Range5: 10nA – 100nA, input internal resistance: 1MΩ, Range6: 1nA – 10nA, input internal resistance: 1MΩ. |
|
| Test Accuracy | ±2%+3pA | |
| Voltage Test | ||
| Jangkauan | 1V – 1000V | 1V – 500V |
| Ketepatan | Voltage≥10V: ±1%+1V,
Tegangan<10V: ±10%+0.1V. |
|
| Current Limit | 10mA | |
| Switch | Turn it on or off manually on the front panel, or through the built-in timer control or remote control. | |
| Charging Time | 0~999s, programmable. | |
| Test Delay | 0~999s, programmable. | |
| Kecepatan tes | Cepat: ≤30ms, Lambat: ≤60ms. | |
| Fungsi Komparator | 4 bins: 3-bin pass, 1 bin fail. | |
| Range Mode | Mobil, Memegang. | |
| Penyimpanan | Internal storage, USB. | |
| Standard Interface | RS232C, USB HOST, USB DEVICE, Pawang. | |
| General Technical Parameter | ||
| Working Humidity | 10℃~40℃,≤90%RH | |
| Power Requirement | 90~121V AC (60Hz) or 198~242V AC (50Hz) | |
| Kekuatan | <50VA | |
| Volume | 235mmX104mmX360mm | |
| Berat | 3.6kg | |
