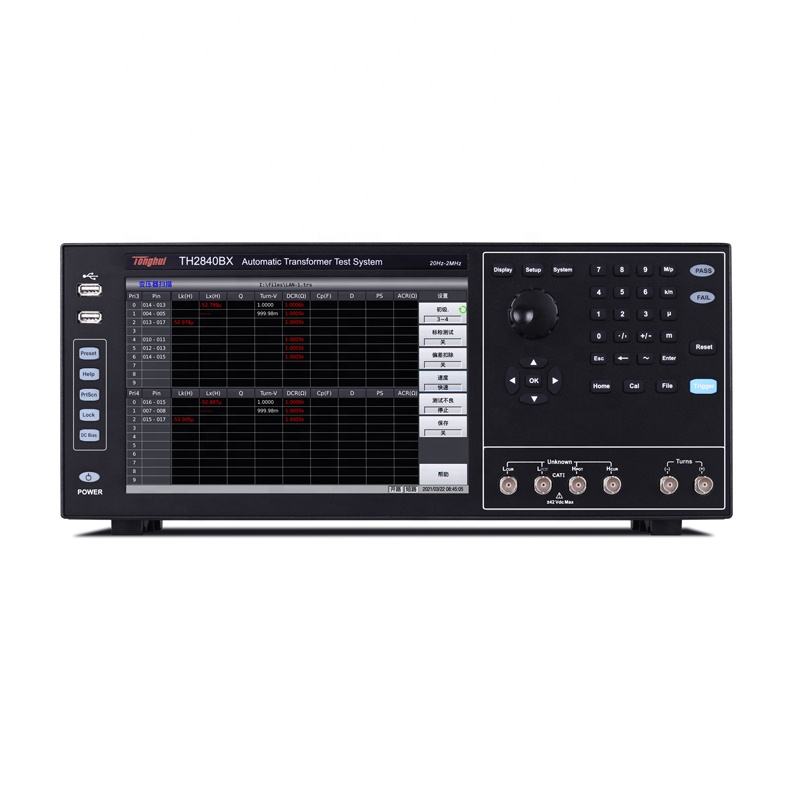

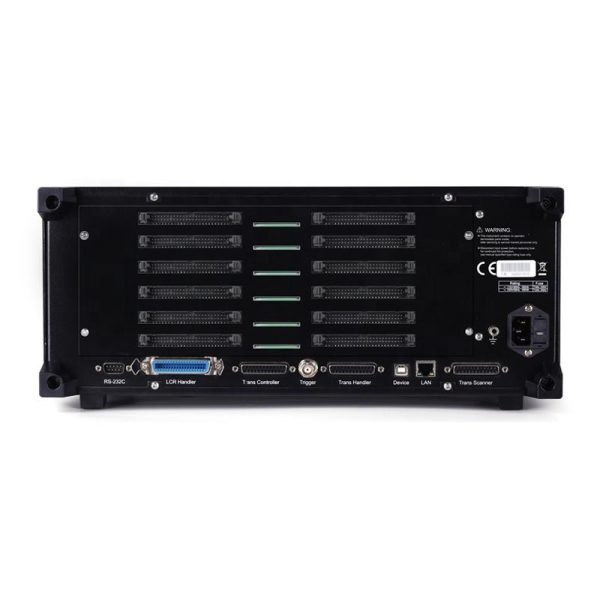

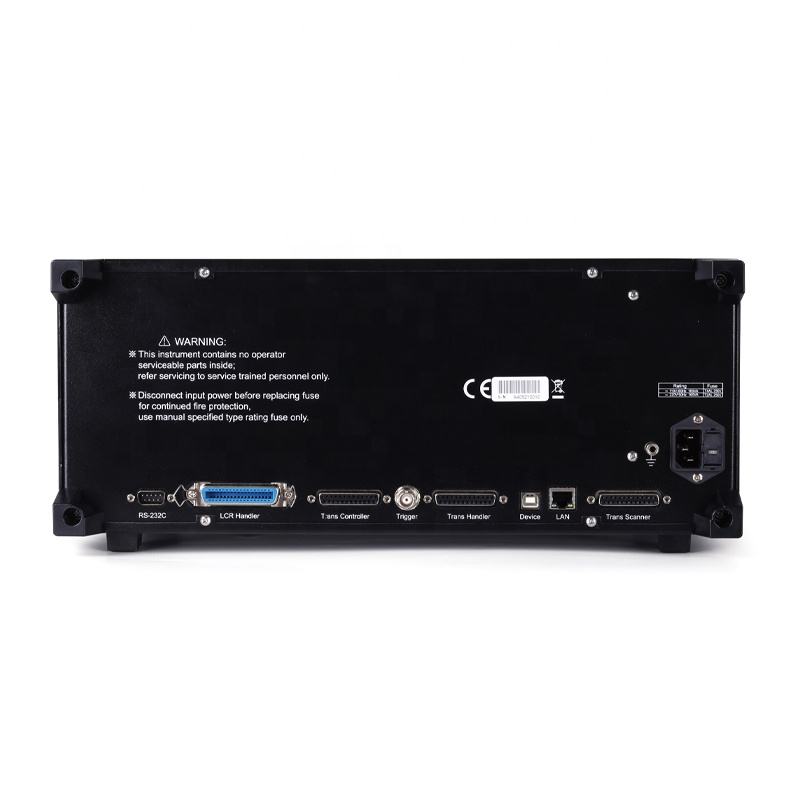

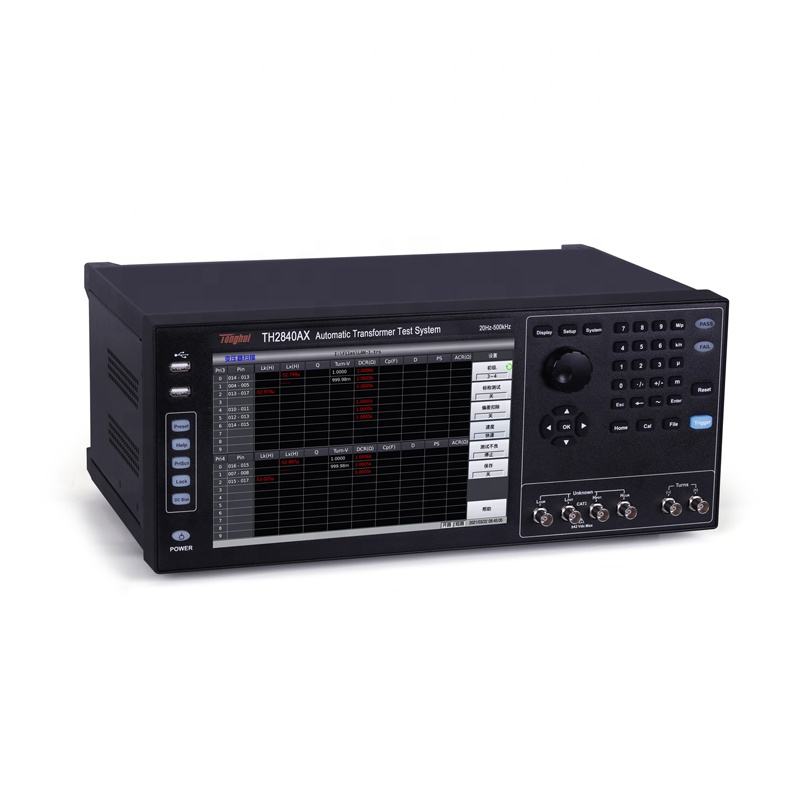

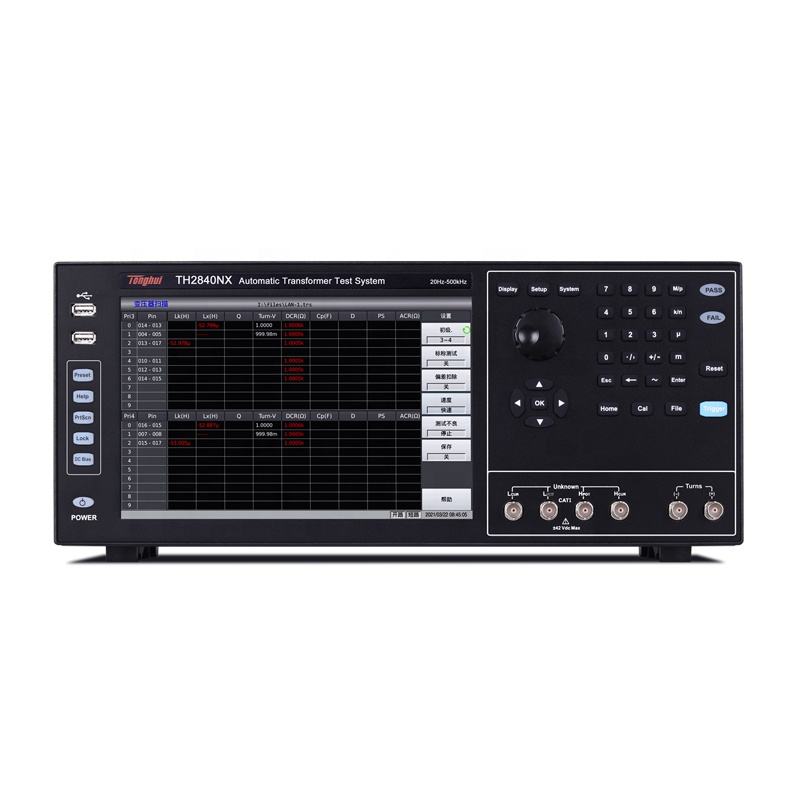

Tonghui TH2840AX Automatic Transformer Test System TH2840BX TH2840NX

Tonghui TH2840A Capacitance Meter
PFM-1200 Magnetic Field Generator PFM-1200 Magnetic Field Generator

Kategorya:

Paglalarawan

Transformer Test System

Mga Tampok

The test speed is as high as 1800 times/s (>10mga kHz), without relay action time

Test level up to 20Vrms

The bias voltage is built-in ±40V/±100mA/2A

Hanggang sa 288 test pins (only TH2840NX)

Industry-friendly user experience: Linux bottom layer, built-in help file

10.1 inch 1280×800 capacitive touch screen

Graphical pin association setting page, so that wiring is no longer a problem

Lk setting does not need to input the leakage inductance pin, which is more intuitive

Enhanced balance scanning function, mula sa 5 points to 10 mga puntos

Range switching adopts electronic switch, mabilis na bilis, mahabang buhay, no noise

Optional LCR function

Approximately 100M setting file storage space in the machine, and massive U disk setting file storage capacity

Provide host computer to support early model file format conversion to ensure compatibility



Transformer Test System

Applications

Switching transformer scanning test, comprehensive characteristics analysis.

Network transformer scanning test, comprehensive characteristics analysis

Discrete passive components (L, R, C) multi-channel scanning test

Relay drive line package, contact resistance multi-channel scanning test

Multi-channel DC resistance DCR scanning test

Comprehensive test analysis of multiple passive components in impedance network

Mga pagtutukoy

Modelo TH2840AX TH2840BX TH2840NX
Display Display 10.1″ Captive Touch Screen
Ratio 16:09
Resolusyon 1280×RGB×800
Test PIN 20PIN(By TH1806) 48PIN(Can extend to 288PIN)
Dalas Saklaw 20Hz-500kHz 20Hz-2MHz 20Hz-500kHz
Katumpakan 0.01%
Resolusyon 0.1mHz (20.0000Hz-99.9999Hz)
1mHz (100.000Hz-999.999Hz)
10mHz (1.00000kHz-9.99999kHz)
100mHz (10.0000kHz-99.9999kHz)
1Hz (100.000kHz-999.999kHz )
10Hz (1.00000MHz-2.00000MHz)
