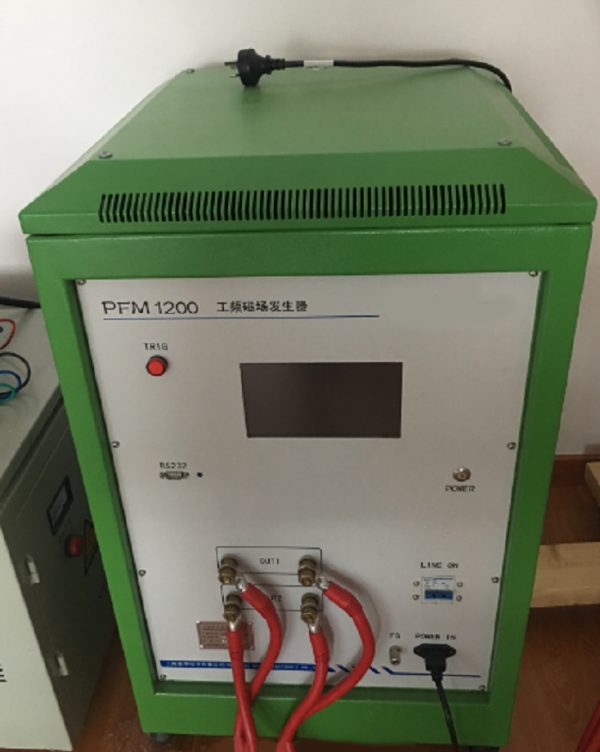

PFM-1200 Magnetic Field Generator
Paglalarawan ng Produkto
Power frequency magnetic field is generated by the power current in the conductor, o (very little) by the attachment of other devices (such as the transformer leakage flux).Power frequency magnetic field may affect the reliable operation of equipment and systems. The power frequency magnetic field generator mainly simulates the magnetic field environment of residential, commercial, industrial, mining enterprises and power plants, as well as medium and high substations. It is used to evaluate the performance of household, commercial, industrial electrical and electronic equipment under the frequency field (continuous or short) magnetic field. Product can fully meet IEC 61000-4-8 latest standard.
PFM-1200 Magnetic Field Generator
Mga Tampok
* Fully Compliant with latest Standard IEC 61000-4-8
* User friendly na 7 "Touch Panel Display
* Suportahan ang maraming wika & mapadali ang mga gumagamit
* Built in na kapaligiran self test program
* Programmable na operasyon
* RS 232 interface, PC control operasyon
* User friendly na 7 "Touch Panel Display
* Suportahan ang maraming wika & mapadali ang mga gumagamit
* Built in na kapaligiran self test program
* Programmable na operasyon
* RS 232 interface, PC control operasyon
PFM-1200 Magnetic Field Generator
Teknikal na Data
|
Modelo
|
PFM 1200
|
|
Magnetic field strength
|
0A/m~1200A/m (continuously adjustable)
|
|
Current waveform
|
50/60Hz, sine wave
|
|
Interval
|
1~ 9999s
|
|
Current distortion rate
|
<5%
|
|
Working mode
|
Current range during continuous work: 1A~500A,1~9999s
|
|
Current range during short working time: 500A~1200A,1~5s
|
|
|
Mode ng pagpapatakbo
|
Auto, manu
|
|
Suplay ng kuryente
|
AC220V 50 / 60Hz
|
|
Environment temperature
|
15 ℃ ~35 ℃
|
