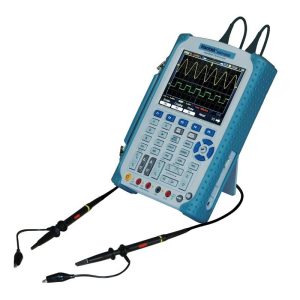

DSO1202S Isolated Handheld Oscilloscope

UTD2202CM Digital Oscilloscope Presyo
SDS1204X-E Super Phosphor Oscilloscope

Kategorya:

Paglalarawan

Modelo DSO1202S DSO1152S DSO1122S DSO1062S
Bandwidth 200MHz 150MHz 120MHz 60MHz
Channel 2
Real-Sample Rate 1GSa/s
Equivalent Sample Rate 25GSa/s
Record Length 1M
Rish time ≤1.7ns/≤2.3ns/≤2.9ns/≤5.8ns
Timebase Accuracy ±50ppm
Time Base Range 2ns/div-2000s/div 2ns/div-2000s/div 2ns/div-2000s/div 4ns/div-2000s/div
Video Help —
SD Card —
Input Impendence 1MΩ
VOLTS/DIV Range 2mV/div~5V/div
A/D Converter 8bit na bit
Position Range ±50V(5V/div), ±40V(2V/div~500mV/div),
±2V(200mV/div~50mV/div), ±400mV(20mV/div~2mV/div).
DC Gain Accuracy ±3% for Normal or Average acquisition mode, 5V/div to 10mV/div;
±4% for Normal or Average acquisition mode, 5mV/div to 2mV/div.
Bandwidth Limit 20MHz
Trigger Types Edge, Video, Pulse, Slope, Over time, Alternative
Trigger Source CH1, CH2
Math +,-,x,÷,FFT
Cursor Measurement Voltage difference between cursors: V;
Time difference between cursors: T;
Reciprocal of T in Hertz (1/ΔT);
Auto Measuerment Dalas, Period, Mean, Pk-Pk, Cycli RMS, Minimum, Maximum, Rise time, Fall Time, +Lapad ng Pulse, -Lapad ng Pulse, Delay1-2Rise, Delay1-2Fall, +Duty, -Duty, Vbase, Vtop, Vmid, Vamp, Overshoot, Preshoot, Preiod Mean, Preiod RMS, FOVShoot, RPREShoot, BWIDTH, FRF, FFR, LRR, LRF, LFR, LFF
The float voltage between BNC and Ground 600V CATIII, 1000V CAT II
The float voltage between each Channel 600V CATIII, 1000V CAT II
The float voltage between Multimeter and Ground 1000V
between input Ports directly 400V CAT II
Input by 10:1 probe 600V CATIII, 1000V CAT II
DMM Max. Resolusyon 6,000 Counts
Testing Modes Boltahe, Kasalukuyang, Paglaban, Capacitance, Diode & Continuity
Max. Input Voltage AC: 600V, DC: 800V
Max. Input Current AC:10A , DC: 10A
Max. Input Impandance 10MΩ
Display 5.6″ TFT 16K Color Display, 640*480 dots
Sukat 245mm x 163mm x 52mm
Timbang 1.3KG(Without Package)
Standard Probe PP200Bx2 P7150x2 P7150x2 P7060x2
