Sự miêu tả
BGD 125 Cúp Ford
Sự miêu tả

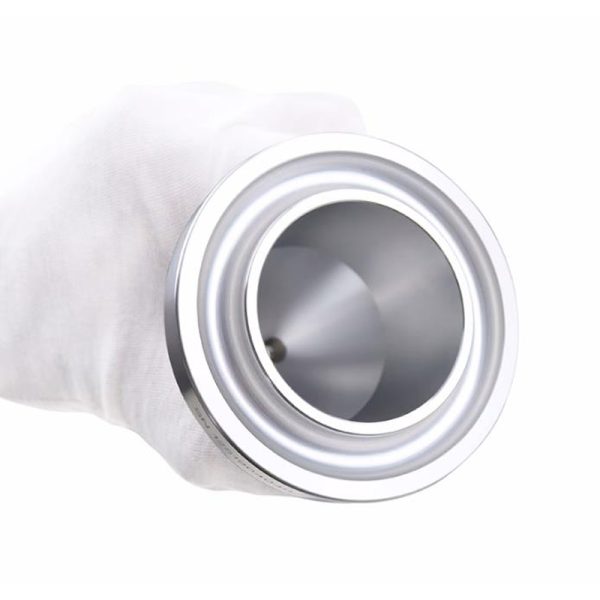

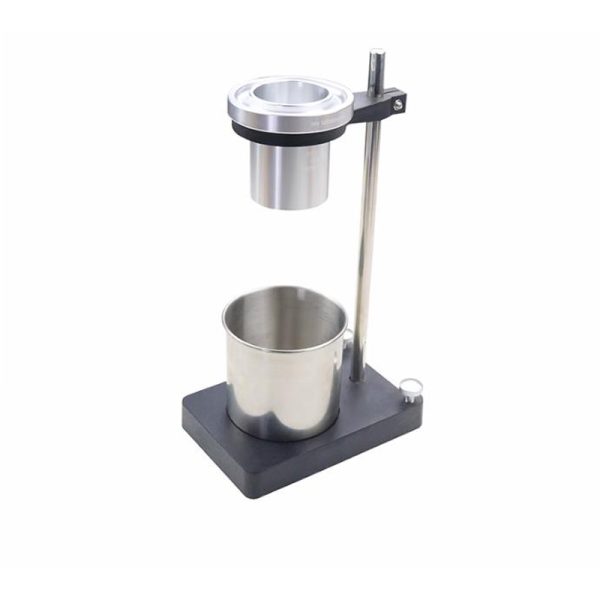

Ford cups are made according to ASTM D 1200, D333, D365, the American Society for Testing Materials Standards for paints and raw materials. They are used to determine the viscosity of inks, lớp phủ, and paints. It is made of a high-quality aluminum cup with a small hole at the bottom and a capacity of about 100ml The Ford cup evaluates the viscosity of a material by measuring the time it takes for a certain volume of material in the aluminum cup to flow out of a small hole at the bottom. It is widely used in some countries in Europe and North America.
| Material quality | Thân cốc – hợp kim nhôm; Outlet nozzle – Stainless steel |
| capacity | 100 ml |
| Cup diameter | 50+.05mm; Cup outer diameter: 86+0.1mm |
| Length of outflow hole | 10±0.1mm |
| Tên | Outflow aperture | Time of outflow | Phạm vi đo lường |
| KHÔNG. 2 Cúp Ford | 2.53mm | 40-100 giây | 25-120cSt |
| KHÔNG. 3 Cúp Ford | 3.40mm | 25-105 giây | 49-220cSt |
| KHÔNG. 4 Cúp Ford | 4.12mm | 20-105 giây | 70-370cSt |
| KHÔNG. 4P Ford Cup | 4.12mm | 20-105 giây | 70-370cSt |
| KHÔNG. 5 Cúp Ford | 4.12mm | 20-105 giây | 215-1413cSt |
Thông tin về đặt hàng
| BGD 125/2 | KHÔNG. 2 Cúp Ford |
| BGD 125/3 | KHÔNG. 3 Cúp Ford |
| BGD 125/4 | KHÔNG. 4 Cúp Ford |
| BGD 125/4P | Portable Size 4 Cúp Ford |
| BGD 125/5 | Kích cỡ 5 Cúp Ford |
