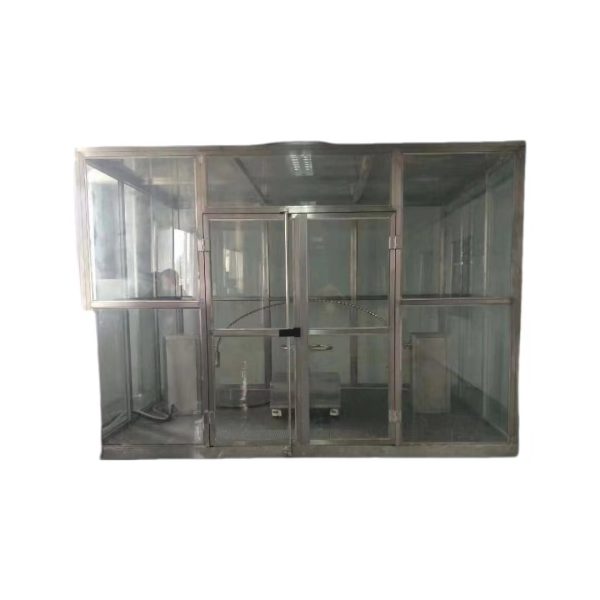

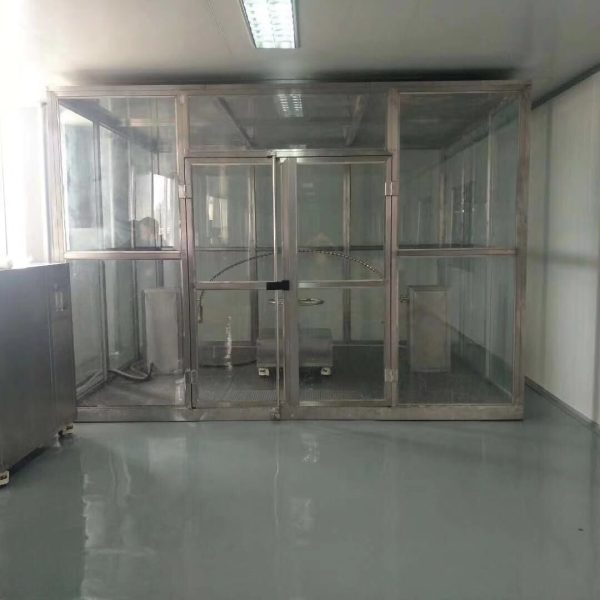

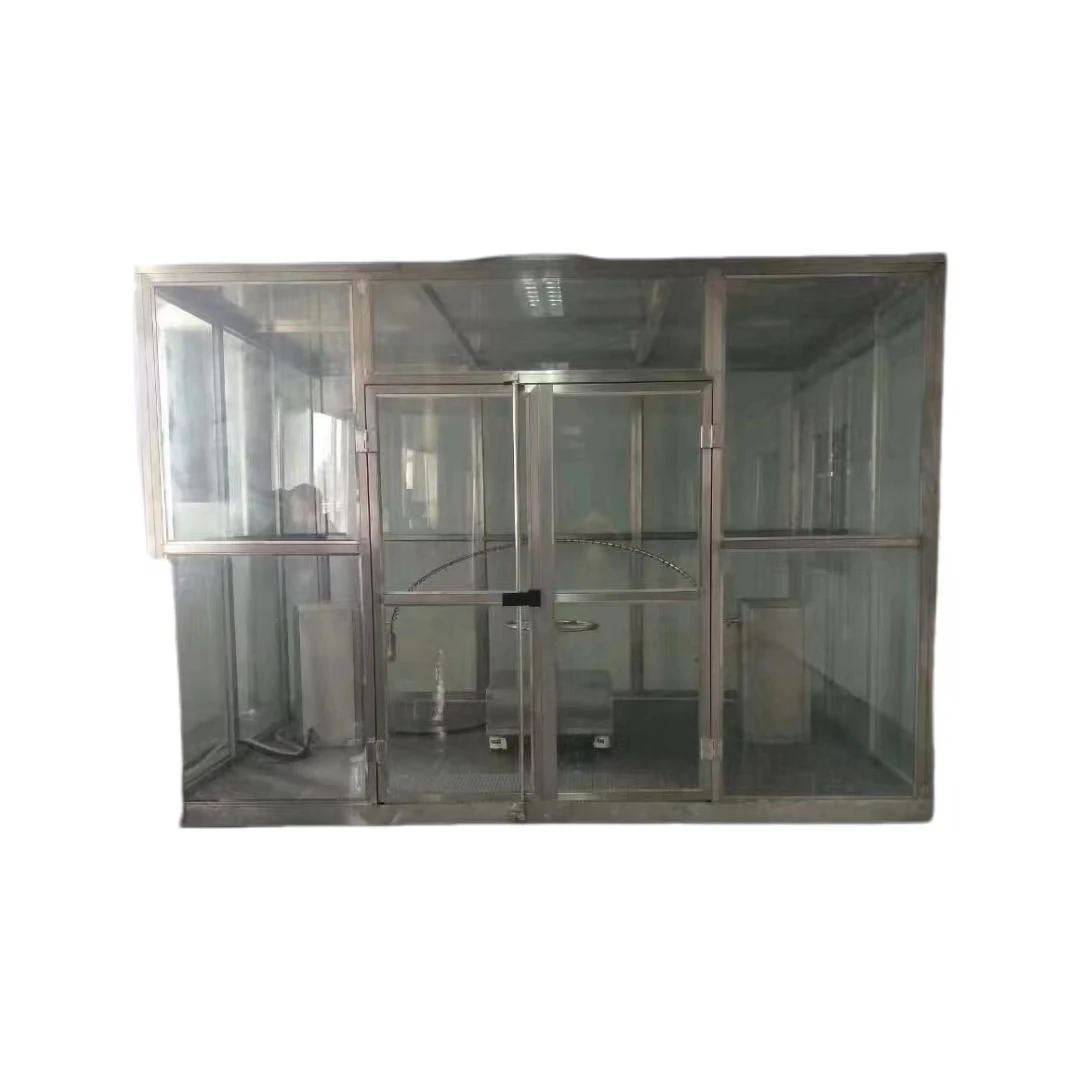

Charging pile rain test chamber
The laboratory is composed of a test bench, a storage tank (provided by the customer), a control box and a spray system. Design principle: Install an IP34 flower wine on all four sides of the sample, the flower wine is sprayed at 200mm away from the sample, the shower can automatically swing up and down, the shower Angle can be automatically or manually adjusted (customer choice).
Charging pile rain test chamber
| Room size | D 4.5x W 4.5x H 3.5 ม(customer provided) |
| Number of showers | 4 |
| Shower size | 0.5มม |
| Number of shower holes | 121 |
| The Angle of 96 holes in the outer four rings is 15°, the middle hole is 1, and the Angle of 24 holes in the inner two rings is 30° | |
| Nozzle spherical diameter | ส75.5มม |
| Sprinkler material | สแตนเลส |
| Handle and valve material | 304 สแตนเลส |
| Pressure gauge | 0-0.6MPa |
| Nozzle baffle | วัสดุสแตนเลส |
| เวลาทดสอบ | 0-30 minutes or more can be set on the touch screen. |
| Water spray pressure | 80-150KPA adjustable |
| Frame material | Coated aluminum alloy profile, 40X80mm thick 2mm |
| ระยะสเปรย์ | 200มม |
| The shower can reach up to 2.8 เมตร | |
| Water tank | |
| Inner box size | 800มม, ความสูง: 1000มม |
| Box material | 304 สแตนเลส, ความหนา 2 มม |
| Water level | transparent hose, accompanied by stainless steel ruler to observe the water level, scale 1m |
| Water tank water level contro | stainless steel float, overflow hole coordination |
| ระบบควบคุม | |
| Touch screen, PLC and step closed-loop control system | |
| pump flow control | manual valve |
| water flow | Wanda flow regulator |
| หน้าจอสัมผัส | Chint 7 นิ้ว |
| บมจ | Xinjie |
| control function: spray flow, test time setting protection device: vulnerability protection, water shortage protection, overload protection, safety distance protection. | |
| Structural materials and accessories system: | |
| spray hose :10 เมตร | |
| water tank :304 สแตนเลส 5 ชิ้นส่วน | |
| stainless steel square through 20 | |
| electrical control accessories selected Chint, Taiwan Shiyan, Fuji and other international well-known brands | |
| high power pump 2.2KW multiple solenoid valves control the waterway | |
| Touch screen, บมจ, sensor | |
