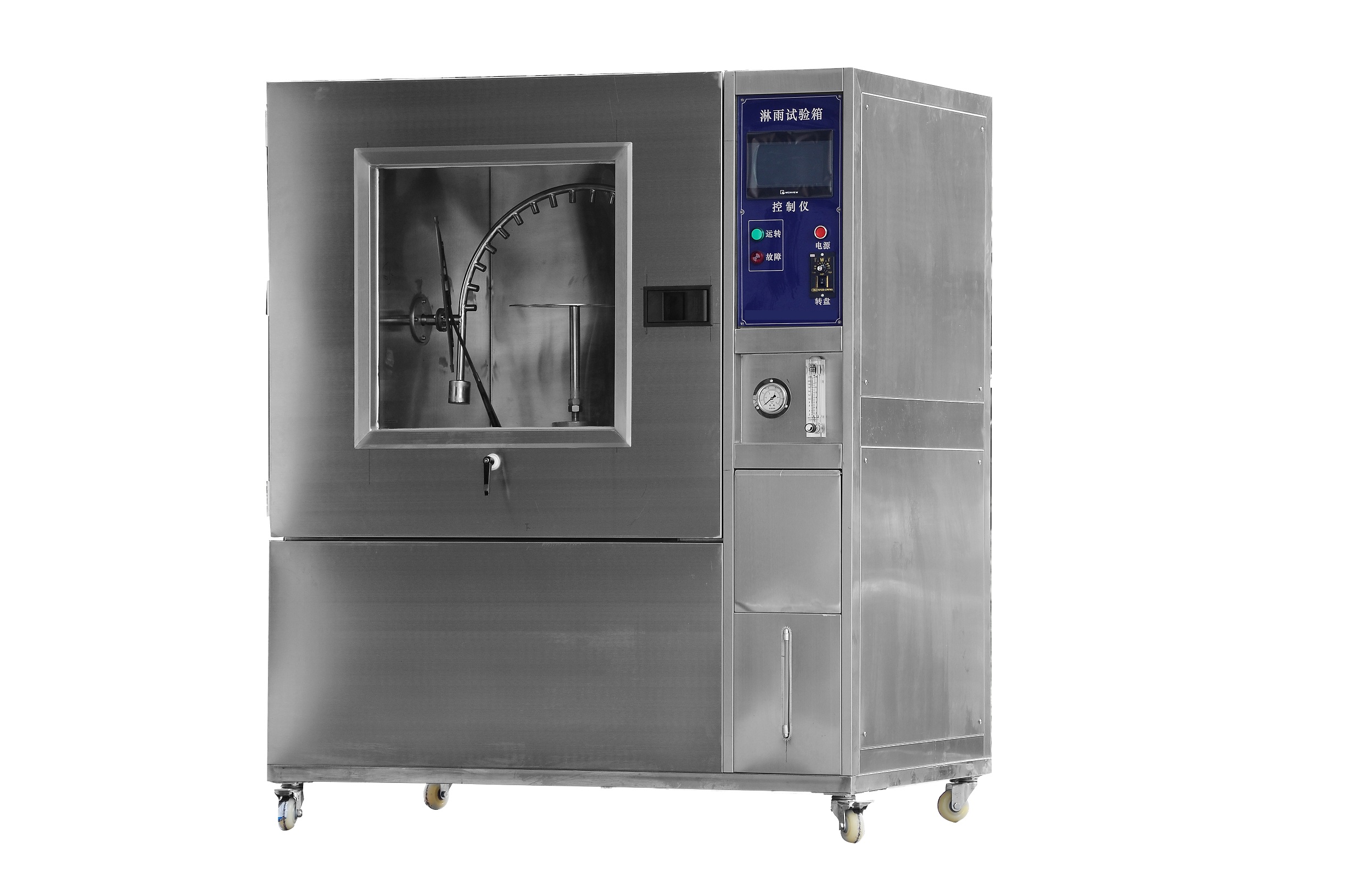

Swing tube rain test chamber
This product is suitable for testing electrical products, enclosures and seals in the rain environment to ensure the good performance of equipment and components. This product uses scientific design, so that the equipment can realistically simulate dripping, dripping, splashing, spraying and other environments. The comprehensive control system and the adoption of frequency conversion technology make the rotation Angle of the rainfall test rack, the swing Angle of the water spray pendulum rod and the swing frequency of the water spray volume can be automatically adjusted.
IPX34 swing pipe rain test chamber Structure material:
1. The inner liner is stainless 304 เหล็ก
2, outer box stainless steel 304 or spray paint
3, the sample table is equipped with a circular turntable, the speed is adjustable

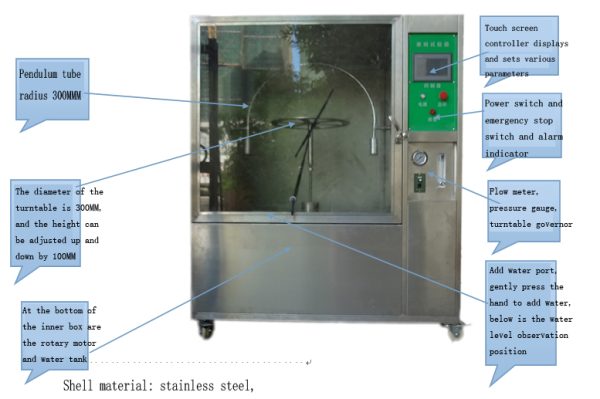

Swing tube rain test chamber
IPX34 swing pipe rain test box safety protection device
1, power overload, short circuit protection
2, grounding protection
3. Water shortage protection
4, alarm warning
| Inner box size (มม) | 800x800x800(depth x width x height) |
| the test bench speed (รอบต่อนาที) | 1~5 adjustable |
| spray ring radius (มม) | 300 |
| spray pipe swing Angle range | :45°, 90°, approximately 180°(สามารถตั้งค่าได้) |
| Blowhole diameter (มม) | Φ0.4 |
| spray aperture spacing (มม) | 50 |
| Flow rate of each blowhole | 0.07L /min +5% |
| water spray pressure (Kpa) | 80-150 |
| pendulum tube swing | สูงสุด. 170° |
| spray pipe swing speed | IP3 15 times /min; IP4 5 times /min |
| เวลาทดสอบ | 1-999,999นาที(ปรับได้) |
| the distance between the test sample and the test equipment is 200mm, after the test, the function test is carried out after the normal temperature is restored for 24H. | |
| the box full stainless steel or powder, visible toughened glass window. | |
| with moderate circular turntable (for sample) speed adjustable | |
| ระบบควบคุม: touch screen control system independently developed by Teelong Company. | |
| Power supply 220V 50Hz, พลัง | 3500ว |
| implementation standards | GB2423,38-90, GB4706.32-2004 1EC-5129 |
IPX34 Swing pipe rain test chamber material list:
| name | หน่วย | Brand and origin | quantity | remark |
| Control instrument | ก | Kunlun Tongtai | 1 | |
| Ac contactor | ก | Chint | 1 | |
| Intermediate relay | ก | Taiwan scholar | 1 | |
| Solid-state relay | ก | Yangming, Taiwan | 1 | |
| Time relay | ก | Taiwan scholar | 1 | |
| sensor | ก | Yangming, Taiwan | 1 | |
| Stainless steel with light button | ก | Shanghai Hongbo | 1 | |
| ฟิวส์ | ก | Chint | 1 | |
| Mains switch | ก | Chint | 1 | |
| Water pump | ก | Lingxiao stainless steel pump | 1 |
