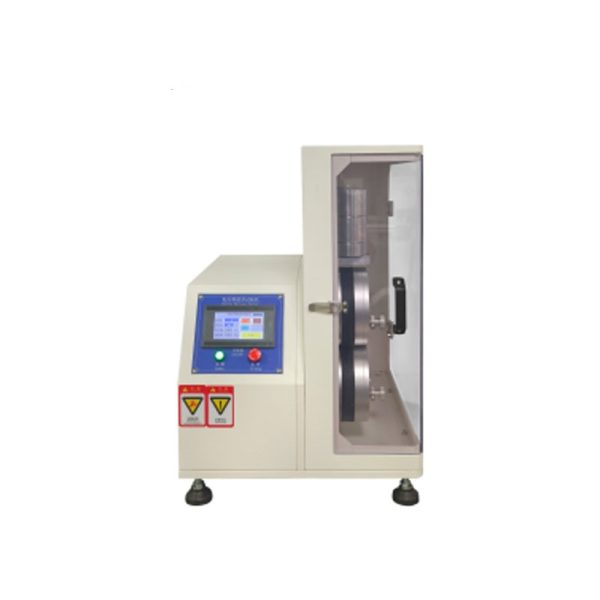

Velcro fatigue testing machine ISO 22777 ИСО 22776 ОТ 3415 SATRA TM 123
Имя:Velcro fatigue testing machine
Модель：DZ-939
International Standard: ИСО 22777
ИСО 22776
ОТ 3415
SATRA TM 123
- Описание
- Расследование
Описание
Velcro fatigue testing machine ISO 22777 ИСО 22776 ОТ 3415 SATRA TM 123
1.Описание продукта
This machine is used to repeatedly peel and fit Velcro (Hook and Loop). After a certain number of times, the test piece is cut into 75*200mm, and then the weight of the roller itself is used to press the test piece to make it fit evenly. Затем, the peel tester purchased separately is used to measure the adhesion AS and adhesion strength PA.
Meet the standards: ГБ/Т 3903.20, ГБ/Т 3903.21, ГБ/Т 23315, ИСО 22777, ИСО 22776, ОТ 3415, SATRA TM 123
Velcro fatigue testing machine ISO 22777 ИСО 22776 ОТ 3415 SATRA TM 123
2. Технические характеристики
| Large roller diameter | 162.5±0,5 мм |
| Small roller diameter | 160.0±0,5 мм |
| Roller width | 80мм |
| Roller speed | 60±5 rpm |
| Steering switching time | 30 секунды |
| Прилавок | LCD 8-bit liquid crystal display |
| Объем | 44×52×70cm |
| Масса | about 45kg |
| Источник питания | AC～220V 50HZ |
