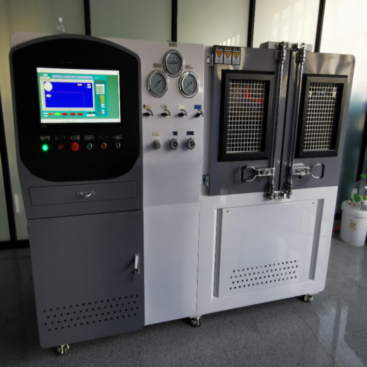

Gas Pulse Fatigue Tester GA-Y111
The gas pulse tester is used to test the gas pressure fatigue resistance of pipes, hoses, клапаны, and other products.
- Описание
- Расследование
Описание
я. Приложение:
The gas pulse tester is used to test the gas pressure fatigue resistance of pipes, hoses, клапаны, and other products. It can perform high-temperature gas pulse fatigue testing and can control the ambient temperature. It simulates pulse fatigue testing of the test piece under high-pressure gas at a certain ambient temperature.
II. Basic Parameters
1. Test Medium: Compressed air or other gases
2. Test Pressure: 0-0.8 MPa (регулируемый)
3. Pressure Control Accuracy: 0.01 MPa (depending on the range)
4. Gas Pulse Frequency: 5-20 раз/мин (регулируемый)
5. Gas Pressure Waveform: Basic square wave (or trapezoidal wave), pulse width adjustment can be customized to your company’s requirements
6. Test Medium Temperature: Room temperature to 260°C (customer-specified)
7. Частота испытаний: 1 million or more (continuously), for sealing performance testing. No leakage or deformation is allowed.
8. Control Method: Computer-controlled
| Product Name | Air Pressure Pulse Fatigue Tester | |
| Product Model | GA-Y111 | |
| Basic Principle | This machine pressurizes room-temperature compressed air using a heater, releases the pressure using a computer, and then performs pressure-maintained fatigue pulse testing. | |
| Performance Parameters | Test pressure | 0-0.8 MPa (pressure selectable) |
| Pressure control accuracy | Test pressure: +2% of upper limit, -1% of lower limit | |
| Pressure resolution | 0.01 MPa (depending on test range) | |
| Pulse frequency | 5-20 breaths/minute | |
| Test medium | Сжатый воздух | |
| Specimen mounting method | Thread leveling | |
| Structural composition | Heating system, ambient temperature control system, pressure data acquisition and control system | |
| Application range | Hoses, hoses, radiators, engines, radiator parts | |
