Descriere
Megohmmeter

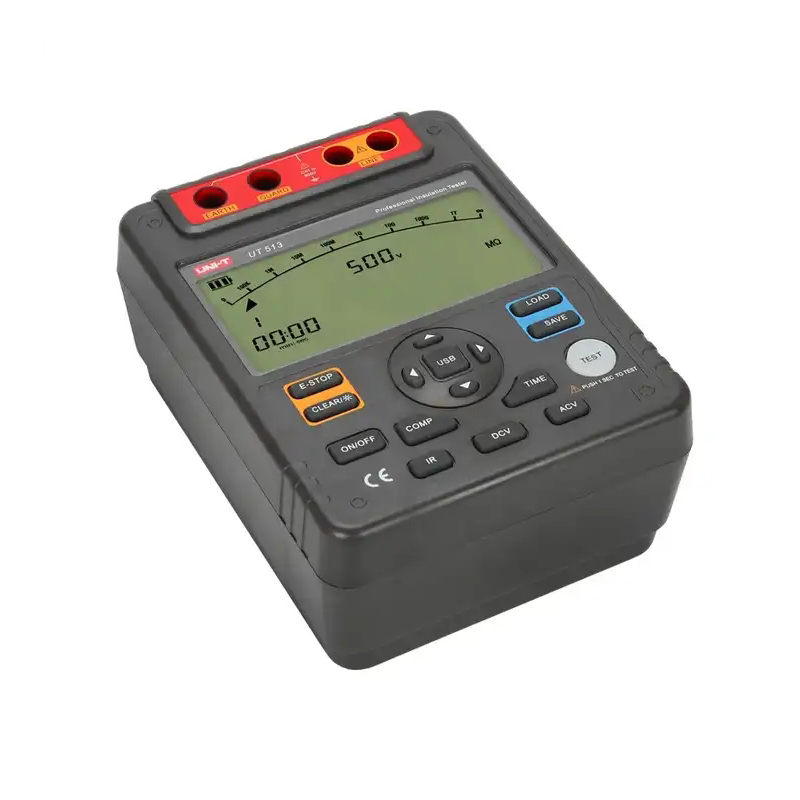

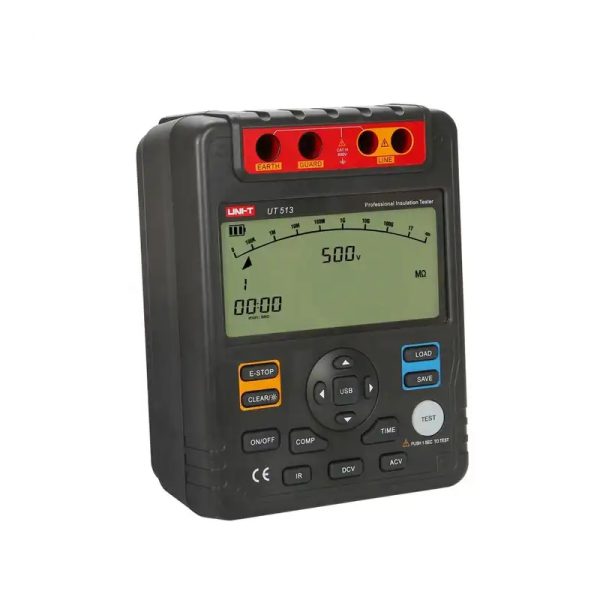

UNI-T UT513 Insulation Resistance Tester Electrical Meter AC DC Voltmeter 5000V Automatic Range Digital Megohmmeter Data Hold
UT510 Series testers measure insulation resistance of large transformers, generators, high voltage motors and more
They can also measure PI, DAR and other important specifications. Measured data can then be analyzed through PC software.UT513 produce test voltage up to 5000V
Megohmmeter
Caracteristici
1. Mare 9999 display with 30-segment analog bar graph
2. PI/DAR measurements
3. Comparison, upper and lower limit functions
4. Continuous measurement mode
5. Auto power off
6. 18-group data storage
7. Backlight
8. Auto current discharge and high-voltage output alarm
9. Power adapter(UT512/UT513)
10. Time measurement mode, auto measure within 15 minute
11. USB interface and PC software(UT512/UT513)
12. Low battery and over range indications
Megohmmeter
Parametru tehnic
| Specificații | Gamă | UT513 | |
| Insulation resistance (Oh) | Test voltages | 500V~5000V | 0%~20% |
| 500V | 0.5MΩ~20GΩ | ±(3%+5) | |
| 1000V | 1MΩ~40GΩ | ±(3%+5) | |
| 2500V | 2.5MΩ~100GΩ | ±(3%+5) | |
| 5000V | 5MΩ~1000GΩ | ±(3%+5) | |
| DC voltage (V) | 600V | ±(2%+3) | |
| AC voltage (V) | 600V | ±(2%+3) | |
| Short-circuit current | <1.8mA | ||
| Caracteristici | |||
| Auto range/Auto power off | √ | ||
| Test voltage secondary display | √ | ||
| Low battery indication | √ | ||
| Stocare a datelor | 18 | ||
| Comparison measurement | √ | ||
| Polarization index (PI) | √ | ||
| Dielectric absorption ratio (DAR) | √ | ||
| interfata USB | √ | ||
| Analog bar graph | 30 | ||
| LCD backlight | √ | ||
| Over-range warning | √ | ||
| High voltage indication | √ | ||
| Timing measurement | Around 15 minute | √ | |
| Meets IEC 61557 | 61557-1:2007; 61557-2:2007 | ||
| General Characterisitics | |||
| Putere | 1.5V battery (LR14) x 8 | ||
| Afişa | 123mm x 58mm | ||
| Product color | Red and grey | ||
| Product net weight | 2kg | ||
| Dimensiunea produsului | 202mm x 155mm x 94mm | ||

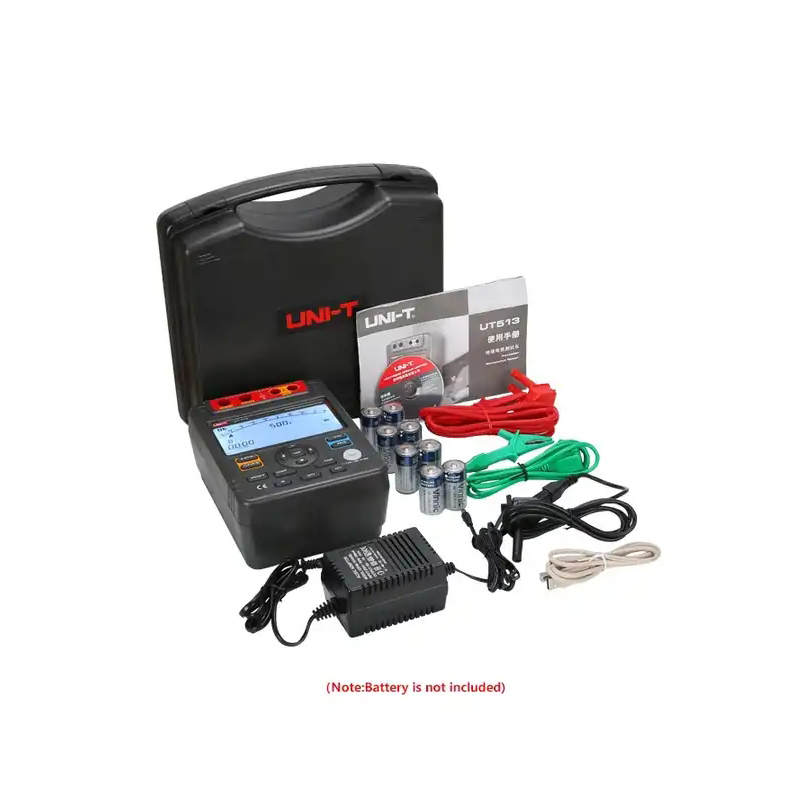

| Standard accessories | 2pcs of one plug test lead to one alligator clip (black and green), 1pcs of two plugs test lead to one alligator clip (red),USB cable, software pentru PC, power adaptor | ||
| Standard individual packing | Gift box, tool box, English manual | ||
