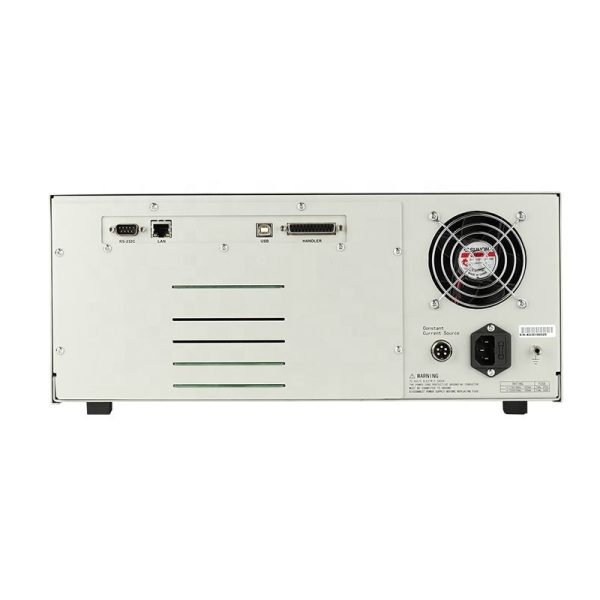

Tester cablaj TH8602-1
- Descriere
- Anchetă
Descriere
Aplicație
Communication and IT
Telephone line, network connection line, multi-strand connection line, mobile phone screen line, TYPEC data line,
USB data cable, laptop screen cable, HDMI cable, VGA cable, IDE hard disk cable, SATA hard disk cable, etc.
Automotive Electronics
ECU cable, car wiring harness, navigation cable, navigation screen cable, car electronic product cable, audio and video cable
ECU cable, car wiring harness, navigation cable, navigation screen cable, car electronic product cable, audio and video cable
Electronics Industry
Flat wire, flat wire, connector, power cord, multiplexer, RS232 connection line,
GPIB cable, USB extension cable, multi-core socket
Components
Flat wire, flat wire, connector, power cord, multiplexer, RS232 connection line,
GPIB cable, USB extension cable, multi-core socket
Components
Passive components: capacitors, inductors, resistors, diodes, capacitor polarity, voltage drop
Safety test
Safety test
AC withstand voltage, DC rezistent la tensiune, izolatie
Caietul de sarcini
| Model | TH8602-1 | TH8602-2 | TH8602-3 | TH8602-4 | |
| Test Pin | 64 | 128 | 192 | 256 | |
| Passive Component | Signal Source | 50Hz — 300kHz, 1Vrms | |||
| Capacitance Test | 1pF — 1000μF | ||||
| DCR | 5mΩ — 10MΩ | ||||
| Conductance/Transient Conduct | 5mΩ — 950Ω | ||||
| DC Withstand Voltage | Voltaj: 5V — 1000V, Actual: 1μA — 11.5mA. | ||||
| AC Withstand Voltage | Voltaj: 50V — 750V, Actual: 0.01mA — 11.5mA. | ||||
| ARC Detection | Nivel 8 | ||||
| Insulation Resistance | Voltaj: 5V — 1000V, Rezistenţă: 1MΩ — 5GΩ. | ||||
| Open/Short Circuit | 1kΩ — 50kΩ | ||||
| Diode Test | Forward voltage drop: 0 — 7.5V, LED lighting time setting, Reverse leakage current. | ||||
| Test Speed | Transient Open/short: 4Domnișoară | ||||
| Transient Open: 5us – 2Domnișoară | |||||
