Descriere

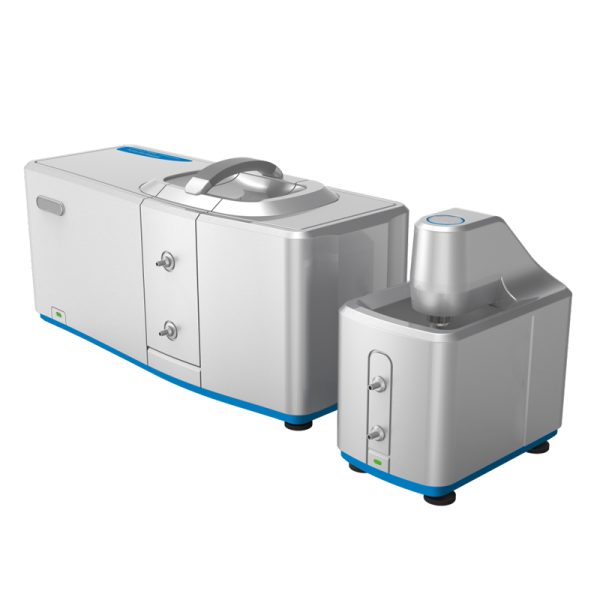

LT-6149 Dimensiunea particulelor materialului bateriei
Caracteristici:
In response to the needs of users in the battery material industry for the detection of battery material particle size and shape, the new generation of LT series laser particle size meter has supported the following technical research results: found the anomalic change of Airy spot (ACAD) rule and its impact on particle size measurement, and solved the interference of ACAD phenomenon on the inversion of light energy data. Original polarization space filtering technology oblique trapezoidal window technology.
The LT3600 series and LT2200 series are a new generation of ultra-high-speed intelligent laser particle size analysis systems based on years of scientific research results and integration of a number of patented technologies, setting a new benchmark for the global laser particle size analysis industry. LT3600 series and LT2200 series particle size analyzer are widely used for particle size characterization analysis in abrasive, farmaceutic, chimic, battery materials, geologie, hydrology and other industries.
LT-6149 Dimensiunea particulelor materialului bateriei
Surgical research results:
(1) The abnormal change of Airy spot (ACAD) and its influence on particle size measurement were found, and the interference of ACAD phenomenon on the inversion of light energy data was solved.
(2) Original polarization space filtering technology
(3) Oblique trapezoidal window technology.
(4) The unified scattered light energy inversion algorithm eliminates the problem that users have to choose inversion modes, and different modes have different results.
(5) Distributed system dual motor drive and continuous monitoring of liquid level.
It provides reliable guarantee and stable data support for the particle size and shape test of battery materials.
LT-6149 Dimensiunea particulelor materialului bateriei
Parametru
| Articol | index |
| Principiul măsurării | laser diffraction |
| optical model | Full range Mistral theory and Fraunhofer theory are optional |
| particle size range | 0.02μm-2200μm，No need to replace lenses, no need to rely on standard calibration |
| detecting system | It includes a grille detector array with large Angle, non-uniform cross area compensation and a high sensitivity backscatter detection unit |
| measuring cell | Parallel slant |
| sursa de lumina | 638nm solid-state laser with integrated thermostatic system, up to 20mW |
| Spatial filtering mode | Non-pinhole polarization filtering technology |
| Optical alignment system | Intelligent fully automatic |
| measuring time | Typical values are less than 10 secunde |
| measuring speed | Până la 20,000 times per second |
| grad de acuratețe | Dv50 better than ±0.6% (NIST-Traceable latex standard) |
| repetabilitate | Dv50 better than ±0.5% (NIST-Traceable latex standard) |
| laser safety | Class 1 laser products |
| computer configuration | Intel i5 processor, 4GB RAM, 250GB hard drive, mouse, keyboard and widescreen display |
| computer interface | USB2.0 or above |
| Software running platform | Windows7 or above Professional Edition |
| operating ambient temperature | 5℃-40℃ |
| Umiditatea ambientală de funcționare | 10%-85% umiditatea relativa (fara condens) |
| power requirement | Ac 220V, 50Hz-60Hz, standard ground |
| Optical system weight | 31kg |
| Optical system size | 670mm x 275mm x 320mm |
