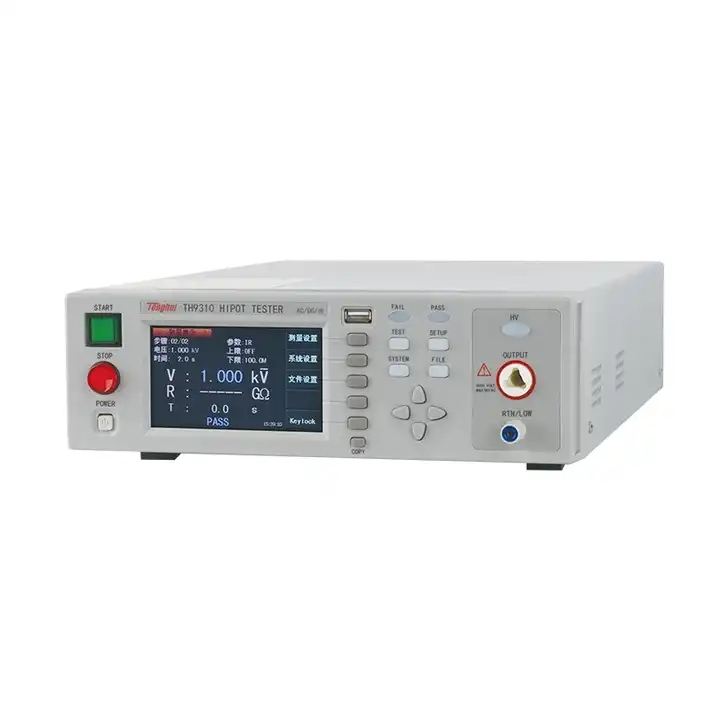

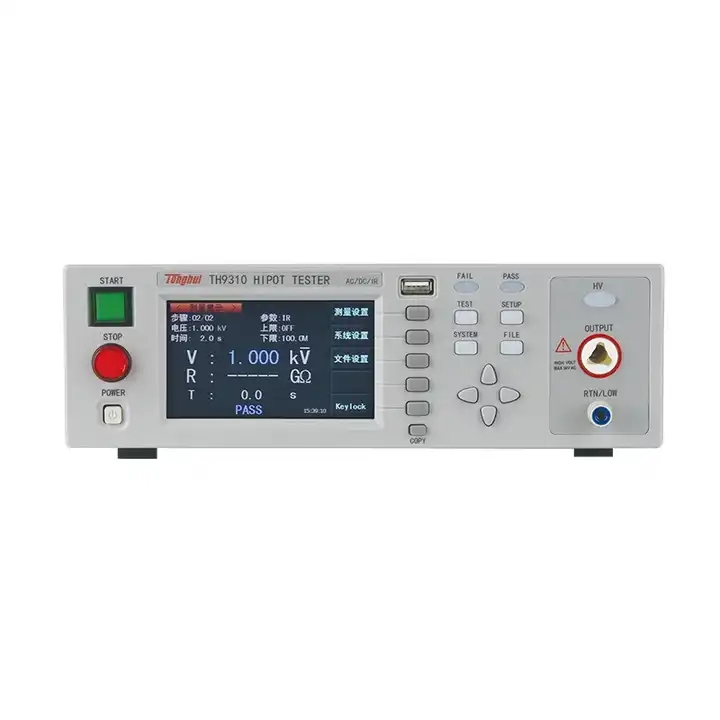

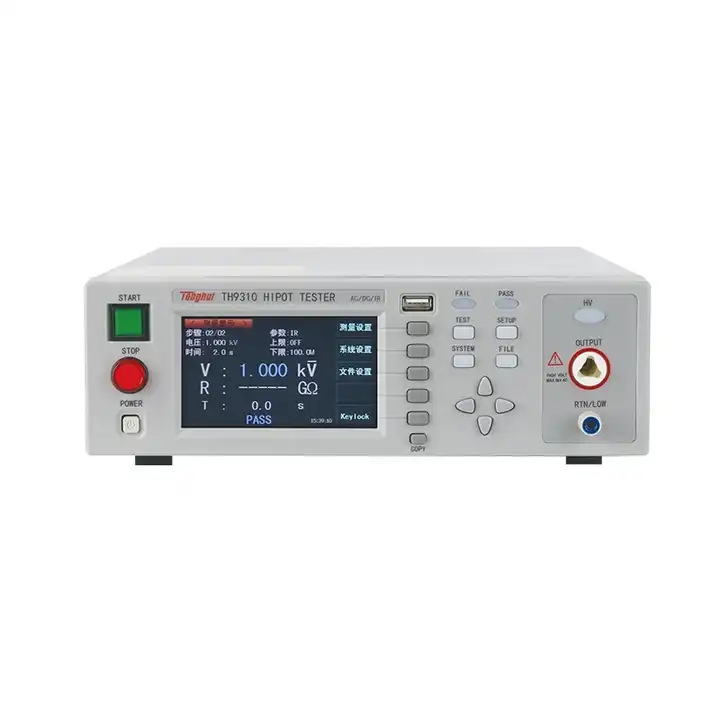

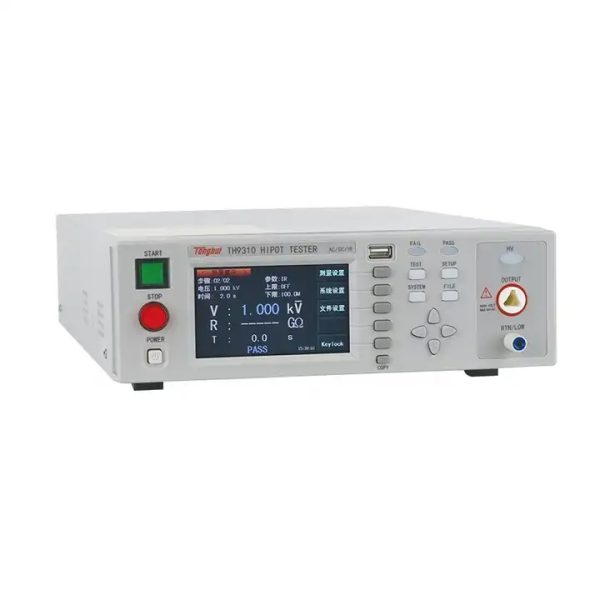

Tonghui TH9320 Hipot Tester
- Description
- Inquiry
Description
Hipot Tester
Features
TH9310 series: AC:5kV/10mA; DC:6kV/5mA AC/ DC withstanding
voltage/insulation resistance tester
TH9320 series: AC:5kV/20mA; DC6kV/10mA AC/ DC withstanding
voltage/insulation resistance tester
TH9310/20:AC/ DC withstanding voltage/insulation resistance tester
TH9310A/20A: AC / DC withstanding voltage tester
TH9310B/20B: AC withstanding voltage tester
480×272 dot-matrix, TFT-LCD display
Rapidly discharging and arc detection
Randomly set voltage rising time and testing time in 999.9 seconds;
Freely set waiting time for insulation resistance
Hold 5 testing steps; 4 testing modes selectable
Brand new operation interface and concise interface operation design
Lock keyboard
PLC interface
Hipot Tester
Technical Parameter
| Model | TH9310/20 | TH9310B | ||
| Withstanding Voltage Test | ||||
| Output Voltage | AC | 0.05 —5.00kV ± (2% reading+5digits), (50Hz,60Hz optional) | ||
| DC | 0.05 —6.00kV ± (2% reading+5digits) | —— | ||
| Voltage Adjustment Rate | ≤ (1% – 5V)(rated power) | |||
| Current TestRange | AC | TH9310:0.000mA – 10.00mA ± (2% reading+2digits)TH9320:0.000mA – 20.00mA ± (2% reading+2digits) | ||
| DC | TH9310:0uA – 5.00mA ± (2% reading+2digits)TH9320:0uA –10.00mA ± (2% reading+2digits) | —— | ||
| Discharge Function | Discharge after test ends(DCW) | |||
| Insulation Resistance Test | ||||
| Output Voltage | 0.10kV – 1.00kV ± (2%reading+2V) | —— | ||
| Resistance Test Range | 1MΩ– 9999MΩ | —— | ||
| Resistance Test Accuracy | 500V-1000V | 1MΩ– 1000MΩ ± (5%reading+2digits)1000MΩ–9999MΩ ± (10%reading+2digits) | —— | |
| 100V-500V | 1MΩ– 1000MΩ ± (10%reading+2digits) | —— | ||
| Discharge Function | Discharge after test ends | —— | ||
| Arc Detection | ||||
| Measurement Range | AC | 1 – 9 levels (factory default 5)(20mA,18mA, 16mA, 14mA, 12mA, 10mA, 7.7mA, 5.5mA, 2.8mA respectively) | ||
| DC | 1 – 9 levels | —— | ||
| General Specification | ||||
| Memory | 5 groups | |||
| Voltage Rising Time | 0.1s – 999.9s | |||
| Test Time Setting(AC/DC) | 0.2s – 999.9s | |||
| Waiting Time(IR) | 0.2s – 999.9s | —— | ||
| Time Accuracy | ±(1%+0.1s) | |||
| Dimension(W×H×D) | 280mm×89mm×428mm/10kg | |||
| Interface | ||||

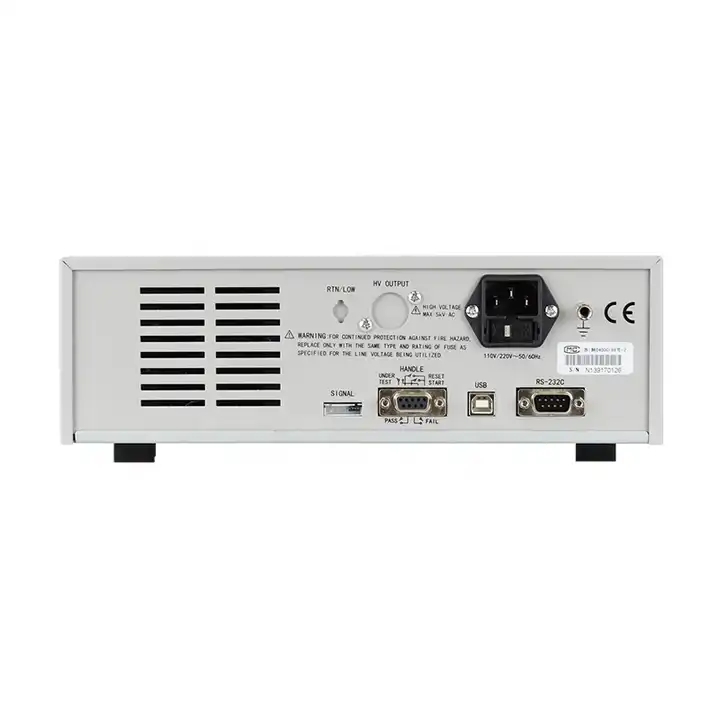

| Standard | HANDLER, RS232, USBDRV(PC interface), USBHOST(USB port) | |||
