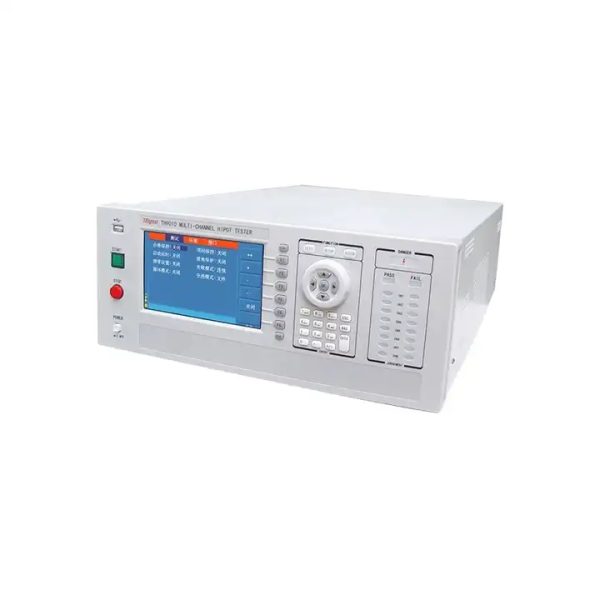

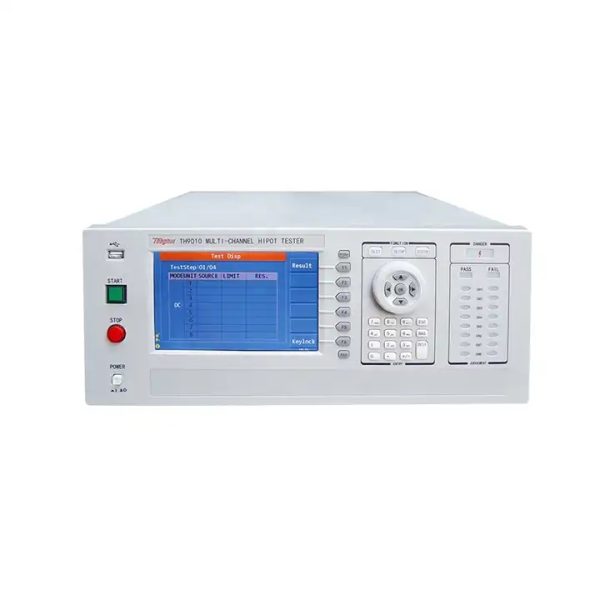

TH9010 TH9010A Withstand Voltage Tester

Description

Withstand Voltage Tester

Features
7-inch 800×480 dot-matrix, TFT-LCD display
Chinese and English operation interface and concise interfacet
operation design
8-channel withstand voltage parallel output and test efficiency
increased eight times
Parallel 8-channels and each channel is non-interfering
Each channel can be extended by a four-channel scanner
Support 4 four-channel scanner at most and one instrument can
be extended to 128 channels
Four-channel scanner supports contact check function
Single output power: AC:5kV/10mA; DC:6kV/5mA
Insulation resistance test voltage: 0.10kV -1.00kV
Enhanced security: electric shock protection
Rapid discharge and arc detection function
Arbitrarily set voltage rising time and test time in 999.9 seconds;
freely set waiting time for insulation resistance
Key-Lock Function
Display the PASS/FAIL result of each channel independently and
the total result simultaneously
Store 100 test files and each file can hold at most 20 testing steps

Withstand Voltage Tester

Technical Parameter

Model		TH9010	TH9010A
Number of Units		separate channel	separate channel
Withstanding Voltage Test
Output Voltage	AC	0.10kV — 5.00kV       ±2%
	DC	0.10kV — 6.00kV       ±2%
Current TestRange	AC	0mA — 10.00mA        ±(2% readings + 5 digits)
	DC	0uA — 5.00mA           ±(2% readings + 5 digits)
	Rapid Discharge Function	Discharge after test ends (DCW)
Insulation Resistance Test
Output Voltage		0.10kV — 1.00kV       ±2%
Resistance Test Range		0.1MΩ — 10.0GΩ
Resistance Test Accuracy		0.10MΩ — 999MΩ ±10%1.00GΩ — 10.0GΩ ±20%
Discharge Function		Discharge after test ends
Arc Detection
Test Range	Corresponding Current	1mA — 20mA
General Specification
Voltage Rising Time		0.1s — 999.9s
Test time Setting (AC/DC)		0.2s — 999.9s
Voltage Fall Time		0.1s — 999.9s
Waiting Time (IR)		0.2s — 999.9s
Time Accuracy		±(1%+0.1s)
Memory		Store 100 test files and each file can hold at most 20 testing steps
Interface
Standard		HANDLER, RS232, USB DRV, USB HOST
