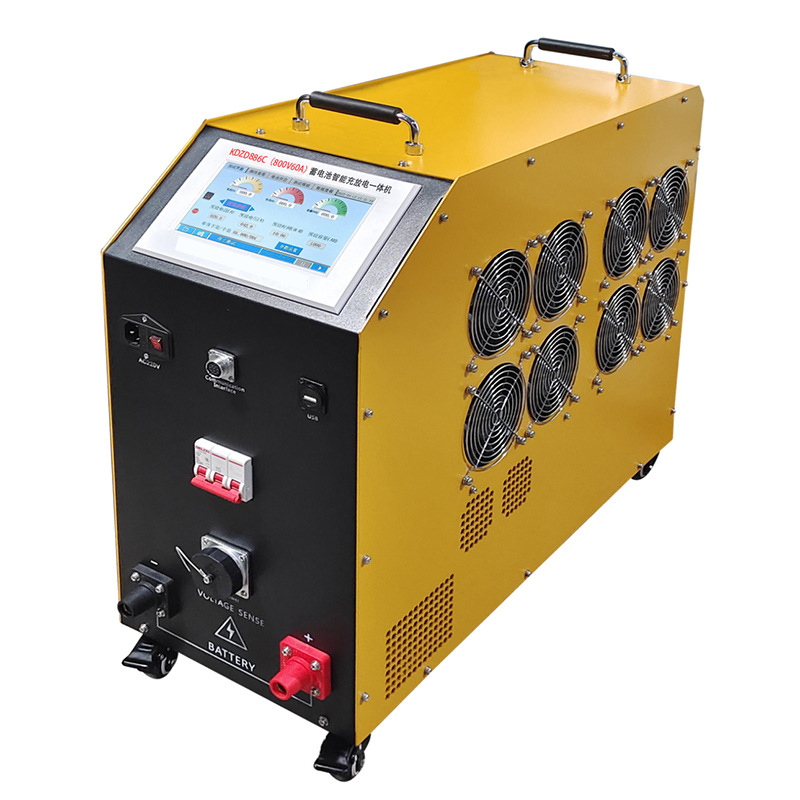

KDZD886C Battery comprehensive tester

Description

Battery comprehensive tester

KDZD886C (800V60A) battery intelligent charging and discharging machine is a test equipment that integrates battery constant discharge, intelligent charging and charging and discharging cycle. It is used for regular battery pack detection and backward battery regeneration and activation. It is used in telecommunications, base stations and power sectors, and is also suitable for testing and cyclic activation of traction battery packs for various types of forklifts, golf carts and trains.

Safety test
Voltage test: AC input – Housing: 2200Vdc 1min AC input – housing; Dc input-Output: 2200Vdc 1min DC input-housing

Working environment
Heat dissipation: forced air cooling
Temperature: Operating temperature range: -5~50℃; Storage temperature: -40~70℃
Humidity: Relative humidity 0~90% (40±2℃)
Altitude: Rated altitude 2000m
Note: Single voltage current can be expanded, if you need other voltage level and current level equipment can consult our company

Battery comprehensive tester
Product characteristics
The product uses custom nickel chromium alloy resistors as the load source. Low resistance value; Can achieve greater current discharge, customized appearance for higher power density. High precision; The accuracy can be controlled within ±0.001Ω, which makes the discharge process more stable as a load source. Low temperature coefficient; It is less affected by temperature coefficient and has strong adaptability to environment. Resistance to current shock; Strong current resistance, can quickly respond to large current impact, discharge process more reliable.

Intelligent chip control. Discharge process intelligent control, automatic adjustment following battery voltage drop, to ensure constant discharge. The voltage of a single battery is collected in real time and displayed in a curve to facilitate evaluation and analysis. At the same time, the voltage state of the battery is intelligently analyzed and evaluated. Intelligent calculation of the conversion between discharge capacity and discharge hour rate to achieve battery capacity status assessment effect. Can set a variety of threshold thresholds, intelligent judgment.

7 inches large LCD touch screen: Using large size touch screen, resolution 1024×600, can be directly clicked on the screen operation, simple and clear. Strong anti-interference ability.

Using LORA wireless monomer monitoring module (optional) : compatible with 2V/6V/12V monomer voltage monitoring. Each wireless monitoring module can monitor 6 monomers at the same time, compared to each module monitoring a monomer voltage method, the number of modules need to be configured is only 1/6 (48V only 4 monitoring modules), so that the wireless module wiring operation is easier.

During the battery charging and discharging process, the voltage of each monomer is detected and displayed in real time: the change track of the voltage histogram of each monomer is displayed on the host screen, supporting the data table display, and the monomer with high and low voltage is automatically displayed in real time to help you quickly analyze the trend of monomer change.

Charge and discharge curve view: You can look back at the battery pack voltage and current curve during the discharge process.

Data transfer: The host is configured with USB flash drive data transfer, data analysis software can analyze the data, and support report generation.
