GA-600 Hot Pressing Tablet Machine

KDZD leakage marking testing machine
KDZD Electrostatic transformer

Category:

Description

Hot Pressing Tablet Machine

Application field

Hot Pressing Tablet Machine high in pressure, high in pressure control precision, and has been used in scientific research, teaching, testing, pharmaceutical, and catalysis. Chemical industry and other industries. In addition, this product can also be used with Fourier infrared spectrometer, fluorescence spectrometer and other test instruments for sample preparation, and can replace similar imported products.

Scientific research

Electronics industry

Pharmaceutical and chemical industry

Battery energy

Catalytic reaction

Jewel diamond

Pottery material

Cement ore

Pressure range 0-25T

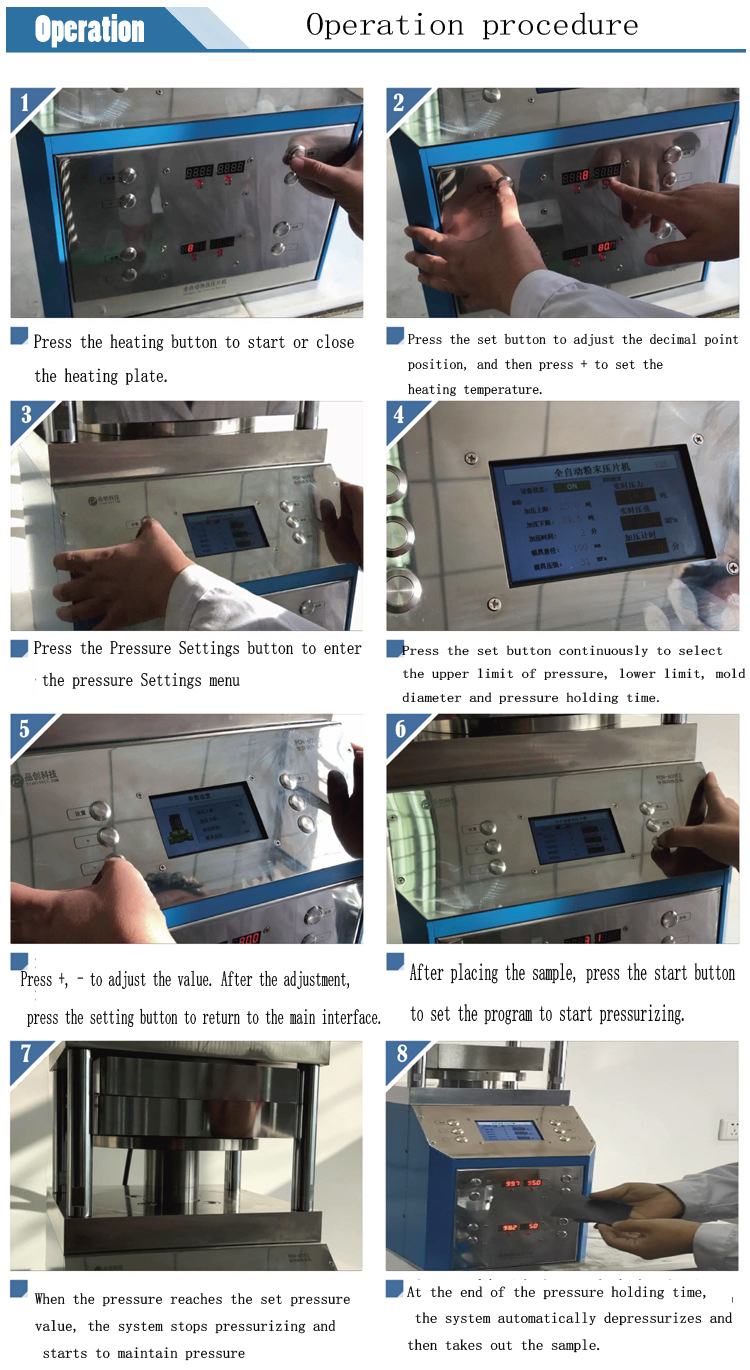

Pressurization process Programmed pressure – programmed pressure retention – timed pressure relief
Holding time 0-999 seconds/min

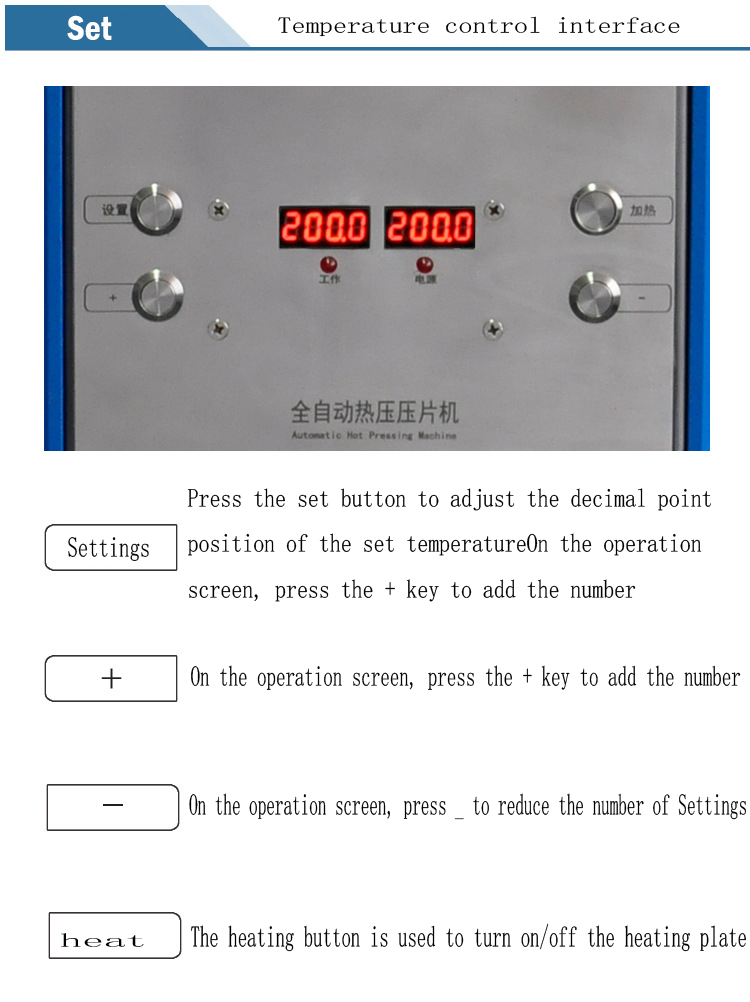

The thermostat controls the temperature Room temperature -600.0°C
Die heating temperature Room temperature -300.0°C
Temperature control accuracy 0.1 C
Heat insulation method Inlet heat shield
Cooling method Water cooling rapid cooling[Water cooler selection]
Die size 300X300mm (MXN)
Overall size 300X500X680mm(LXWXH)
Power source 220V/3000W
