Description
LCR meter
Product overvie

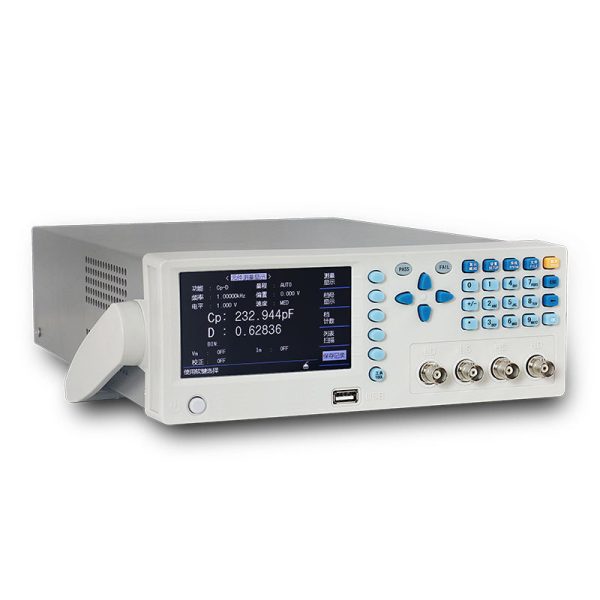

KD2817A is a multifunctional LCR precision digital bridge (also known as winding inductance tester) for testing various electronic components. With a 4.3-inch TFTLCD display, the display is simple and elegant layout. It is a high-speed, broadband, 5-bit resolution impedance measuring instrument, 40Hz-200kHz multi-frequency points and 0.1% accuracy can meet the needs of various occasions component parameter detection. It is a high-quality tester with high cost performance.
LCR meter
Design feature
1, new 32-bit core processor, data comparison of foreign first-class equipment 2, 4.3-inch true color TFT display
3, 30Ω, 100Ω two different signal source output impedance
4, built-in comparator, 5 files sorting flexible qualified and bad alarm mode
5, you can measure five parameters at the same time and display
6, shutdown automatically save the test conditions, humanized operation
7, more than 100 sets of internal configuration files, U disk expansion of multiple groups of test files to save or call
8, simplified Chinese, English optional
9, the instrument software version can be upgraded and updated through the U disk
10, U disk copy screen function, test data saving function, can support the format FAT16, FAT32 file system
11, standard RS232C, HANDLER, USB HOST; Optional USB DEVICE, headphone port, pedal port, GPIB
LCR meter
| Test parameter | LC,R|Z|D,Q, X,ESR,θ(Deg),θ(Rad) |
| Test frequency LCR-5010 | 100Hz, 120Hz, 1kHz, 10kHz |
| Test frequency LCR-5030 | 100Hz, 120Hz, 1kHz, 10kHz, 20kHz, 30kHz. |
| Test frequency LCR-5100 | 50Hz, 60Hz, 100Hz, 120Hz, 1kHz, 10kHz, 20kHz50kHz, 100kHz |
| Test frequency LCR-5200 | 40Hz, 50Hz, 60Hz, 80Hz, 100Hz, 120Hz, 150Hz, 200Hz, 250Hz300Hz, 400Hz, 500Hz, 600Hz, 800Hz, 1.kHz2kHz, 2.5kHz, 3kHz, 4kHz, 5kHz, 6kHz, 7.5kHz, 10kHz, 12kHz, 15kHz, 20kHz, 25kHz, 30kHz, 40kHz, 50kHz, 60kHz, 75kHz100kHz, 120kHz, 150kHz, 200kHz a total of 38 frequency points |
| Basic measurement accuracy | 0.1% |
| Test signal level | 0.1V, 0.3V, 1V |
| Equivalent circuit | Series, parallel |
| Mathematical function | Percentage deviation |
| Range mode | Automatic, hold, manual selection |
| Trigger mode | Internal, manual, external, bus |
| Measured speed (≥1kHz ) | Fast: maximum 30 times/second, medium speed: 10 times/second Slow speed: 3 times/second |
| Average frequency | 1-255 |
| Delay time | 0-6s, 1ms step |
| Calibration function | Open/short/quick clear |
| Display mode | Direct reading, Δ%, V/I(measured voltage/current monitoring) |
| display | Main and secondary parameters 5-bit display, 4.3-inch true color LCD display |
| Output impedance | 30Ω,100Q Optional |
| Display range | |
| |Z|, R,X, ESR | 0.1mΩ-99.999 mΩ |
| C | 0.01 pF-9.9999F |
| L | 0.01 pH-99999 H |
| D | 0.0001-9.9999 |
| Q | 0.0001-9999.9 |
| θ(Deg) | -179.99° -179.99° |
| Θ(Rad) | -3.1416-3.1416 |
| Δ% | -999.99%. – 999.99% |
| other | |
| Comparator function | Standard RS232C, HANDLER, USB HOST Optional USB DEVICE, headphone port, pedal port, GPIB |
| memorizer | More than 100 sets of internal instrument Settings for storage/call, and more than 500 sets of T-disk expansion |
| port | Standard RS232C, HANDLER, USB HOST Optional USB DEVICE, headphone port, pedal port, GPIB |
| dimension | 265mm(W)*100mm(H)*340mm(L) |
| Net weight | About 3.5 kg |
