Description

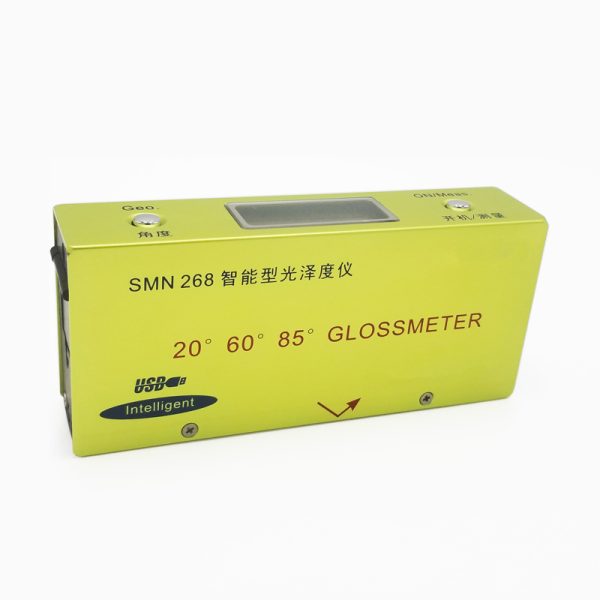

GA-SMN268 Plastic Vanceometer
Introduction
SMN series mirror gloss meter is a fully intelligent model, its technical parameters conform to the national standard GB9754-88, GB9966.5 and international standard ISO2813.
This product is suitable for the measurement of gloss of paint, paint, ink, plastic, stone, paper, tile, enamel and other flat products.
GA-SMN268 Plastic Vanceometer
Feature
1. The ultra-small design can be put in the pocket, more convenient to carry, is the current domestic small volume, light weight gloss meter.
2. Ultra-power-saving design, using a No. 5 battery (rechargeable battery or alkaline battery can be used), you can operate. About 100,000 data points can be measured.
3. Automatic calibration, making three-angle measurement more simple and convenient.
4. Statistical measurements can be made from all three angles.
5. One key Angle selection, one key measurement, easier to use.
6. USB data transmission, plug and play, easy to make measurement reports.
GA-SMN268 Plastic Vanceometer
Precautions:
1. Avoid direct light during use, otherwise the measurement accuracy will be affected.
2. The standard board of the instrument should be kept clean. Do not touch the surface with your fingers. If the surface is stained, it will lead to increased instrument error and inaccurate reading
Wipe with head paper or anhydrous ethanol.
3. Because of the high stability of the instrument, the instrument does not need to be calibrated frequently, it is recommended to re-calibrate once after continuous use for 2 hours.
4, the battery should be replaced in time, otherwise long-term storage, the old battery may flow out of waste liquid, causing damage to the instrument.
GA-SMN268 Plastic Vanceometer
Parameter
| measuring angle | 20°60°85° |
| measuring area（mm） | 20°（10×10）60°（10×20）85°（8×30） |
| window size（mm） | 52×11 |
| light source | D65 |
| Statistical function | 10 sets of data per Angle |
| data interface | USB plug and play |
| power supply | 1.5AA battery |
| Power life | 100,000 sets of data |
| boundary dimension（mm） | 144x32x64 |
| Weight | 320g |
| service conditions | environment temperature -10℃~~60℃ |
| Ambient humidity 85% (no condensation) | |
| measuring range（GS） | 20°（0~99.9 100~2000）60°（0~99.9 100~1000）85°（0~99.9 100~160） |
| repeatability（GS） | 0.2（0~99.9）0.2%（100~2000Gs） |
| reproducibility（GS） | 0.5（0~99.9）0.5%（100~2000Gs） |
| pc software design | My Gloss 2.0 |
