GA-S101 Cross-cut Scratch Tester (Standard Version)

Description

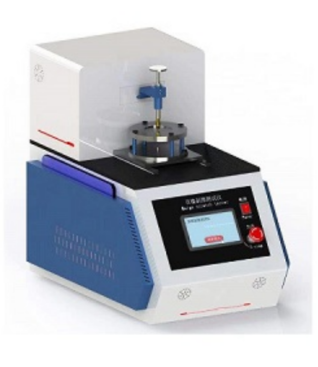

GA-S101 Cross-cut Scratch Tester (Standard Version)

Instrument Application:

This instrument is suitable for testing the scratch resistance of various automotive interior materials, such as plastics, rubber, leather, fabrics, coated materials, uncoated materials, and other composite materials. The scratch resistance tester is applicable to testing the scratch performance of various automotive interior materials.

GA-S101 Cross-cut Scratch Tester (Standard Version)

Implementation Standards:

GM 14688 (Method A)
GM 14688 (Method B)
PV3952, PV3974 Volkswagen Standard
GM 14688 General Motors Standard
VDA 621-411 Paint Adhesion
EN ISO 2409 Coatings—Mesh Cutting Test
ASTM/D 3359 Standard Test Criteria for Testing Coating Adhesion by Tape Method
Q/LiA5400014-2023 (V3)
Q/SQR S1-16-2016 Chery Standard
Q/SQR T1-64 Chery Standard
Q/LiA5400014-2023 (V3)
GB/T 9286-97/ISO 2409
GB/T 9279-2007/ISO 1518:1992
QCC SY051-2012
GB 9286-2021

GA-S101 Cross-cut Scratch Tester (Standard Version)

Test Principle:

Primarily represented by GM GMW14688 and Volkswagen PV3952, this test uses a metal doctor needle of a certain diameter (generally 0.5mm or 1mm) to scratch two sets of parallel, perpendicular scratches on the surface of a workpiece with a force of 5-15N. The color difference or blackness change of the scratched area before and after scratching is then measured.

GA-S101 Cross-cut Scratch Tester (Standard Version)

Technical Features:

1. Two scratching speeds and two scratching lengths can be combined as required.
2. Nine preset cross-shaped scratches, conforming to most commonly used standards.
3. One freely programmable cross-shaped scratching mode to adapt to special needs.
4. Scratching distance is set using a stepper motor.
5. Indication is displayed when the scratch penetrates the insulating layer to the metal substrate.
6. Rapid clamping device with a wide clamping range.

GA-S101 Cross-cut Scratch Tester (Standard Version)

Technical Specifications:

Control System: PLC;
Operating Interface: 7-inch color touchscreen, Chinese/English switching;
Power Supply: 115/230 VAC, 50/60Hz (Please specify voltage when ordering);
Equipment Power: 400W;
Test Piece Size: 80×50mm;
Sample Thickness: 0.5~20mm;
Standard Load Range: 5N, 10N, 15N;
Special Load Range: (Requires optional accessories);
Scribing Path: 25 or 40mm;
Scribing Speed: 0-1000mm/min;
Sample Size Range: Maximum 60*170mm, Minimum 78*78mm;
External Dimensions (Length): 430*660*780mm;
Power Supply: AC220V/50Hz.

GA-S101 Cross-cut Scratch Tester (Standard Version)

Supply List:

1 unit of cross-cut scratch tester
Standard configuration includes 3 weights: 5N, 10N, 15N
Standard configuration includes 1 domestic tungsten carbide scratch head
1 set of instruction manual/certificate of conformity/warranty card/nameplate
