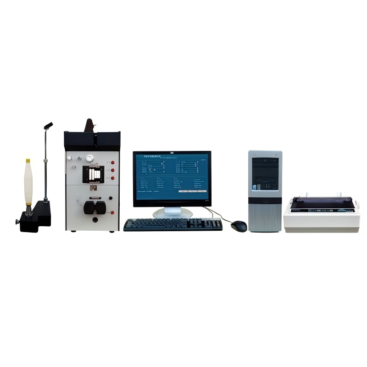

GA-FZ107 Yarn Evenness Tester (Capacitive Type)

Description

GA-FZ107 Yarn Evenness Tester (Capacitive Type)

Scope of Application:

This instrument is a high-performance, high-efficiency textile laboratory instrument used to test the linear density unevenness of fine yarn, roving, and sliver. It analyzes the causes of unevenness and is suitable for testing the evenness of cotton, wool, linen, and chemical fiber short staple pure and blended yarns and slivers. It is an essential instrument for textile enterprises to improve yarn quality.

GA-FZ107 Yarn Evenness Tester (Capacitive Type)

Instrument Features:

1. Can measure the evenness of fine yarn, roving, and sliver.
2. Adopts advanced drive technology to achieve high-speed testing at 800m/min, keeping pace with international high-end standards.
3. The detection sensor automatically moves and switches channels according to the fineness of the tested yarn, resulting in more accurate test results.
4. Automatic yarn feeding and zero adjustment, automatic average value adjustment, making operation more convenient and efficient.
5. The expert analysis system can evaluate the yarn quality level and provide users with process and equipment fault analysis results.
6. The unevenness curve can be saved and replayed, and defect locations can be marked on the unevenness curve.
7. Automatic alarm when the yarn breaks during testing.
8. Powerful statistical analysis function provides annual and monthly product quality level analysis graphs and quality trend charts to provide a basis for scientific management.
9. Uses a graphical interface, combined with the detection sub-unit panel buttons, to achieve one-button operation for testing.
10. Advanced yarn hairiness index testing, keeping pace with international high-end standards.

GA-FZ107 Yarn Evenness Tester (Capacitive Type)

Technical Parameters:

1. Capacitive detection channels: 4
2. Testing range: 4tex～12k tex
3. Testing speed: 25, 50, 100, 200, 400, 800m/min
4. Testing time: 10sec～20min (arbitrarily settable)
5. CV%, U% value range: 0.2%～100%
6. Variation-length curve: cutting length 1 cm～1000m
7. Simultaneously outputs three categories of 12 defect values:
Fine defects: -30%, -40%, -50%, -60%
Coarse defects: +35%, +50%, +70%, +100%
Neps: +140%, +200%, +280%, +400%
8. Spectrogram: 170 channels, wavelength range 1cm-2000m
9. Linear density frequency distribution chart: -100% to +100%, +100% to +400%
10. DR% values: Outputs four DR% values: DR(1m, +5%), DR(1m, -5%), DR(20cm, +35%), DR(20cm, -30%)
11. Number of measurements per batch: ≤ 20
12. Power supply: AC220V±10% 50Hz±5Hz
13. Power consumption: ≤ 400VA
