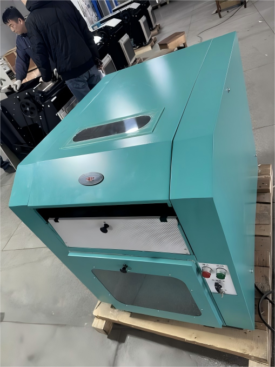

GA-FZ101 Wool Fiber Impurity Analyzer
Model:GA-FZ101
The Wool Fiber Impurity Analyzer is used for impurity analysis of loose wool fibers with a length of 35mm and above.
- Description
- Inquiry
Description
GA-FZ101 Wool Fiber Impurity Analyzer
Application Scope:
The wool fiber impurity analyzer is a key piece of equipment for testing wool fibers in the textile industry and quality inspection departments. This equipment features a compact structure, convenient operation, stable performance, few wearing parts, and easy maintenance, making it the preferred equipment for various textile factories and laboratories. It is used for impurity analysis of loose wool fibers with a length of 35mm and above.
GA-FZ101 Wool Fiber Impurity Analyzer
Relevant Standards:
Complies with GB18267-2013, GB/T6499-2022, DB15/T2105-2021, GB1523 and other standards.
GA-FZ101 Wool Fiber Impurity Analyzer
Main Technical Specifications:
| NO | Name | Unit | Parameter | |
| 1 | Machine width | mm | 490 | |
| 2 | Feeding roller | Diameter | mm | 57.15 |
| Rotational speed | r/min | 0.9 | ||
| 3 | Carding roller | Diameter | mm | 238.76 |
| Rotational speed | r/min | 900 | ||
| Groove spacing | mm | 3.175 | ||
| Lead | mm | 25.40 | ||
| 4 | Distance between the cotton feeding table and the spiked roller | mm | 0.18～0.23 | |
| 5 | Distance between the dust removal blade and the spiked roller | mm | Inlet: 0.53–0.61 | |
| 6 | Distance between the streamlined blade and the spiked roller | mm | Inlet: 0.15–0.23 | |
| 7 | Adjustment gap of the upper airflow regulating plate | mm | 0.2～0.4 | |
| 8 | Motor-spiked roller V-belt model | A1524 | ||
| 9 | Motor-fan V-belt model | A1000 | ||
| 10 | Overall dimensions (length × width × height) | mm | 1019×715×874 | |
| 11 | Machine weight | Kg | 28 | |
GA-FZ101 Wool Fiber Impurity Analyzer
Two Motor Drives:
1. Carding roller and fan operation: Motor model JFO2-21-4, Power 1.1 kW
Speed: 1410 rpm (full load)
2. Feeding roller operation: Motor model 90YYJS90-4, Power 0.09 kW, Speed 1250 rpm
