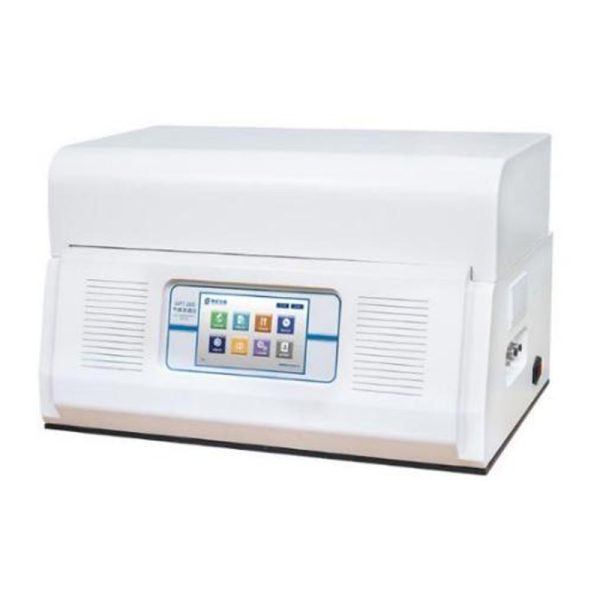

GA-5050-B Differential Pressure Gas Permeator

Description

Differential Pressure Gas Permeator

Standards:

ISO 15105-1、ISO 2556、GB/T 1038-2000、ASTM D1434、JIS K7126-1、YBB00082003

USE

Differential pressure method gas permeability instrument based on the test principle of differential pressure method, is a professional gas permeability tester for film samples, suitable for plastic film, composite film high barrier material, sheet, metal foil at various temperatures of gas permeability and gas permeability coefficient measurement.

Product characteristics

can determine the gas sample at the same time through the amount and transmission coefficient of gas

can meet three cavity completely independent testing

wide range, high precision temperature and humidity control, meet the test of various kinds of experimental conditions

provide proportion, the fuzzy judgment models and time three trials process model

test range according to the need to expand, to meet the requirements of the large transmittance test

support of toxic gases and flammable and explosive gas testing (custom)

adopt pneumatic clamping sample, convenient and quick

system adopts electronic intelligent control, the whole test process automatically

provide a quick calibration standard membrane, to ensure the accuracy of the testing data

products comply with GMP level permissions

the micro printer, note print test results at any time

special computer communication software, test can be real-time display and data analysis processing, data saving

equipped with USB common data interface, convenient data transfer

Differential Pressure Gas Permeator

Test principle

The instrument adopts the principle of differential pressure test. The pre-treated sample is placed between the upper and lower test chambers and clamped tightly. First of all, the low pressure chamber (lower chamber) Vacuum treatment, and then vacuum the whole system; When the specified vacuum degree is reached, the lower chamber of the test is closed and the high voltage chamber (upper chamber) is charged

Enter a certain pressure of the test gas, and ensure that a constant pressure difference is formed on both sides of the sample (adjustable); So the gas will act on the pressure gradient

In use, through the high pressure side and low pressure side penetration, through the low pressure side of the monitoring treatment, so as to obtain the test sample barrier parameters.

Differential Pressure Gas Permeator

Applications Specifications

Basic Applications	Films	Including plastic films, plastic composite films, paper-plastic composite films, coextruded films, aluminized films, aluminum foils, aluminum foil composite films and many others
	Sheeting	Including engineering plastics, rubber and building materials, e.g. PP, PVC, and PVDC

Extended Applications	Various Gases	Test the permeability of various types of gases, e.g. O2, CO2, N2, Air and He
	Inflammable, Explosive Gases	Test the permeability of inflammable and explosive gases
	Biodegradable Films	Test gas permeability of various sorts of biodegradable films, e.g. starch-based biodegradable bags
	Materials for Aerospace Usage	This instrument can test the Helium permeability of airship gas bags
	Paper and Paper Board	Test gas permeability of paper and paper-plastic composite materials, e.g. aluminized paper for cigarette packages, Tetra Pak sheeting, paper bowls for instant noodles and disposable paper cups
	Paint Films	Test gas permeability of substrates coated paint films
	Glass Fiber Cloth and Paper	Including glass fiber cloth and paper materials, e.g. Teflon paint cloth, Teflon welding cloth and Teflon silicon rubber cloth
	Soft Tube Materials for Cosmetics	Including various types of cosmetic tubes, aluminum-plastic tubes and toothpaste tubes
	Rubber Sheeting	Including various sorts of rubber sheeting, e.g. car tires

Differential Pressure Gas Permeator

Technical Specifications

Specification	GA-5050-B
Test Range	0.1 ~ 10000cm³ /m²·24h·0.1MPa (standard volume)
	At least 600000 cm³ /m²·24h·0.1MPa (extended volume)
Number of Specimens	3 (with independent test results)
Vacuum Resolution	0.05 Pa
Vacuum Degree of Test Chamber	＜10 Pa
Temperature Range	10℃～60℃
Temperature Accuracy	±0.1℃
permeability surface area	33.18cm²
Specimen Size	Φ95 mm
Test Gas	O2, N2, and CO2 (outside of supply scope)
Test Pressure	-0.1 MPa ~ +0.1 MPa (standard)
Gas Supply Pressure	0.05 MPa～0.26 MPa
Port Size	Ф6 mm PU Tubing
Instrument Dimension	660 mm (L) × 575 mm (W) × 450 mm (H)
Power Supply	AC 220V 50Hz
Net Weight	82 kg



Standard configuration: host machine, temperature control device, professional software, communication cable, micro printer, special sampler, vacuum grease, rapid quantitative filter paper,

Vacuum pump

Optional: sampling blade, vacuum pump oil, humidity generator

Note: The air source of the machine is 6mm polyurethane pipe; Air source and distilled water are provided by users
