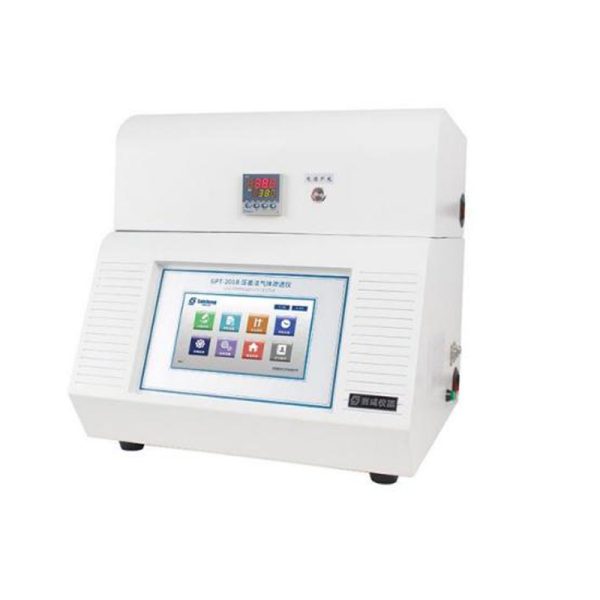

GA-5050-A Differential Pressure Gas Permeator

Description

Differential Pressure Gas Permeator

Standards:

ISO 15105-1、ISO 2556、GB/T 1038-2000、ASTM D1434、JIS K7126-1、YBB00082003

USE

Differential pressure method gas permeability instrument based on the test principle of differential pressure method, is a professional gas permeability tester for film samples, suitable for plastic film, composite film high barrier material, sheet, metal foil at various temperatures of gas permeability and gas permeability coefficient measurement.

Product characteristics

The gas permeability and gas permeability coefficient of the sample can be measured simultaneously

Wide range, high precision temperature and humidity control, meet the test under various test conditions

Three test process judgment modes of proportion, fuzzy mode and time mode are provided

The test range can be expanded as required to meet the requirements of high transmittance test

Support toxic gas and flammable and explosive gas test (to be customized)

Using pneumatic clamping sample, convenient and fast

The system adopts electronic intelligent control, and the whole test process is completed automatically

Standard film is provided for rapid calibration to ensure the accuracy and universality of test data

The product complies with the GMP user’s multi-level permissions

Micro printer, notes are ready to print test statistics

Special computer communication software, can carry out the test real-time display and data analysis and processing, data preservation

Equipped with USB universal data interface, convenient data transfer

Differential Pressure Gas Permeator

Test principle

The instrument adopts the principle of differential pressure test. The pre-treated sample is placed between the upper and lower test chambers and clamped tightly. Firstly, the low pressure chamber (lower chamber) is vacuumized, and then the whole system is vacuumized. When the specified vacuum degree is reached, the lower chamber of the test is closed, the high pressure chamber (upper chamber) is filled with a certain pressure test gas, and ensure that a constant pressure difference (adjustable) is formed on both sides of the sample; In this way, the gas will penetrate from the high pressure side to the low pressure side under the action of the pressure difference gradient. Through the monitoring and processing of the pressure inside the low pressure side, the barrier parameters of the tested samples can be obtained.

Differential Pressure Gas Permeator

Applications Specifications

Basic Applications	Films	Including plastic films, plastic composite films, paper-plastic composite films, coextruded films, aluminized films, aluminum foils, aluminum foil composite films and many others
	Sheeting	Including engineering plastics, rubber and building materials, e.g. PP, PVC, and PVDC

Extended Applications	Various Gases	Test the permeability of various types of gases, e.g. O2, CO2, N2, Air and He
	Inflammable, Explosive Gases	Test the permeability of inflammable and explosive gases
	Biodegradable Films	Test gas permeability of various sorts of biodegradable films, e.g. starch-based biodegradable bags
	Materials for Aerospace Usage	This instrument can test the Helium permeability of airship gas bags
	Paper and Paper Board	Test gas permeability of paper and paper-plastic composite materials, e.g. aluminized paper for cigarette packages, Tetra Pak sheeting, paper bowls for instant noodles and disposable paper cups
	Paint Films	Test gas permeability of substrates coated paint films
	Glass Fiber Cloth and Paper	Including glass fiber cloth and paper materials, e.g. Teflon paint cloth, Teflon welding cloth and Teflon silicon rubber cloth
	Soft Tube Materials for Cosmetics	Including various types of cosmetic tubes, aluminum-plastic tubes and toothpaste tubes
	Rubber Sheeting	Including various sorts of rubber sheeting, e.g. car tires

Differential Pressure Gas Permeator

Technical Specifications

Specification	GA-5050
Test Range	0.1 ~ 10,000cm³ /m²·24h·0.1MPa (standard volume)
Number of Specimens	1
Vacuum Resolution	0.05 Pa
Vacuum Degree of Test Chamber	＜10 Pa
Temperature Range	5℃～50℃
Temperature Accuracy	±0.5℃
Specimen Size	Φ95 mm
permeability surface area	33.18 cm2
Test Gas	O2, N2, and CO2 (outside of supply scope)
Test Pressure	-0.1 MPa ~ +0.1 MPa (standard)
Gas Supply Pressure	0.005 MPa～0.26 MPa
Port Size	Ф6 mm PU Tubing
Instrument Dimension	660 mm (L) × 575 mm (W) × 450 mm (H)
Power Supply	AC 220V 50Hz
Net Weight	88 kg



Product configuration

Standard configuration: host machine, professional software, communication cable, micro printer, special sampler, vacuum grease, rapid quantitative filter paper, vacuum pump,  Temperature control device .

Optional: Sampling blade, vacuum pump oil

Note: The air source of the machine is 6mm polyurethane pipe; Air source and distilled water are provided by users
