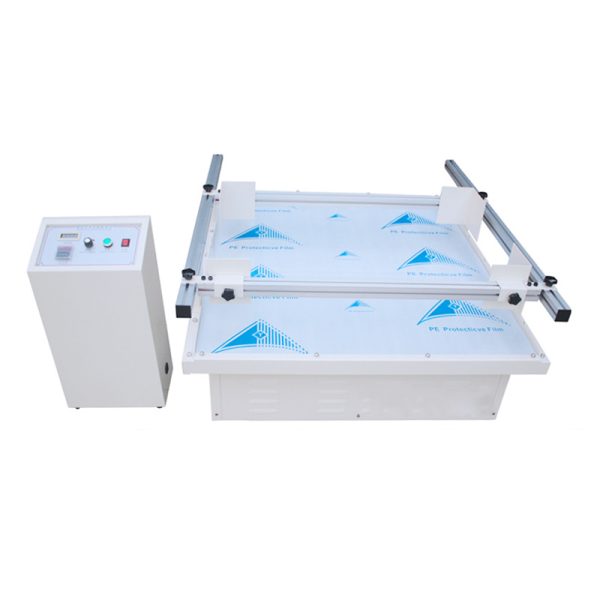

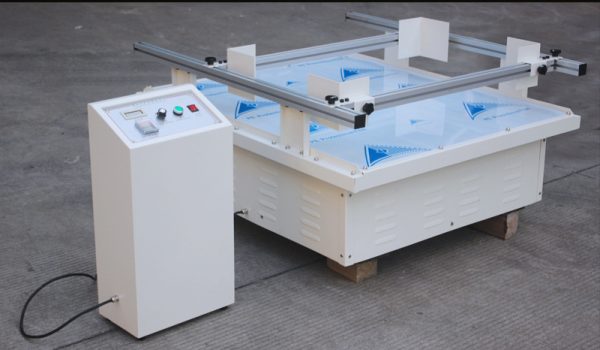

GA-5024 Transport Shaking Simulated Tester

Description

GA-5024 Transport Shaking Simulated Tester

Introduction

This machine is suitable for toys, electronics, furniture, gifts, ceramics, packaging and other products for simulated transport test,

[Applicable standards]

EN ANSI, UL, ASTM, ISTA International Transportation standards

GA-5024 Transport Shaking Simulated Tester

Feature

※ Digital meter displays vibration frequency
※ Synchronous quiet belt drive, very low noise

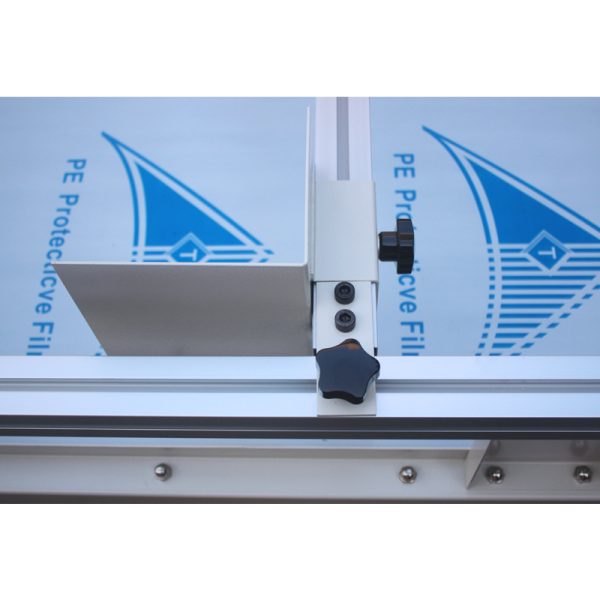

※ Sample clamp adopts guide rail type, easy to operate and safe
※ The base of the machine adopts heavy channel steel with vibration damping rubber pad, easy installation, smooth operation, no need to install anchor screws
※ DC motor speed regulation, smooth operation, strong load capacity
※ Rotary vibration (commonly known as horse type), in line with European and American transportation standards

Parameters

Vibration mode rotary (running horse)
Vibration frequency 100~300rpm
Maximum load 50kg
Amplitude 25.4mm(1 “)
Effective work surface size 500*500mm
Motor power 1HP (0.75kw)
Body size 500×500×750 (mm)
Timer 0~99H99m
Machine weight :80kg
Display frequency accuracy 1rpm
Power supply AC220V 10A
