GA-2130 UV Testing Machine
- Description
- Inquiry
Description
GA-2130 UV Testing Machine
Use:
This machine is mainly used for leather, plastic, rubber, cloth and other light-colored materials under ultraviolet radiation ultraviolet aging resistance.
The machine simulates ultraviolet light radiation for a certain period of time to test the ability of materials to resist ultraviolet aging. The accelerated aging test chamber simulates the transport container environment under sunlight radiation to test the degree of product resistance to discoloration in it. For the production of product materials, the preparation of chemical raw materials reference.
The lamp type yellowing resistance machine is mainly used to test the yellowing resistance of light-colored and white materials such as shoes and substrates in sunlight irradiation. According to the phenomenon that light or white products are prone to yellowing under natural sunlight for a long time, solar bulbs or tubes and heating temperature control devices are used to simulate the natural environment, and the changes in the surface color of the sample are observed within the specified time to determine the degree of discoloration of the sample.
The lamp type yellowing resistance tester is designed to simulate the transport container environment under sunlight irradiation to test the discoloration resistance of shoes in it. It can be used as reference for preparing chemical raw materials when making shoe materials.
Meet the standard:
The lamp type yellowing resistance tester conforms to ASTM-D1148 standard
GA-2130 UV Testing Machine
Lamp type yellowing testing machine specifications:
| Interior dimension | Approx. 460×300×350mm (length × width × height) |
| texture | SUS304 texture |
| measuring distance | 150-250mm |

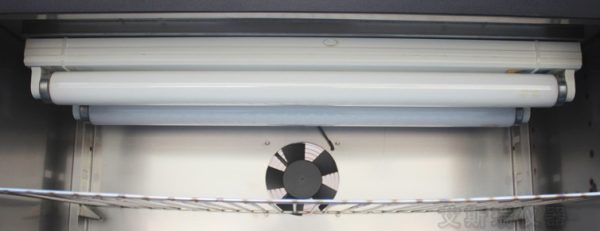

| Test tube | Two 15W UV lamps |
| Test wavelength | 345NM |
| timer | LED display /99 hours 59 minutes |
| air circulation | Electric fan air circulation unit a set |
| protector | Fuse overload protection |
| Machine size | 650×400×45mm (Length × width × height) |
| Weight | About 15Kg |
| nominal voltage | AC～220V 50HZ |
