Description

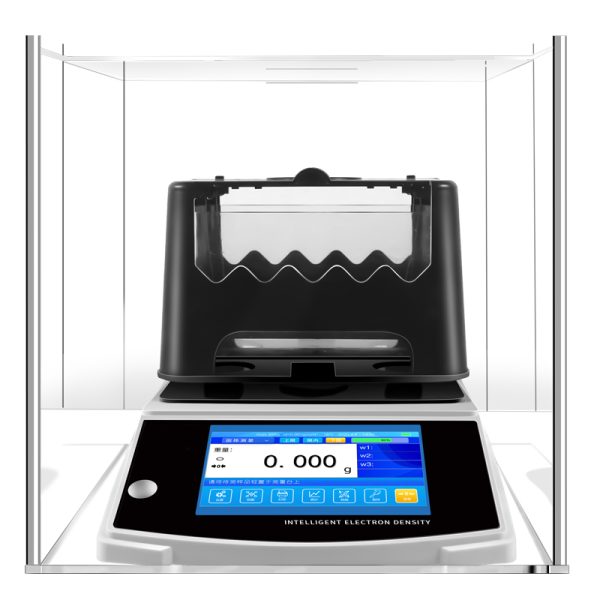

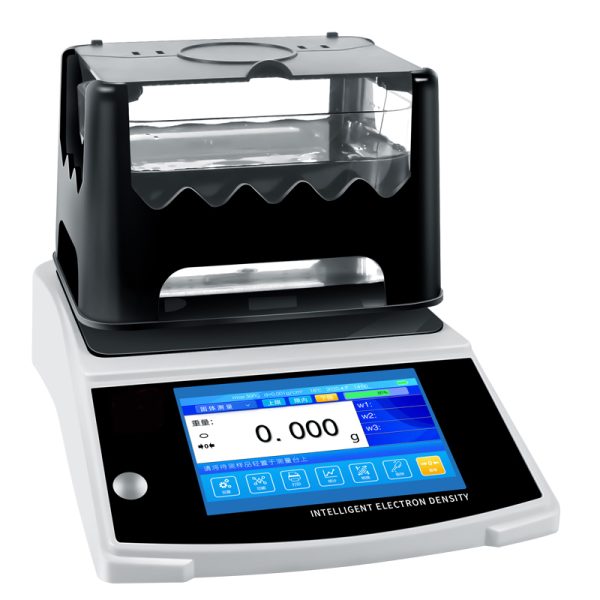

GA-32035S Solid Density Machine
Summary
The GA-32035S touch screen solid density meter is based on ASTM D792, ASTM D297, GB/T1033, GB/T2951, GB/T3850, GB/T533, HG4-1468, JIS K6268, ISO 2781, ISO 1183, GB/T208, GB/T5163, GB/T 1933, GB/T4196, GB/T4123, GB/T5586, JB/T7780 adopt the principle of aqua displacement method of Archmedes.
GA-32035S Solid Density Machine
Widely used to test any irregular density greater than one or less rubber, plastic, wire and cable, food, composite materials, cosmetics, footwear, glass, precious metal hardware, plastic, wire and cable, auto parts, magnetic oxygen core, powder metallurgy, micro fans, tires, etc. It can directly read the average weight in air, the average weight in water and the density value, volume and percentage of the sample of solid, particle, film and floating body.
Product selling point:
1.5-inch touch screen operation, easy to operate, built-in guided test step prompts, simplify and speed up the operation process
2. Stmicroelectronics high-performance 32-bit ARM processor, processing power than the traditional instrument 100 times faster running accuracy, high measurement accuracy. For your every measurement, escort.
3. Built-in large capacity rechargeable lithium battery, Tesla 18650 battery cell, independent battery protection circuit board, withstand pressure and fall
4. Germany imported HBM sensor 2uv resolution output, each factory equipment is strictly 48 hours 40 degrees high temperature aging test, weighing stability, accurate density value
5. Solution compensation setting, the use of water as the medium, can also use other liquid media
6. Intelligent Pinyin Chinese input, standard RS232 printer interface, print content can be freely edited. Supports ticket printing and label printing. Accurately record each of your measurements; Customize the print title and company information
7. Automatically save 100 sets of measurement data and perform statistical analysis on the data. Dynamic deletion, statistical printing, export to U disk accurately and quickly record your every measurement data, free your tedious measurement work
GA-32035S Solid Density Machine
Parameter：
| Brand | GONOAVA | |
| Model | GA-32035S | |
| weighing range | 0.005-320g | |
| Density | readability | 0.001 g/cm3 |
| measuring table | ABS Integrated injection molding, optional clamshell mode (magic measuring frame, removable) | |
| range | Density > 1, < 1 can be tested | |
| Type of measurement | Any irregular solid, particle, floating body can be measured | |
| result display | Density, volume, percentage of volume, average density, Min density value, Max density value | |
| principle of measurement | Archimedes principle buoyancy method | |
| measuring time | About 5s | |
| viewing screen | 5 inch industrial touch screen | |
| water channel | PC material integrated injection molding transparent water tank (Size: Length 15.3 × width 10.7 × height 8.0cm) | |
| parameter determination | Water temperature setting, measurement solution density compensation setting, standard material density setting, standard volume setting | |
| data statistics | Automatically save 100 groups of density values, and automatically display the average value, max value, min value according to the number of saved groups | |
| Correction mode | Single point automatic correction, multi-point automatic correction | |
| data interface | Standard RS-232 interface, can be customized USB interface | |
| Optional Accessories | Densitometer Thermal printer, multi-point calibration weight set, liquid density measurement assembly, label printer, windproof dust cover | |
| supply voltage | AC100V~240V 50HZ/60HZ | |
| out packing size | Length 42.5cm x width 17.5cm x height 32.5cm | |
