GA-1201B Wireless Touch Solid Density Meter
- Description
- Inquiry
Description

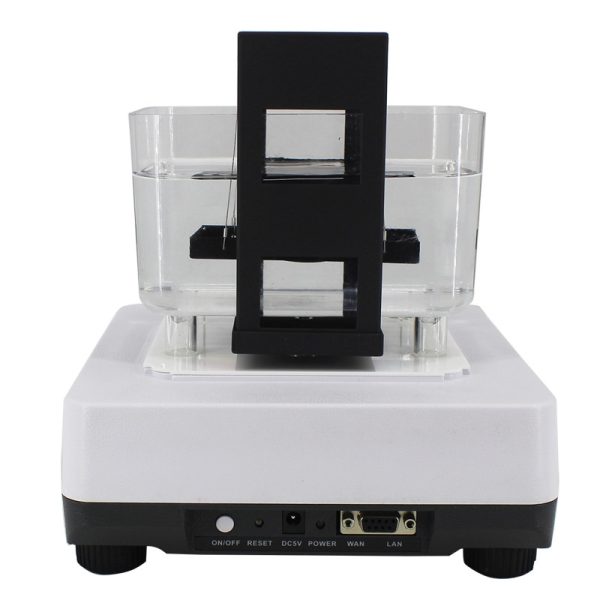

GA-1201B Wireless Touch Solid Density Meter
Introduction
Wireless touch solid density meter equipped with 7 inch integrated touch display color screen, display and weighing body wireless separate structure, to achieve remote control density meter, density software compatible with IOS, PC, Android and other operating systems, equipped with RS232 communication interface or RJ45 wireless communication interface.
This series of products are upgrading products. Compared with other competitive products, the reliability of XFMD series products has been further improved, mainly solving the common problems widely existing in other products on the market, such as measurement instability, data inaccurate, crash, key failure, suspension line bending, crane easy to touch the container slot, container slot easy to break, etc., focusing on improving the measurement accuracy. The operation steps and methods are simplified, the application functions of the software are upgraded, and the reliability of similar products is not comparable, making the application customer base more extensive.
astm d792, astm d297, gb / t1033, gb / t2951, gb / t3850, gb / t533, hg4-1468, jis k6268, iso 2781, iso 1183, gb / t9867, din-53516, iso -4649, gb / t1689, gb / t1689…
GA-1201B Wireless Touch Solid Density Meter
Application industry:
alloy materials, cemented carbide, precious metal materials, motor vehicle parts, aerospace parts, metal seals, powder metallurgy, ceramic products, magnetic materials, rubber, plastic products, sheet, sheet, pipe, wire, sealing ring, silicone, plastic particles, PP particles, PE particles, PVC particles, PC particles, nylon resin, engineering plastics EVA material, PU material, elastomer, PET/PE/PS/PVC film, rock/treasure/stone/jade, jade, fossil, etc.
Technical specifications:
Model GA-1201B GA-2201B GA-3201B
Weighing range 0.001~120g 0.001~220g 0.001~320g
Density Readability 0.0001 g/cm3 0.0001 g/cm3 0.0001 g/cm3
Range density > 1, < 1 can be tested
Measuring platform aluminum alloy die casting
Measurement Type Any irregular solid material can be measured (block, particle)
The results show density, volume, and percentage volume
Measurement principle Archimedes principle Buoyancy method
The measurement time is about 5 seconds
The clamshell method of the measuring table is designed for quick and unobtrance-free clamshell
Water tank PC material injection molding transparent water tank (size: length 15.3cm × width 10.7cm × height 8.0cm)
Parameter setting Water temperature setting, measuring solution medium density setting, material main material and secondary material density setting, density upper and lower limits setting
Correction mode Single key correction, automatic detection
Data interface Standard RS-232 interface
Features:
1, independent research and development of application APP system intelligent software weighing field technical patents. The application of WiFI to achieve separate transmission weighing data technology
2, the main host core devices are all imported components from Germany and the United States
3, all parts of the densitometer all open mold molding (refuse to use acrylic bonded parts)
4, 7 inch industrial tablet computer touch screen, full color screen: large screen true color TFT liquid crystal display, providing rich density weighing display information, easy to read.
5. Full screen touch: A touch solution in line with laboratory work habits, even with multiple gloves can be accurately operated.
6. User interface: Apply Metro color scheme, use environmentally friendly colors, long-term work eyes will not be tired
7. Split structure design, will not affect the sensor measurement due to key action, resulting in instability of the screen; There is no problem of damage caused by liquid overflow into the circuit board and sensors
8, the density meter host built-in date, time and 6000MA battery, to prevent the trouble caused by power failure.
9, a multi-purpose machine, built-in a variety of density test mode, can also be used as a precision analysis balance
