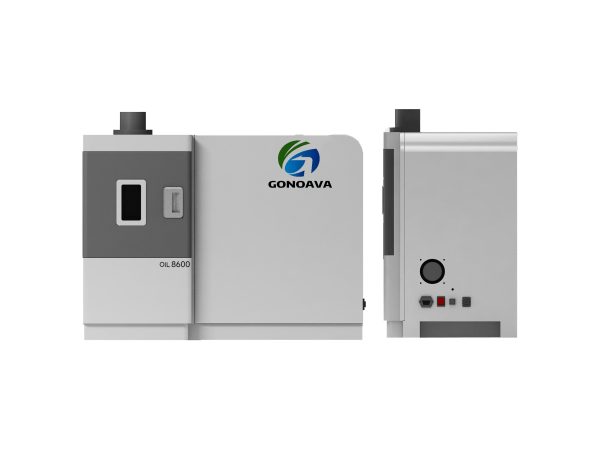

GA-0lL8600 Oil Spectrometer
GA-0lL8600 Oil Spectrometer
- Description
- Inquiry
Description
GA-0lL8600 Oil Spectrometer
Product Description
Factory outlet RED-AES spectrometer oil spectrometer analyzer ASTM D6595 ASTM D6728
GA-0lL8600 is the company’s compact oil spectroscopy instrument, using RED-AES rotating disk electrode atomic emission spectroscopy technology, a new digital light source control system, smaller and lighter.The test function of this machine is similar to SpectrOil M and MOA-II oil analyzer.
Specializes in the detection of metal abrasive particles and contaminants in lubricating or hydraulic oils, in accordance with ASTM D6595 standards. It also meets ASTM D6728 (standard for the detection of alkaline pollutants in fuel oil). Oil element spectrum analyzer, no dilution of oil, no auxiliary solvents or gases. Simultaneous analysis of multiple abrasive elements within 30 seconds allows users to quickly detect the oil status of equipment. Oil spectrometer analysis software intuitive, easy to operate, can simultaneously analyze a variety of elements. Applications:aviation, railways, ocean fleets, mines, refineries, power plants, oil plants, oil recovery, manufacturing plants, commercial laboratories, racing teams and any other industry that uses lubricants.
Technical Specifications
| Project | Data |
| Optical system | 1.High performance holographic diffraction grating with 2700 lines /mm 2.Focal length :500mm 3.Line wavelength :130-800mm, determined by the choice of diffraction grating. |
|
Spark power supply |
1. Control, electronic acquisition and data readout system 2. The electronic system has the function of multi-channel integration and data system acquisition controlled by microprocessor 3. High-speed 16-bit analog to digital converter 4.SP mixed signal Flash microcontroller 100MHz 5. High-speed readout and high-speed USB interface support fast data control and processing system |
|
Analysis software |
1.Create or modify the profiler 2. The common operation function key can mark the element analysis results beyond the scope of the working curve 3. It can print all the firing results or the average firing results of up to 100 times, and its standard deviation and relative standard deviation |
| Power supply | 220V+/-10%, single phase,50/60Hz,10A,1.5KVA |
| Dimensions | 860mm*470mm*620mm(L*W*H) |
| weight | 95KG |
Features & Benefits
1.Test method and precision meet ASTM D6595 test standard, ASTMD6728 test standard.
2.NB/SH/T0865-2013, HB20094.1-2012 test standard; The ultra-long focal length design ensures that the instrument has good resolution and high detection accuracy, and the detection limit is less than 1ppm.
3.Sample testing is fast, and a single test process is less than 30 seconds
4.The use and maintenance of the instrument is simple and convenient, and the professional requirements for personnel are low.
5.Samples do not need pretreatment, no other chemical reagents, the testing process is safe and environmentally friendly.
