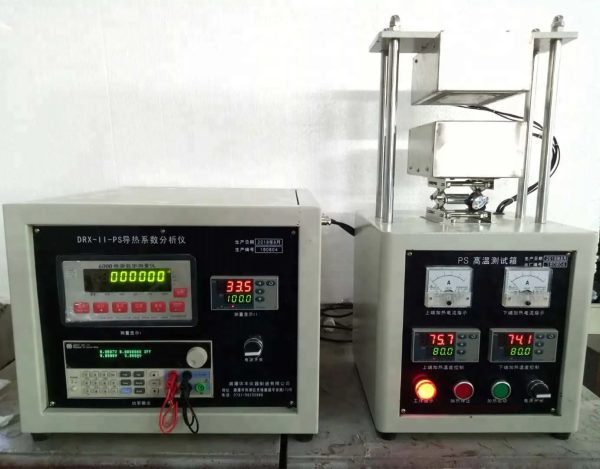

DRX-II-PS Metal Thermal Conductivity Instrument
Introduction
This tester is based on transient plane heat source technology’s thermal diffusivity and specific heat capacity and specific heat capacity’s thermal conductivity. It is widely applied in the fields of electricity, automobiles, materials and bio-pharmaceutical. Providing various probes, software and equipment it can be used to measure the thermal conductivity of different materials.

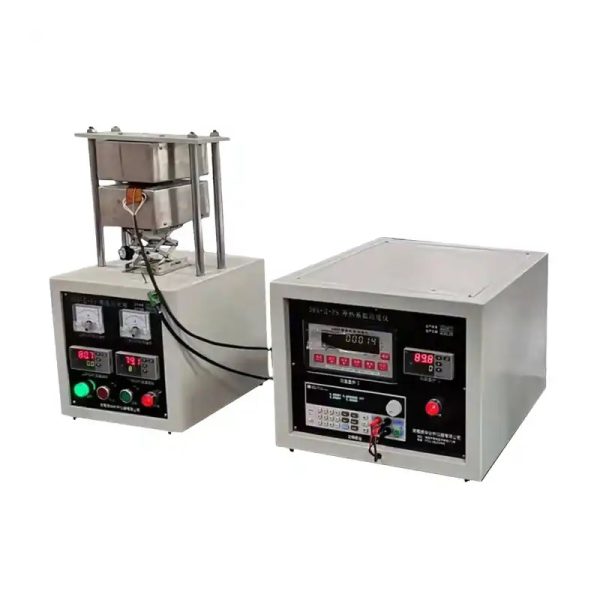

DRX-II-PS Metal Thermal Conductivity Instrument
Instrument features:
1. A wide test range performance, stable test performance,at the advanced level of its similar instruments in the country.
2. Simple operation, short experimental testing time between 5-160s.
3. Intelligent data processing, highly automated computer data communication system and report processing system
4. Automatic generation of test reports, connect the printer to print. Software built experimental records, data processing and reporting formats, automatic test report issued.

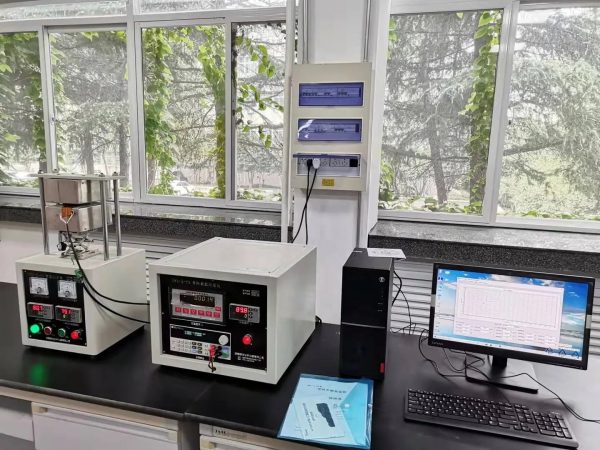

DRX-II-PS Metal Thermal Conductivity Instrument
Main technical parameters:
| Thermal conductivity scope | 0.005—20 W/mK |
| Temperature scope | room temperature ~ 200℃/1000℃ for choose |
| Material type | Metal, alloy, ceramics, ore, composite materials, silicon wafer, polymer, binder, paper, fabric, printed circuit board, propellant… |
| Test module | basic, thin film, plate, anistropy, single face, specific heat |
| Probe size | Φ2- Φ30 mm |
| Specimen type | Solid, powder, film, coating, liquid and anisotropic material, etc. |
| Precision | ± 3% |
| Other test | at the same time can be used to measure the material thermal diffusion coefficient, its precision ± 5%,volumetric heat capacity its precision ± 7%. |
| Environmental condition | room temperature: 18~25℃, humidity: 20~80%RH |
| Data result analysis | Automatic thermal analysis software, Windows 10/7/XP English |
| Supply voltage | AC 220V±5%, power: 500w |
| Main configuration | Testing host, testing software, computer(users bring their own) |
