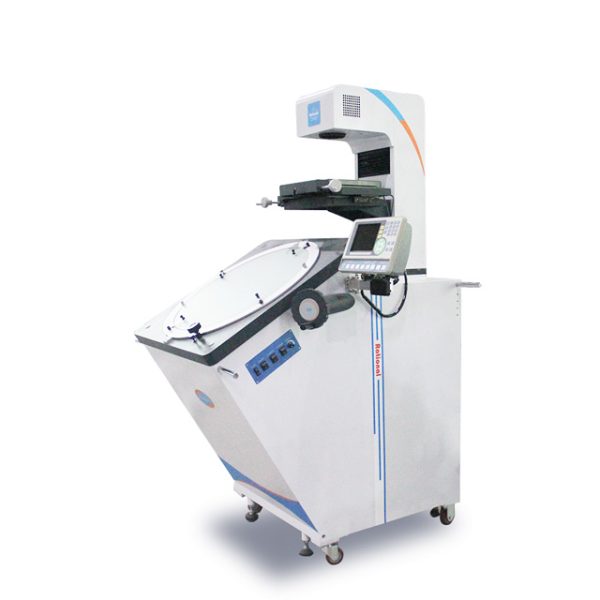

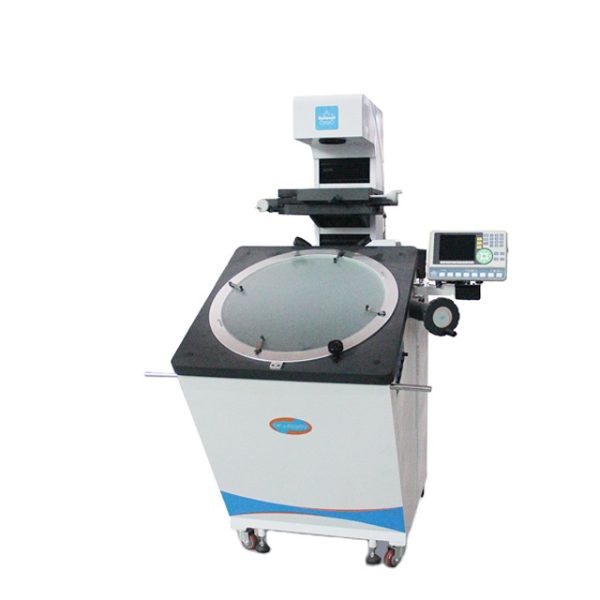

CPJ-6020V Floor Type Profile Projector
Product Introduction:
CPJ-6020V Floor Type Profile Projector is a high precision and high efficiency optical measuring instrument integrating optics, mechanics and electronics. It is widely used in the field of machinery, instrument, meter, electronics, and light industry as well as in measuring chamber and laboratory of universities and institutes, research institutes and metrological verification department. This instrument can efficiently measure the geometric dimension and profile of various complicated shaped workpiece.
Technical Parameters:
| Model | CPJ-6020V | |||||
| X-axis Travel (mm) | 200 | |||||
| Y-axis Travel (mm) | 100 | |||||
| Worktable size (mm) | 400×265 | |||||
| Glass size (mm) | 270×170 | |||||
| X, Z-axis digital display resolution | 0.5um | |||||
| Indication error (mm) | 2.5+L/75 | |||||
| Z-axis Travel (mm) | 50 (focusing) | |||||
| Weight (kg) | 360kg | |||||
| Dimension (mm) | 1200×1140×1940 | |||||
| Projectorscreen | Size (mm) | 615 | ||||
| Rotary range | 0~360° | |||||
| Resolution | 1’ or 0.01° | |||||
| Lens | Magnification | 10× (Optional) | 20× (Optional) | 50× (Optional) | 100× (Optional) | |
| Field of view (mm) | 60 | 30 | 12 | 6 | ||
| Working distance (mm) | 143.5 | 85.5 | 92 | 48.5 | ||
| Measure the maximum height(mm) | 50 | |||||
| Power supply: AC 100-240V 50/60Hz. Total power: 450W | ||||||
