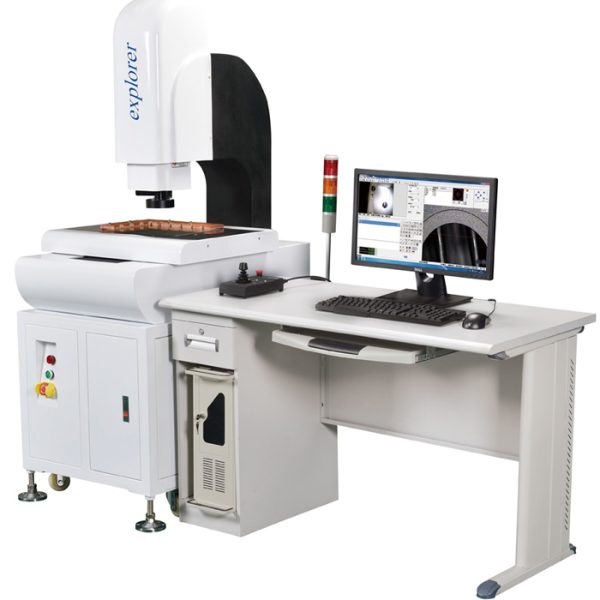

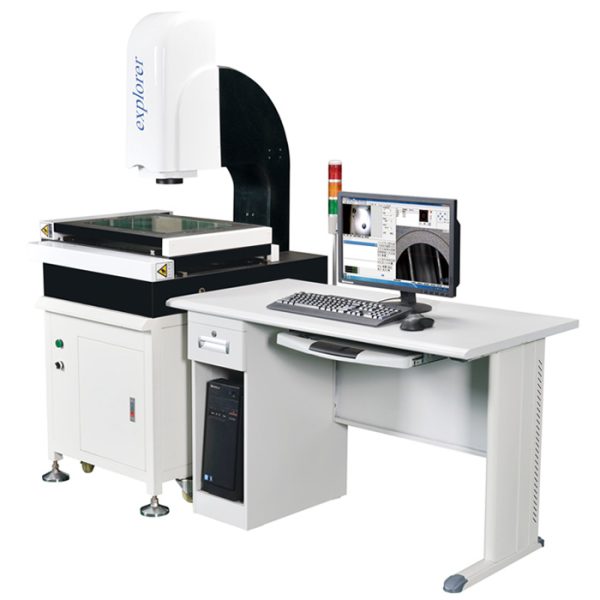

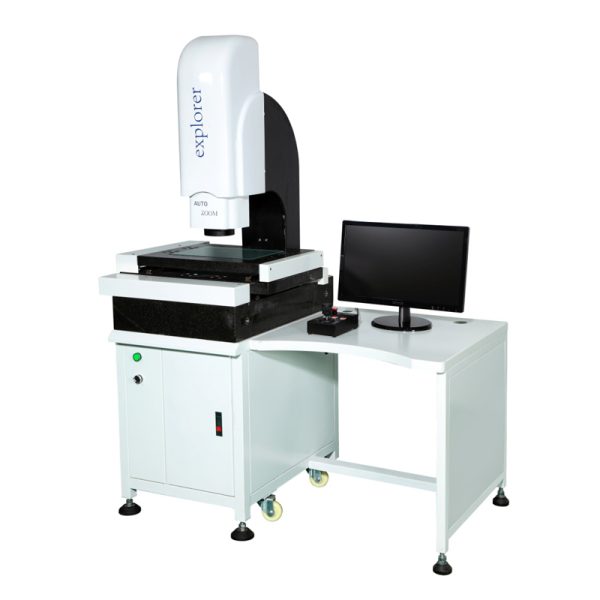

CNC-3020A/4030A/5040A Optical Video Tester

Description

CNC-3020A/4030A/5040A Optical Video Tester

Use

Small CNC measuring machine is a high performance measuring equipment developed by our company.It can realize high efficiency and accurate measure large quanities of workpieces.It is suitable for the inspection and quality control of precision parts.In the machinery,electronic,hardware,plastics and other industries have been widely used.



CNC-3020A/4030A/5040A Optical Video Tester

Product Features

1.High precision overall measurement,Z axis CNC control.

2.High precision and high strenght machine:00 marble base/upright column/worktable,high precision and good stability.

3.XYZ thress axis imported precision V type guide rail/imported grinding level ball screw drive system,long service life,good stablity.

4.High precision grating ruler 0.5μm.

5.WM continuous zoom optical lens,different frames,different magnification,no need zoom correction.

6.HD japanese SONY CCD camera,high quality measuring screen.

7.Auxiliary focusing measurement,optical measuring altitude and flatness,and can be equipped with the British RENISHAW contact probe.

8.Program controlled three ring eight area surface light,LED profile light,coaxial light.Different products with different color light.

9.Equipped with Control handle,easy to opreate at any place.

10.Combined with imported software,3D measuring software is developed to improve the bondary resolution capability.



CNC-3020A/4030A/5040A Optical Video Tester

Specification

Machine Model		CNC-3020A	CNC-4030A	CNC-5040A
Work table	X/Y axis travel mm	300*200	400*300	500*400
	Z axis travel mm	Effective space is 245mm,focusing stroke is 200mm,work distance is 95mm
	Mental table size mm	450*350	550*450	700*600
	Glass table size mm	330*230	650*650	530*430
	Drive type	X/Y/Z axis precision linear guide,Z Axis grinding ball screw drive.
Measure drive system		Optical scale resolution:X/Y/Z axis 0.0005mm(0.5μm)
		Measure accuracy:≤3μm+L/200 reapeatability accuracy:≤3μm+L/200
		Z axis high performance servo motor,double closed loop control system.
Image System		Camera:Japanese SONY CCD video magnification 30-230X
		Len:high definition zoom lens/Continuous magnification 0.7-4.5X Can match 0.5X objective lens,total magnification:15-115X Can match 2X objective lens,total magnification:60-460X
Light system		Surface light and projection light,cold light,long life,brightness adjustable.
Machine external dimension		700*850*1650	800*900*1650	900*1050*1650
Weight kg		330	400	500
