Opis
BGD 502 Tester adhezji krzyżowej
This instrument is widely used to evaluate the adhesion of various coatings. A high precise machined wheel presenting 6 Lub 11 cutting blades with various spacing is mounted in a handle. The test is carried out by performing 2 series of crossed cuts at right angle. The obtained lattices is either brushed or cleared with adhesion tape. According to the coatings thickness and the related spacing, the results can be classified with reference to a standard scale. It has long life tool with 8 cutting edges and comfortable wood handle.
When applied to multi-coat system, assessment of the resistance to separation of individual layers of the coating from each other may be made.
Ponadto, all Biuged cross hatch testers are designed with turnable cutter holder, which is very convenient to cut coatings on curve or uneven surface and ensure to apply a uniform power to cut through the substrage.
The Cross Hatch Cutters conform with the requirements of：
licencjat 3900 E6；BS/EN ISO 2409；ASTM D 3359 D 3302；
BGD 502 Tester adhezji krzyżowej
■ Eight working side blades：When the blade edge is not sharp enough, users can loosen the boat type nut and top thrust screw to rotate it to achieve a new blade.
■ Multi-cutting blades spacing：1mm/2mm/3mm
■ The number of square：25squares/100squares
■ Normal Packing List
① Carrying case
② Cross Hatch Cutter & Handle
③ 1 roll of 3M Scotch Transparent Tape
④ Brush
⑤ Magnifier
⑥ Calibration Certificate
BGD 502 Tester adhezji krzyżowej
| Zamawianie
Informacja |
NIE. Of Teeth | NIE. Of Cutting Edges | Cutter Spacing |
| BGD 502/2A | 11 | 8 | 1mm |
| BGD 502/3A | 6 | 8 | 1mm |
| BGD 502/4A | 11 | 8 | 2mm |
| BGD 502/5A | 6 | 8 | 2mm |
| BGD 502/6A | 6 | 8 | 3mm |
| BGD 504/2 | 11 | 1 | 1mm |
| BGD 504/3 | 6 | 1 | 1mm |
| BGD 504/4 | 11 | 1 | 2mm |
| BGD 504/5 | 6 | 1 | 2mm |
| BGD 504/6 | 6 | 1 | 3mm |
BGD 502 Tester adhezji krzyżowej
akcesoria opcjonalne

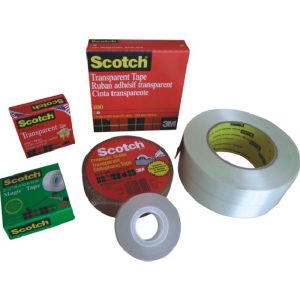

3M Scotch Transparent Tape
Used to test the adhesion of film after the film was cut ，Its adhesion power is 10±1N/25mm
■ Informacje dotyczące zamawiania:
BGD 1011—600P Type：Length/32.9m；Width/19 mm
BGD 1012—600 Typ： Length/66.0m；Width/19 mm
BGD 1013—600 Typ： Length/66.0m；Width/25.4 mm
BGD 1020—610 Typ： Length/66.0m；Width/19mm
BGD 1021—610 Typ： Length/66.0m；Width/25.4 mm
BGD 1030—810 Typ： Length/32.9m；Width/19 mm
BGD 1040—898 Typ： Length/50.0m；Width/25 mm
BGD 502 Tester adhezji krzyżowej
BGD 502 Tester adhezji krzyżowej
Cutter is movable, easier to scribe, and suitable for uneven surface
