Opis
Resistance Meters

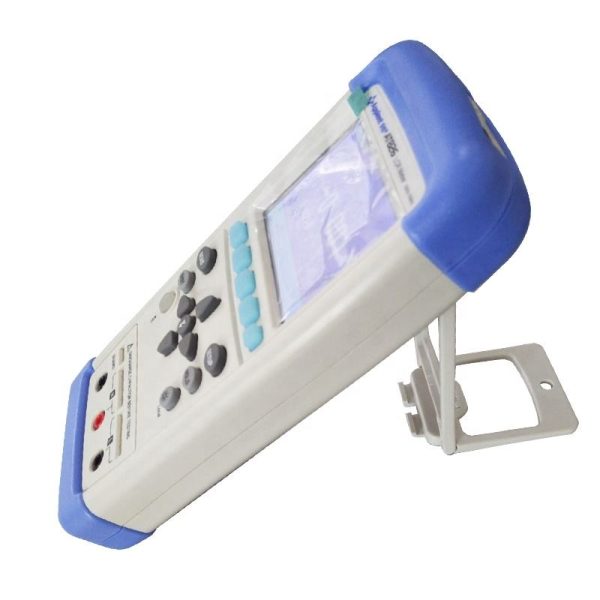

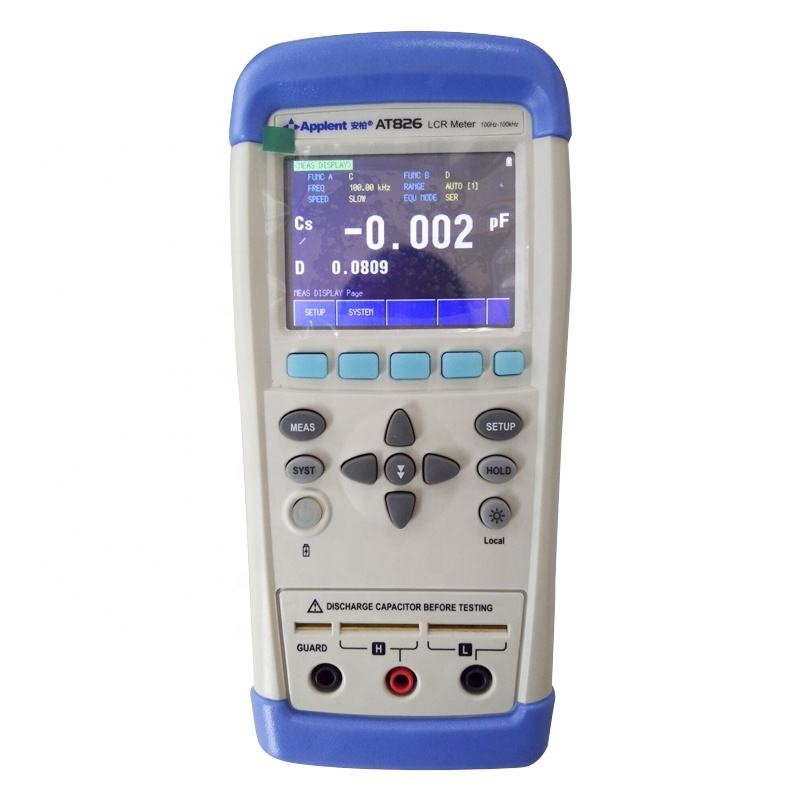

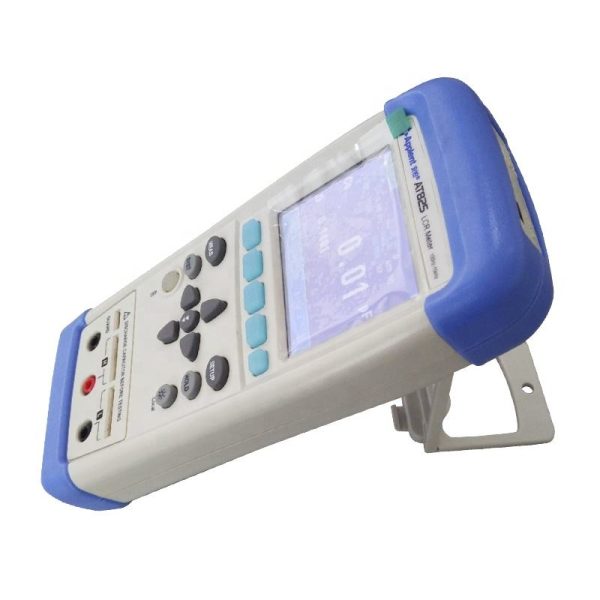

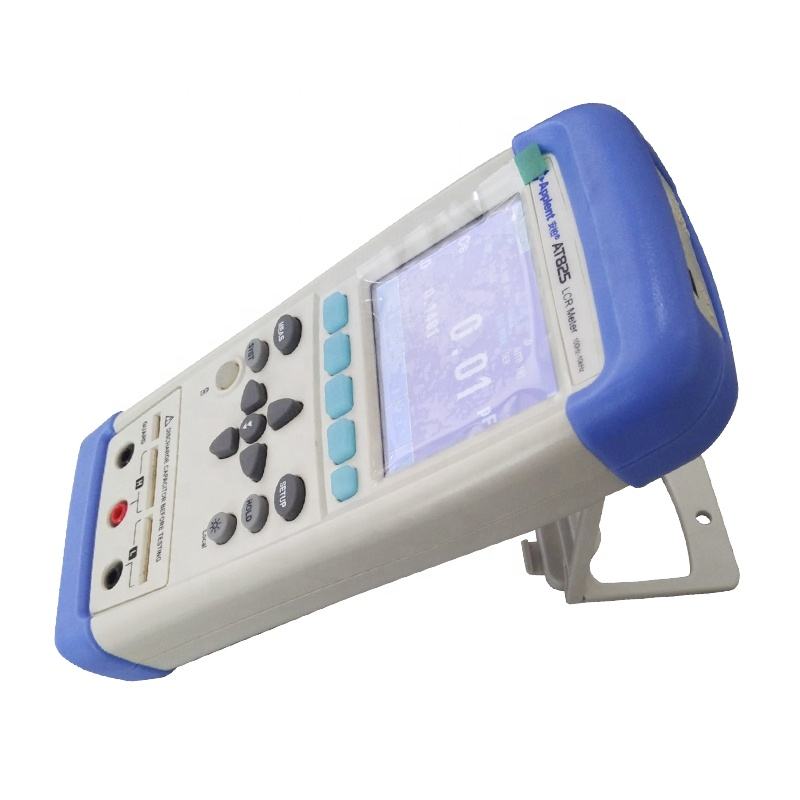

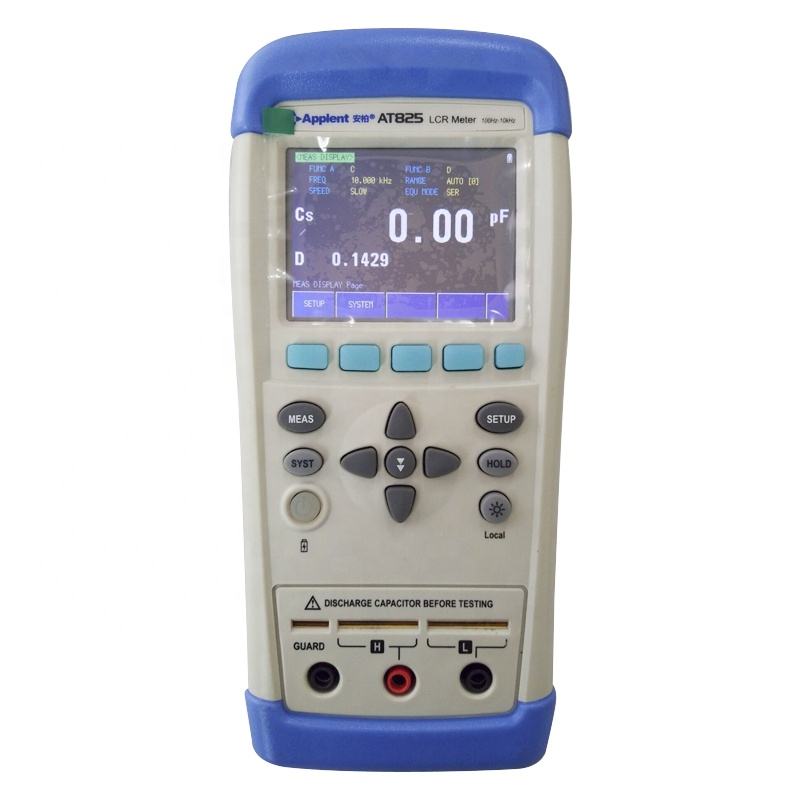

AT826 and 825 handheld Digital LCR meter adopt high performance 32-bit ARM microprocessor. True-color TFT liquid crystal display, keypad and touch screen double control. Using Li- battery powered. USB communication. Switch in both English and Chinese. AT826, 825 handheld LCR digital meter have the highest configuration. With the highest frequency of 100kHz, constant 100Ω source internal resistance, 0.6Vrms measurement voltage level, I 0.2% dokładność, make AT826 and 825 have the excellent performance of both desktop instrument and portability of handheld.
| SPECIFICATIONS | ||
|
AT826 |
AT825 |
|
| Main Parameters |
L,C,R,Z |
|
| Sub Parameters | D, Q, θr, θd, X,ESR | |
| Basic Accuracy | 0.2% | |
| Częstotliwość | 100Hz,120Hz,1kHz,10kHz,100kHz | 100Hz,120Hz,1kHz, 10kHz |
| Display Range | L: 0.01mH-9999H C: 0.01pF – 9999mF R,Z: 0.0001W-99.99MW
D: 0.0001 – 9.999 Q: 0.0001 – 999.9 D%: -9999% – 9999% q(deg):-179.99°-179.99° q(rad) :-3.1416 – 3.1416 |
|
| Prędkość |
4 times/second,1.5 times/second |
|
| Source Resistance |
100W |
|
| Signal Level |
0.6Vrms |
|
| Zakres |
Automatyczny, Podręcznik |
|
| Display Max |
Principle Parameter: 49999 Sub Parameter:49999 |
|
| Adjustment |
Open/short scan frequency reset for each range |
|
| Comparator |
1 sets, compare main parameters |
|
| Trigger |
Wewnętrzny |
|
| Interfejs |
Build-in Mini-USB interface(virtual interface), charging interface |
|
| Inni |
2.8 inch true-color 16M color TFT-LCD display;ekran dotykowy(AT825A none),data hold function;USB communication,compatible SCPI instruction set; switch in both English and Chinese;adjustable back light; automatic power off |
|
| GENERAL FEATURES | ||
| Zasilacz (ATL909) |
Wejście:100-240V~50/60Hz 0.35A, output:9V 2A DC |
|
| Bateria Parametr |
8.4V,Li, 1400mAh rechargeable battery |
|
| Czas ładowania |
Single continuous charging time:Max 200Mins |
|
| Working Time |
Highlight 30%≥14 hours, highlight 50%≥12 hours, highlight 100%≥9 hours |
|
| Rozmiar |
Outside (mm): 90(Szerokość)x190(Wysokość)x31(Głębokość), 400G |
|
| OREDRING INFORMATION | ||
| Akcesoria | ATL501C four-terminal Kelvin test clip; ATL909 DC adapter; ATL805 Li-battery
ATL105 Mini-USB Communication cable, carrying bag, Short-circuit slice |
|
