Opis

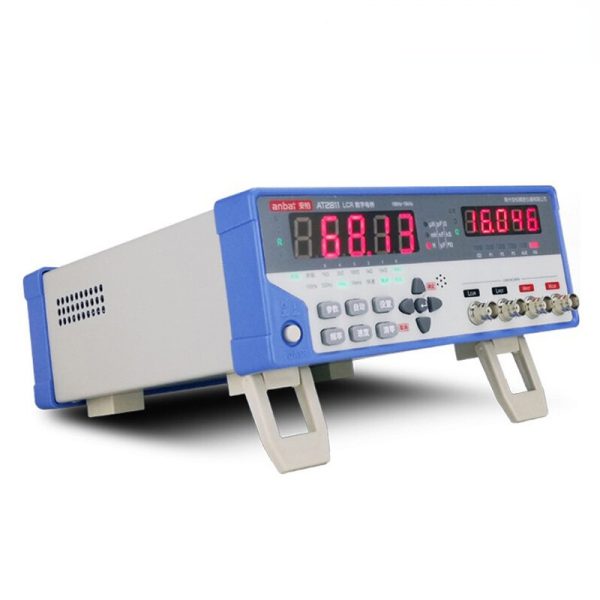

Digital Bridge Meter
Descriptions
AT810D/AT2811 digital LCR meteriscreated as the smallest bench-type digital meter, Zależy to od technologii inteligentnej inteligentnej instrumentów. Cztery stopnie częstotliwości testowej: 100Hz, 120Hz, 1kHz, 10kHz; 6 parametry (L, C, R, Z, D, Q) can be tested and the built-in comparator caneasily deal with the sorting operation of components which made AT2811 high cost-performance.
Digital Bridge Meter
Parametr techniczny
| SPECIFICATIONS | |||
|
AT810D Digital LCR Meter |
AT2811 Digital LCR Meter promotion |
||
| Parametry | L,C,R,Z,D,Q,th(deg),th(rad) | L,C,R,|Z|,D,Q | |
| Basic Accuracy | 0.2% | 0.25% | |
| Częstotliwość | 100Hz, 120Hz, 1kHz, 10kHz | 100Hz, 120Hz, 1kHz, 10kHz | |
| Display Range | L: 0.01μH-9999H C: 0.01pF-9999μF
R,Z:0.0001Ω-99.99MΩΔ%: -9999% – 9999%D: 0.0001 – 9.9999Q:0.0001-9999 |
L: 0.01mH-9999H C: 0.01pF-9999mF
D: 0.0001–9.999 Q: 0.0001–999.9 R,Z: 0.0001W – 99.99MW |
|
| Max Reading | Principle parameter: 99999 sub parameter: 99999 | ||
| Source Resistance | 30W and 100W | ||
| Zakres | Automatic and manual with 6 ranges | ||
| Signal Level | 0.1Vrms, 0.3Vrms and 1Vrms | ||
| Prędkość | 2 times/second, 5 times/second | Powolny: 3 times/second, Szybko: 10 times/second | |
| Equivalent Circuit | In series and parallel | ||
| Result Display | Pokazywać & sorting results | ||
| Adjustment | Short and open sweep frequency correction | ||
| Comparator | 5-bin sorting | ||
| Protection | 1000V/10mF,600V/80mF or 400V/150mF capacitance electrify protection | None | |
| Interfejs | Optional RS232 | None | |
| Beep | P1, P2, P3, NG, OFF | ||
| Inni | VFD display, keypad lock and data hold function | LCR automatic parameter select, LED display | |
| GENERAL FEATURES | |||
| Zasilacz | Napięcie: 198V AC – 240V AC, Częstotliwość: 50Hz, Moc: Max 15VA | ||
| Rozmiar | 264mm(Szerokość)x107mm(Wysokość)x350mm(Głębokość) 4kg | 220mm (Szerokość)x85mm (Wysokość)x259mm (Głębokość); 2kg | |
| ORDERING INFORMATION | |||
| Accessory | ATL501: Test cableATL601: Oprawa testowa
ATL600: Short-circuit device Fakultatywny: ATL608 SMD patch clamp ATL508: SMD patch test clip |
ATL501: Kelvin Test clip; AC power cord | |
