UCE UC2517 DC Low Resistance Tester

GA517A-4H DC Resistance Tester
TH9403 Programmed Ground Resistance Tester

Categoria:

Descrizione

DC Low Resistance Tester

Breve introduzione

UC2517 can be used to test coil, inductor, trasformatore, voice coil, relay contact resistance, connector resistance, fuse, cable resistance, PCB resistance, welding resistance, conductive film, metal and so on. UC2517 is a kind of low resistance tester with high speed, high precision and high performance, which can meet the requirements of production line quality assurance, purchase inspection and laboratory measurement, it can be also used for automatic equipment test.

DC Low Resistance Tester

Performance Characteristics

4.3 inch TFT LCD display, with 480×272 RGB resolution

It is more convenient for U disk to save the test results directly

Maximum resistance accuracy is 0.05%

Built-in comparator; HI, LO, IN can be sorted

More than 100 groups of internal setting files for storage or call, U disk can expand more than 500 groups of test files to save or call

The software version of the instrument can be upgraded and updated via USB HOST

U disk can support file systems with format FAT16, FAT32

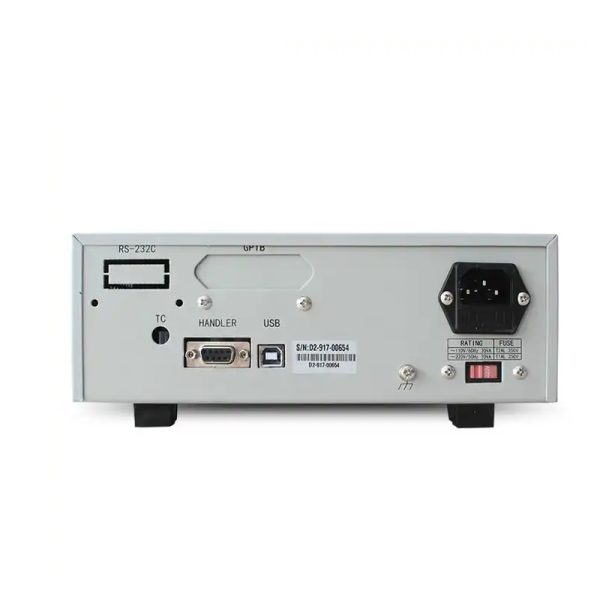

Standard HANDLER, OSPITE USB, USBCDC, and USBTMC; Optional RS232C, GPIB interface

DC Low Resistance Tester
Specifiche tecniche

Measurement accuracy and function
Precisione di base 0.05%+2 words,UC2517B basic accuracy is 0.1%

(2MΩ range is 0.2%)
Measuring speed Power frequency: 50Hz,fast speed:22ms,velocità media:42 ms,velocità lenta:102 ms

Power frequency :60Hz,fast speed:18.5ms,velocità media:35 ms,velocità lenta:102 ms

The above shows the speed when the display is off , when the display is on, the display time is 10 ms.
Statistical functions Provide CpK, Cp and other statistics
Metodo della gamma Automatic, Presa, selezione manuale
Trigger method Internal, esterno
Average times 1—255
Ritardo 0—9999ms, step :1ms
Calibration function

Corto circuito, zero, load correction
Test end

configuration

 Four ends
Display method Lettura diretta, D%
