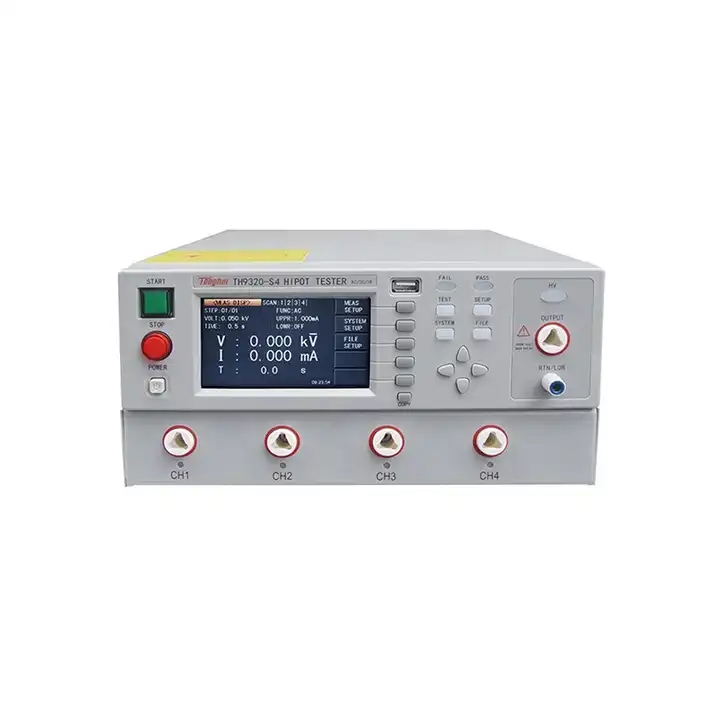

TH9320-S4 Insulation Resistance Tester
- Descrizione
- Inchiesta
Descrizione
Insulation Resistance Tester
Caratteristiche
Tensione di uscita: AC:5kV/20mA; DC:6kV/10mA
Test voltage of insulation resistance:0.10kV-1.00kV
Test range of insulation resistance: 1MΩ-1000MΩ
480×272 dot-matrix, Display LCD TFT
Fornire 4 canali (-S4), 8 canali (-S8) scan interface
Rapidly discharging and arc detection
Randomly set voltage rising time and testing time in 999.9 secondi; Freely
set waiting time for insulation resistance
Presa 20 testing steps; 4 testing modes selectable
Brand new operation interface and concise interface operation design
Lock keyboard
Insulation Resistance Tester
Breve introduzione
TH9320-S series AC/DC withstanding voltage/insulation resistance tester is an economical and intelligent safety tester with the characteristics of small size, peso leggero, pleasing appearance and easy operation. TH9320-S series can be widely used in the safety tests of household appliances, trasformatore, electrical equipments and components.
Insulation Resistance Tester
- Parametro tecnico
| Modello | TH9320-S4 | TH9320-S8 | |
| Withstanding Voltage Test | |||
| Tensione di uscita | AC | 0.05 —5.00kV ± (2% reading+5digits) , (50Hz,60Hz optional) | |
| DC | 0.05 —6.00kV ± (2% reading+5digits) | ||
| Voltage Adjustment Rate | ≤ (1% – 5V)(potenza nominale) | ||
| Current Test Range | AC | 0.000mA – 20.00mA ±(2% reading+2digits) | |
| DC | 0uA –10.00mA ±(2% reading+2digits) | ||
| Discharge Function | Discharge after test ends(DCW) | ||
| Prova di resistenza d'isolamento | |||
| Tensione di uscita | 0.10kV – 1.00kV ±(2%reading+2V) | ||
| Intervallo di prova della resistenza | 1MΩ– 9999MΩ | ||
| Resistance Test Accuracy | 500V-1000V | 1MΩ– 1000MΩ ±(5%reading+2digits) ;1000MΩ–9999MΩ ±(10%reading+2digits) | |
| 100V-500V | 1MΩ– 1000MΩ ±(10%reading+2digits) | ||
| Discharge Function | Discharge after test ends | ||
| Arc Detection | |||
| Campo di misura | AC | 1 – 9 levels (factory default 5)(20mA,18mA,16mA,14mA,12mA,10mA,7.7mA,5.5mA,2.8mA respectively) | |
| DC | 1 – 9 levels | ||
| General Specification | |||
| Memoria | 5 groups | ||
| Voltage Rising Time | 0.1s – 999,9 s | ||
| Test Time Setting(AC/DC) | 0.2s – 999,9 s | ||
| Tempo di attesa(IR) | 0.2s – 999,9 s | ||
| Time Accuracy | ±(1%+0.1S) | ||
| Dimensione(W×H×D) | 280mm×89mm×428mm/10kg | ||
| Interfaccia | |||
| Standard | GESTORE, RS232, USBDRV(PC interface), USBHOST(USB port) | ||
| Scan Interface | 4 canali | 8 canali | |
