KGZW-35D Current Power Quality Monitor

introduzione al prodotto

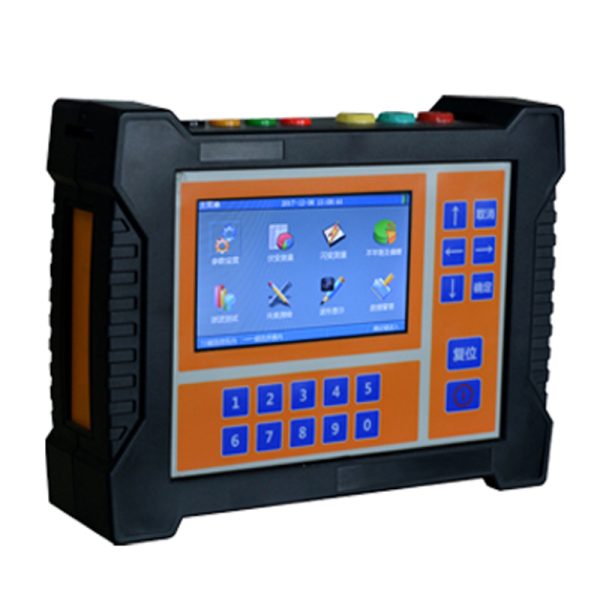

KGZW-35D power quality analyzer adopts DSP+ARM+CPLD core, fast processing speed, rich software functions, suitable for complex test work and data processing work, greatly improve the test efficiency and level. The panel of the device is equipped with a large screen color display to graphically display real-time data of main power quality monitoring indicators.

KGZW-35D Current Power Quality Monitor

Caratteristiche del prodotto
1, sicuro e affidabile
The voltage input adopts high voltage isolation module (2000V, response time < 2μS), and the current input adopts alternating current clamp (0 ~ 50KHz,0 ~ 5Arms) to isolate the input signal from the measurement system. This not only makes KDZW-35D safe, reliable and convenient in use, but also greatly improves the anti-interference ability of KDZW-35D.
2, facile da usare
Portable structure, taglia piccola, peso leggero, one person can carry the instrument to the field test; The built-in high-performance lithium battery can work continuously for ten hours without external power supply, and can also carry out high-precision measurement under charging.
3, alta precisione
Data acquisition channel adopts single channel single A/D design, each channel has A 16-bit parallel A/D, all channels are completely synchronous sampling, higher precision, faster, and any A/D damage will not affect the normal data acquisition of other channels.
4. Strong software function
Using DSP+ARM+CPLD kernel, the processing speed is fast, the software functions are rich, so that KDZW-35D is suitable for complex test work and data processing work, greatly improving the test efficiency and level. The panel of the device is equipped with a large screen color display to graphically display real-time data of main power quality monitoring indicators.
5. Interfaccia di comunicazione
The tester provides USB interface to facilitate data storage and communication with the computer for data transmission.

6. Many test parameters
1) Basic measurement
Grid frequency; Effective value of voltage and current; Total active power, reactive power, power factor.
2) Basic monitoring index a) three-phase fundamental voltage, current effective value, fundamental power, power factor, phase, eccetera. B) voltage deviation; C) Frequency deviation; D) three-phase voltage unbalance, three-phase current unbalance, negative sequence voltage, attuale; e) Harmonics (2 ~ 63 volte). Including voltage, current total harmonic distortion rate, each harmonic content rate, amplitude, phase; Active and reactive power of each harmonic;
3) Advanced monitoring indicators a) voltage fluctuation, flicker;
7. Large capacity storage
Harmonics tester built-in 32MB memory, users can configure different save time steps, 5 secondi, 15 secondi, 30 secondi, 1 minuto, 2 minuti, 5 minuti, 15 minuti, 30 minutes and so on.

KGZW-35D Current Power Quality Monitor

Measurement parameter
(1) Voltaggio: Voltage measures the true RMS value of each channel.
Input range: 10-450V; Errore di misurazione: ≤0.1%.
(2) Attuale: The current measures the true effective value of each channel.
Input range: 0-5UN, other ranges can be selected according to user requirements; Errore di misurazione: ≤0.1%.
(3) Frequenza: Campo di misura: 45Hz-55Hz, central frequency 50Hz, measuring conditions: fundamental wave component is not less than 80% F.S.
Errore di misurazione :≤0.01Hz
(4) Angolo di fase: phase difference between voltage and current. Errore di misurazione: ≤0.5°
(5) Three-phase voltage unbalance: errore di misurazione: ≤ 0.2%
(6) Voltage deviation: errore di misurazione: ≤ 0.2%
(7) Voltage variation: errore di misurazione: ≤ 0.2%
(8) Energia: Power measures the average power. Errore di misurazione: ≤ 0.5%
(9) Flicker: Errore di misurazione: ≤ 5%
(10) The error of harmonic voltage and harmonic current conforms to the “DL/T1028-2006” level A standard.
