GA385-050 Black Body Calibration Furnace
- Descrizione
- Inchiesta
Descrizione

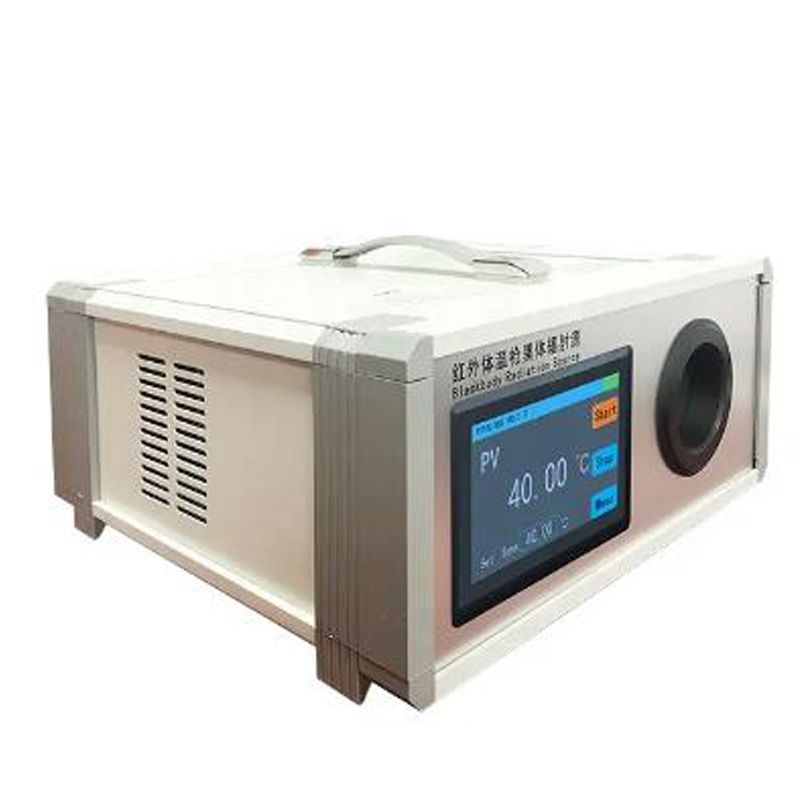

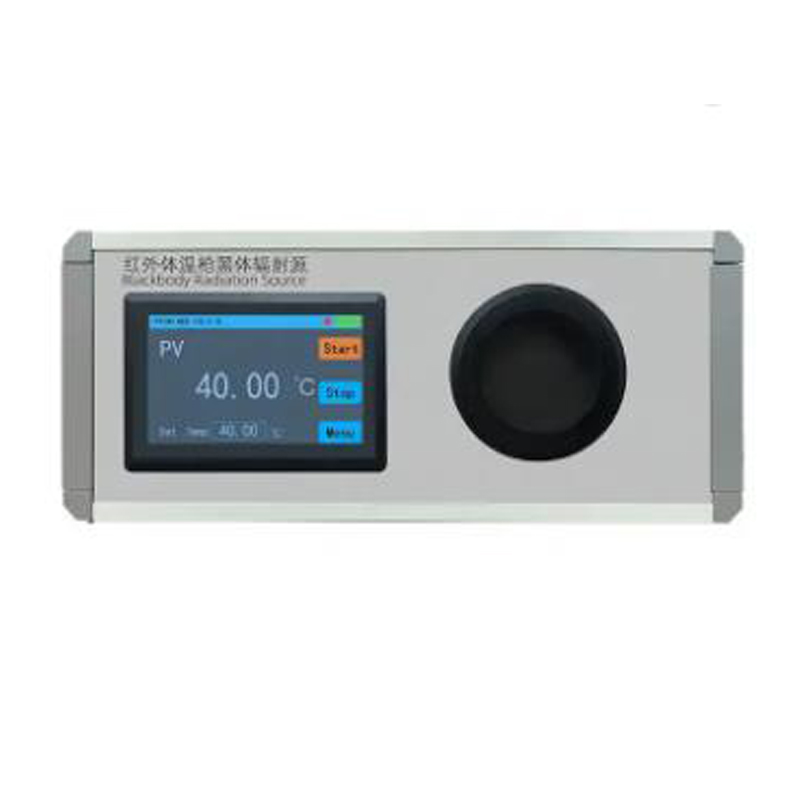

Black Body Calibration Furnace
The portable black body stove for infrared body temperature guns is independently developed by our company and is mainly used for the calibration of infrared ear thermometers and infrared forehead thermometers. It can also be used for the calibration of infrared body surface screeners.
Portable infrared body gun black body furnace, through the company’s self-developed temperature cycling system, coupled with the use of new materials developed by our company, the emissivity can reach above 0.99, is the best ideal product for calibrating infrared ear thermometer and forehead.
Black Body Calibration Furnace
|
Model Name |
CKT385-050 |
|
Intervallo di temperatura |
30-50C°Adjustable |
|
Display and Operation |
5 inches TFT color LCD display, 800 X 480 risoluzione, the touch operation |
|
Temperature Resolution |
0.01℃ |
|
Cavity Diameter |
Φ60mm |
|
Cavity Depth |
25mm |
|
Cavity Emissivity |
≥0.99 |
|
Stabilità della temperatura |
±(0.1~0.2)℃/10min |
|
Temperature Uniformity |
≤0.15℃ |
|
Alimentazione elettrica |
220V AC 50HZ |
|
Peso netto |
Approx.5.0Kg |
|
Outside Size |
300mm*350mm*150mm(length*width*height) |
|
Operation Environment |
20℃±5℃ environment temperature and relative humidity of 95% or less (nessuna condensa) |
