Anbai AT4708V Temperature Humidity Data Logger

BX-350 Infrared Fast Calibrator
Tonghui TH8201 Programmable DC Electronic Load

Categoria:

Descrizione

Temperature Humidity Data Logger

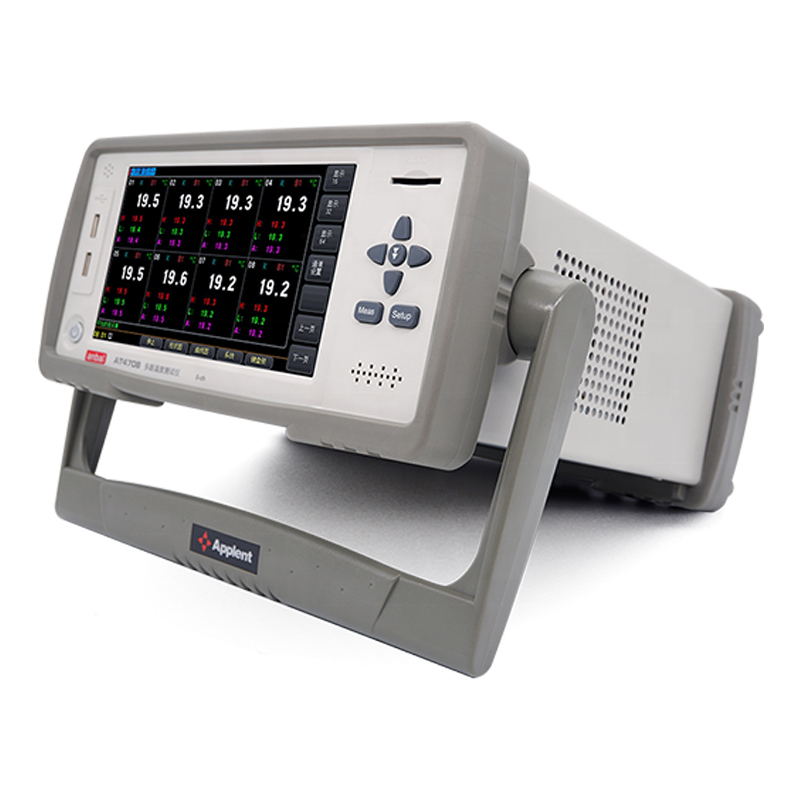

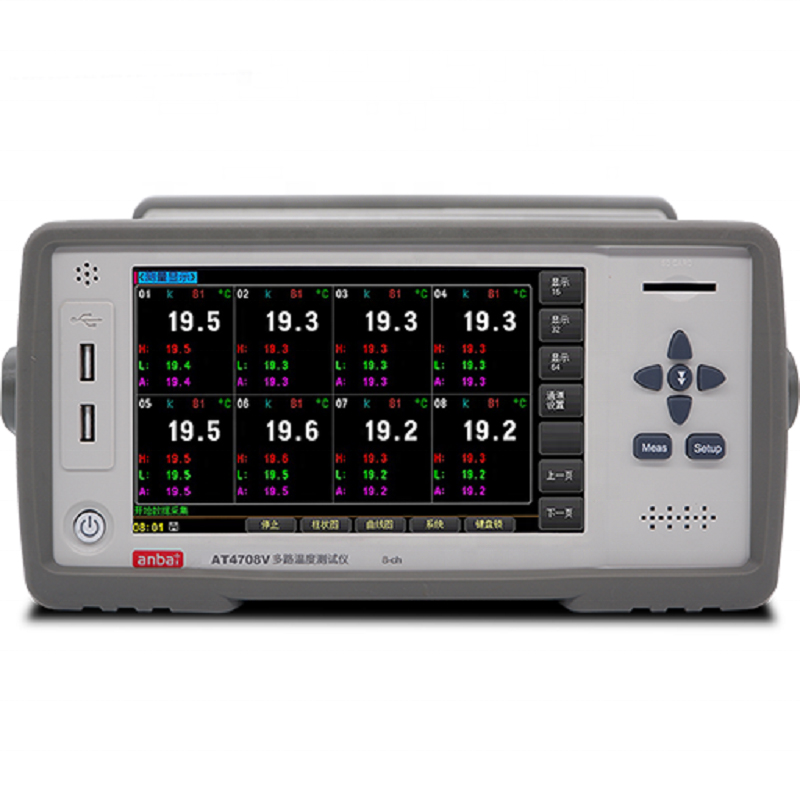

AT47V series multi-channel temperature tester adopts high-performance ARM microprocessor control, 7-inch color LCD screen display, touch screen operation, convenient to view temperature value, temperature change curve, histogram, eccetera., can simultaneously collect multi-channel temperature data. Ultra-low alarm and communication transmission, AT47V series can collect 64 channels of temperature data, compatible with K/N/E/J/T/R/S/B thermocouples, velocità di risposta rapida, stable data, and has a broken couple detection function . Each channel can be set individually and calibrated independently. The instrument supports USBcommunication, and data collection, analysis and printing can be realized through standard computer software. Support USB disk storage, real-time storage of sampling data. The user can independently correct each channel of data. The AT47 series adopts fully isolated digital and analog signals, ## (can be tested on-line (isolation voltage 230V rms, 330VDC), support PT100, CU50, sicuro e affidabile.
Temperature Humidity Data Logger
FEATURES
7 inches TFT true color LCD display.
Histogram display, graph.
Highest value, lowest value, average value display.
Cold junction compensation.
Standard USB disk interface, support for large-capacity storage devices.
Standard RS232C interface and USB interface.
Automatic detection of broken couple.
Specified channel scan.
Standard data acquisition software.



Temperature Humidity Data Logger

SPECIFICHE

Graduation Termocoppia:J/K/T/E/S/N/B/R,PT100,CU50
Precisione 0.2%+1℃
Allineare -200℃~1800℃ (variation depend on graduation)
Risoluzione 0.1℃
Canali 8 canali;
Correction Error correction for each channel
Comparatore high & low beep function for each channel
Interfaccia RS232C, U-disc, USB
Software ATS45 data acquisition software
Cold Junction Precisione: 0.5℃
Other Functions TFT-LCD True color display, broken thermocouple check function
Alimentazione elettrica V: 85VAC~260VAC Fre:50Hz/60Hz Power:10VA
Dimensione & Peso 216x88x300mm weight:3kg
Accessori K thermocouple 8 canali (2 meters/ channel)

Comparatore supper/lower beep

separately setting upper/lower value or each channel



Temperature Humidity Data Logger
