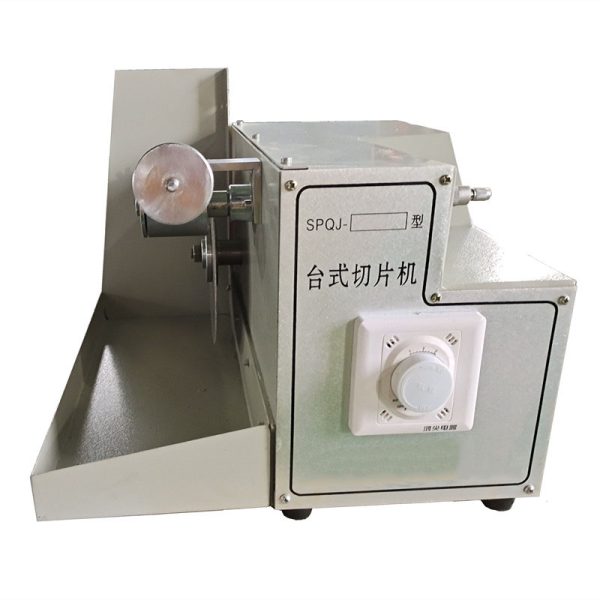

SPQJ-200 Desktop Microtome
Perkenalan
SPQJ-200 desktop slicer is mainly used for cutting mineral samples in rock and ore identification laboratory, and can also be used to cut metal samples, cutting ceramics, giok, quartz, cemented carbide and other materials.
SPQJ-200 Desktop Microtome
Parameter
1, blade size: Φ100mm, Φ200mm
2, blade thickness: 0.3mm, 0.5mm
3, cutting speed is adjustable
| serial number | Nama | Satuan | numerical value |
| 1 | diamond slitting wheel | JQ80Q100PBG200×1×20 | |
| 2 | Grinding wheel linear speed | Meters per second | 29 |
| 3 | electromotor | 220ay | |
| 4 | Jig swing range | degree | 75 |
| 5 | Cut sample size range (section) | mm | ф15 ~ф40或35×40 |
| 6 | Fixture travel | mm | 20 |
| 7 | Specification Cutting tool cutting specifications
(panjang × lebar) |
mm | 25×25 32×32 40×40
25×32 25×40 32×40 |
| 8 | Dimensi keseluruhan (L × W × H) | mm | 620×515×400 |
| 9 | Berat bersih | kg | 55 |
SPQJ-200 Desktop Microtome
Structure introduction
The machine is a bench type single knife horizontal, the main machine is composed of transmission, fixture, feed device, base, kerang, protective cover, frequency conversion governor and other components, which is characterized by the use of fixtures to clamp samples for swinging cutting and sealing protection.
