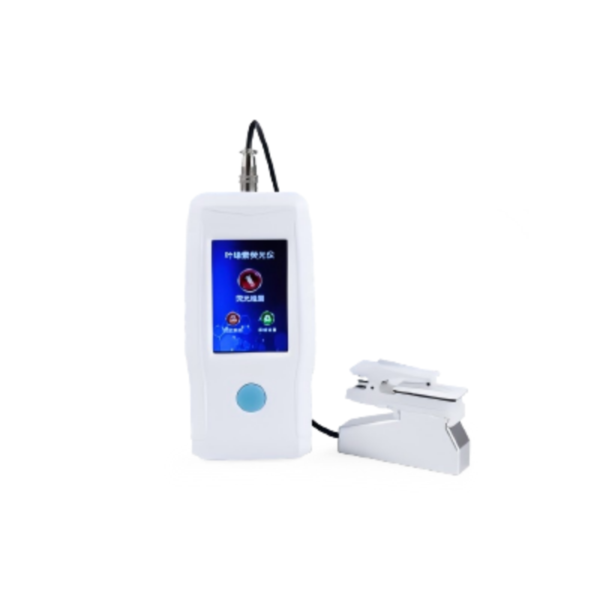

GA-C106 Chlorophyll Fluorometer

Keterangan

GA-C106 Chlorophyll Fluorometer

SAYA. Instrument Functions

1. Measurement Functions:
Acquire OJIP rapid fluorescence kinetic curves (0.1–10 s)
Basic parameters to be measured: Fo, Fj, Fi, Fm(Fp)

2. Calculation and Display Functions:
Display the rapid fluorescence kinetic curves (OJIP curves) from 0.1 ke 10 S
Display the measurement results of basic parameters Fo, Fj, Fi, and Fm(Fp)
Calculate and display the following other measurement results (26 in total):
Fv, Mo, Fv/Fm, Fv/Fo, Fm/Fo, Vj, Vi, Sm, Daerah, Fix Area, ABS/RC, Tro/RC,
ETo/RC, DIo/RC, Phi_Po, Phi_Eo, Phi_Pav, Phi_Do, PI_Abs, Psi, N, Ss

3. Settings:
Measurement Parameter Settings: Measurement time, light source brightness, phototube gain, dll..
Screen brightness and touch sensitivity can be set; time and date can be set.

4. Data Processing:
Automatic saving after measurement; historical records can be viewed, deleted, or cleared; data can be exported to an Excel spreadsheet.
Supports WIFI data upload; test results can be directly transmitted to the cloud platform, and platform data can be exported to a computer.
Data transfer with a computer can be performed using USB or Type-C data cables.

5. Other Functions:
Real-time battery level display
Audio prompts for power on/off and testing
Viewable device serial number and firmware version
Supports one-click switching between Chinese and English

GA-C106 Chlorophyll Fluorometer

II. Parameter teknik

1. Light Source Type: LED blue light: 455nm
2. Light Intensity Range: 0～23000 μmol·m⁻²·s⁻¹
3. Over-temperature Protection: Prevents LED overheating and aging
4. Sensor: PIN diode with fluorescent bandpass filter
5. Sensor gain adjustable in 6 tingkat: 1, 2.3, 4.2, 5.6, 15.6, 20
6. Storage capacity: 99,999 records
7. Fastest sampling rate: 10detik
8. Sampling accuracy: 16sedikit
9. Menampilkan: 3.5-inch touchscreen, 320×480 resolusi
10. Sumber Daya listrik: Built-in lithium battery, 3.7V 10.5Ah, 20-hour standby time
11. Berat: 500G (main unit 380g, probe 120g)
12. Main unit dimensions: 18×8.5×4cm
13. Operating ambient temperature: -15~40℃, humidity 0~90%RH
14. Suhu penyimpanan: -20~50℃.
