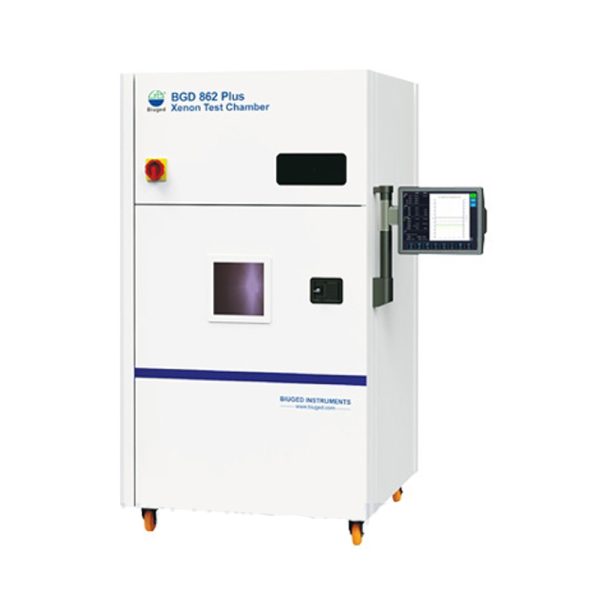

BGD 862 Plus Xenon Test Chamber

GA-B010 Three Box Thermal shock test chamber
GA-IPX14B-R200 Rain Sprinkling Test Chamber

Kategori:

Keterangan

Xenon Test Chamber

BGD 862 Plus is a multi-function big xenon light accelerated weathering testers which is equipped with one piece high power （6.5KW）water-cooling xenon lamp, its exposure area arrive 6,500cm2

Xenon Test Chamber
Powerful functions and reliable test results
◆ Meet with all international standards of xenon test.
◆ Equipped with USA brand xenon arc lamp , filter and components, ensure to get high and same running parameters. Test results have a good reliability and repeatability comparing with import machines.
◆ Automatic rotating drum-type sample rack with three floors structure maximizes exposure uniformity over all specimens
◆ 6,500cm2 exposure area , can hold different shapes and sizes samples.
◆ Can set the cumulative energy （total irradiance energy）obtained by sample to finish a test procedure.
◆ Advanced cooling system for xenon lamp and intelligent air system.
◆ Chinese or English operation window

Remote monitoring and cloud data services
◆ Remote monitoring of all the running conditions of Xenon Test Chamber, and storing data in Cloud Server, which is convenient for users to manage data.
◆ With the mobile APP, it is convenient for users to monitor the operation of the instrument at any time.

Xenon Test Chamber

Can set and control automatically many test parameters
◆ Irradiance energy can be set and accurately controlled（340nm, 420nm, 300nm~400nm，300nm~800nm）. Itu “Solar Eye” control system can monitor and automatically compensate the change of light intensity caused by ageing or other factors.
◆ Working room temperature, BPT（black panel temperature）and BST（black standard temperature）can be set and controlled automatically. With high precision Pt 100 temperature sensor, all these temperatures could be monitored accurately.
◆ Working room relative humidity can be set and controlled automatically. With ultrasonic wave humidifying system, the working room can obtain more stable and uniform humidity distribution.
◆ Can set spray way to sample（front spray or back spray）, spray time and spray interval time.

Simple, mudah digunakan
◆ Colorful touch screen and user-friendly operation interface allow operator to set the test parameters and monitor it easily.
◆ The test procedures can be programmed freely, and up to 6 predetermined procedures can be saved in one time.
◆ Operator can also set the test program. Hingga 9999 programs can be edited, and each program can set 30 different working conditions. A large number of user programs can be saved, which is flexible and convenient.
◆ With USB interface, operator can export any test parameters with Excel format at any time, convenient to check B-SUN’s running status at any time.
◆ Equipped with pure（deionized）water machine. With high purity water, operator can get a more reliable testing result，Chamber has alarm function for monitoring water.
◆ Special test sample shelf size and clamping mode can be customized according to customers requirements.

Xenon Test Chamber

Safe and reliable
◆ Many alarm protections: Big irradiance difference, water conductivity is over limits, too high temperature of cooling water, too low flow rate of cooling water, over-temperature, heating problem. B-SUN will stop running automatically and show the alarm information in the operation window.
◆ Can select TCP/IP Ethernet interface, the user can tele-control the machine through TCP/IP internet. Convenient to help
customers to slove all problems and do some necessary after service.

meminta informasi →

Barang Teknis ↓

 BGD 862 Plus Xenon Test Chamber
Xenon Lamp 6.5 KW water cooling long arc xenon lamp
Light Filter Import originally from USA brand, can simulate indoor or outdoor sunshine spectrum
Exposure Area 6,500 cm2（63-65 pcs standard samples of 15cm×7cm size）
Monitoring Method to Irradiance Four types：340nm，420nm，300nm～400nm，300nm～800nm

Showing at the same time
Adjustable Irradiance See Table B.
Lifetime of lamps 2,000 jam
Adjustable Range of BPT RT~110℃
Adjustable Range of BST RT~120℃
Adjustable Range of Working room RT~70℃（Dark）
Suhu Stability ±1℃
Suhu kamuniformity ≤2℃
Temperature Deviation ≤ 1℃
Adjustable Humidity Lampu：10%-80% Dark：10%-95%
Rotate speed of sample 1 r/min（circle as lamp centre）
Spray Fungsi Can set spray continuous time and spray period
Air Demands High purity deionized water（Conductivity<2us/cm）
Compressed Air Clean，oilless compressed air with 0.5MPa pressure，Maks. air supply is near 60L/min. Average air consumption is 10L/min～30L/min（Depends on testing standard）
Flow of Deionized Water 0.2L/min（Add humidity or spray）
Power Supply AC380V±10%，Three-phase four-wire 50Hz；Maks. Current 50A，Maks. Power 9.5KW
Ukuran keseluruhan 1,220mm×1,200mm×1,970mm（L×W×H）
Bersih Berat 500 kg
Struktur
Cabinet Material Working room is made up of high quality stainless steel （SUS316）
Chamber Door Simple door to left with filter window；silicon rubber seal the door edge
Sampel Holder Bahan baja tahan karat, its position in the chamber can be adjusted（up, middle or down）, Sample crack rotate around the centre of lamp
Controller Siemens programmable controller. LCD touch-screen
Way of adding humidity Add humidity by high pressure aerosol
Thermometer Heat insulate type black standard thermometer and black panel thermometer
Cooling System Cooled by compressor and forced-air blast system
Security ProtectionS And Error ProtectionS
Xenon Lamp Protection Over temperature of cooling water，low flow of cooling water，abnormal of lamp power
Alarm Function Big irradiance difference, over-temperature of BPT or BST or Working room, big error of humidity, spraying water shortage, pure water conductivity is over limits.

Operator can set these values and downtime
Pure System Protect Monitor the conductivity of pure water at real-time（Once the conductivity≥2us/cm, the machine will stop and alarm）
Protection to Radiation Xenon lamp will turn off automatically when opening the chamber door, in case xenon lamp radiate operator
