GA-2001-D Ruang Kelembaban Suhu yang Dapat Diprogram 800L
- Keterangan
- Pertanyaan
Keterangan
GA-2001-D Ruang Kelembaban Suhu yang Dapat Diprogram 800L
Standar Desain:
| GB11158 | Kondisi Teknis Ruang Uji Suhu Tinggi |
| GB10589-89 | Kondisi Teknis Ruang Uji Suhu Rendah |
| GB10592-89 | Kondisi Teknis Ruang Uji Suhu Tinggi-Rendah |
| GB/T10586-89 | Kondisi Teknis Ruang Uji Panas Lembab |
| GB/T2423.1-2001 | Metode Uji Ruang Uji Suhu Rendah |
| GB/T2423.2-2001 | Metode Uji Ruang Uji Suhu Tinggi |
| GB/T2423.3-93 | Metode Uji Ruang Uji Panas Basah |
| GB/T2423.4-93 | Metode Uji Panas Basah Bergantian |
| GB/T2423.22-2001 | Metode Uji Perubahan Suhu |
| IEC60068-2-1.1990 | Metode Uji Ruang Uji Suhu Rendah |
| IEC60068-2-2.1974 | Metode Uji Ruang Uji Suhu Tinggi |
| GJB150.3 | Metode Uji Suhu Tinggi |
| GJB150.4 | Metode Uji Suhu Rendah |
| GJB150.9 | Metode Uji Panas Basah |
GA-2001-D Ruang Kelembaban Suhu yang Dapat Diprogram 800L
Kegunaan:
Peralatan ini dapat mensimulasikan kondisi lingkungan yang berbeda. Ini cocok untuk menguji kinerja material, seperti menahan panas, tahan kering,tahan kelembaban dan tahan dingin. Itu dapat menentukan kinerja material.
GA-2001-D Ruang Kelembaban Suhu yang Dapat Diprogram 800L
Spesifikasi
| Nama | Temperature humidity test chamber |
| Model | GA-2001-D |
| Meet test standard | 1.GB11158 high temperature test box technical conditions
2.Gb10589-89 technical conditions of low temperature test chamber 3.Gb10592-89 high and low temperature test chamber technical conditions 4.GB/ t10586-89 wet and heat test chamber technical conditions ⒌ GB/T2423.1-2008 test method for low temperature test chamber 6.Temperature test box test method 7.GB/T2423.3-2006 wet and heat test box test method ⒏ GB/T2423.4-2008 alternating hot and humid test method ⒐ GB/T2423.22-2002 temperature change test method ⒑ IEC60068-2-1.1990 – test method for low temperature test chamber ⒒ IEC60068-2-2.1974 – test method for high temperature test chamber ⒓ GJB150.3 high temperature test ⒔ GJB150.4 test at low temperature ⒕ GJB150.9 humid heat test 15. GB4706.1-2005 16. IEC60335 1:20-04
|
| Describe purpose | This test chamber provides high temperature, low temperature, high humidity, low humidity simulation environment, to test the rubber, plastik, electronic products before and after the test material and strength reduction degree.The machine can also simulate the container environment to detect the fading and shrinkage of rubber and plastic under high temperature and humidity.Test heat, cold, dry and moisture resistance of various materials.Suitable for electronic, electrical, baterai, universities, lembaga penelitian, inspection and quarantine bureau, paper products, makanan, vehicles, suku cadang mobil, logam, kimia, building materials and other industries factory unit quality control testing. |
| characteristics | Perfect shape design high texture appearance equipment noise small operation simple safe and reliable |
| Prohibited items of experimental equipment | 1. Test or store samples of inflammable, explosive and volatile substances
2. Corrosive material samples are tested or stored 3. Test or storage of biological samples 4. Test or storage of strong electromagnetic emission source samples |
| Inner chamber size | （W*H*D）1000mm*1000mm*800mm |
| Out chamber size | （W*H*D）1520mm*1850mm*1280mm |
| Volume size | 800L |
| Kisaran suhu | -40℃ ~ +150℃ |
| Humidity range | 20～98% R•H |

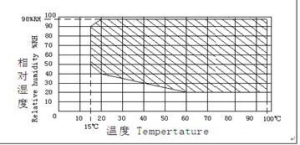

| Temperature and humidity control range |  |
| Control stability | Temperature ±0.5℃；Humidity ±2% |
| Distribution uniformity | Temperature ±2.0℃；Humidity ±3.0% |
| Heat time | average3℃~5℃/minute，Nonlinear heating |
| Waktu pendinginan | average0.7℃~1℃/minute，Nonlinear heating |
| Temperature limit | Max temperature +150℃；Min temperature -40℃ |
| Brief introduction to box structure | As a whole, it is divided into laboratory, electric control cabinet and machine warehouse. The upper left part is the laboratory, which is composed of the inner tank of the insulation layer.Electronic control cabinet is located on the right, the panel is mainly composed of temperature controller, switch press and fault protection indicator light;The engine compartment is located under the laboratory and consists of filters, solenoid valves, circuit parts, compressors and other accessories. |
| Shell material | Iron plate outside coating |
| Interior material | SUS#304Stainless steel plate; |
| Heat preservation material | Polyurethane rigid foam + glass wool |
| stringency | Silica gel foam tight 1pcs |
| shelf | The cabinet is provided with stainless steel shelving with adjustable height 2pcs |
| heater | Adopt stainless steel fin type heat pipe from Taiwan |
| humidifier | Split type humidifier design |
| Fan motor | The motor 1 buah
Stainless steel extension shaft Multi – wing fan – blade aluminum alloy wind wheel Special adjustable 100 – page air supply circulation system
|
| Chamber door | Single door, double door, embedded non – reaction plane handle
Three layers of vacuum glass enlarge the window Electric automatic mist removal, LED lighting
|
| Water box | 1 pcsexternal removable water tank (mudah dibersihkan)
1 set of automatic water refill device Water shortage alarm device
|
| foot stool | Polyurethane movable universal wheels are installed at the bottom of the fuselage 4pcs |
| Characteristics of refrigeration system | Multi-stage automatic load capacity adjustment technology
Compressor ~ French “taikang” brand closed compressor Condenser – fin attached – stage cooling fan Evaporator – fin multi – stage automatic load capacity adjustment Expansion valve ~ European and American imported components Refrigerant ~ environmental frozen snow species Accessories ~ desiccant, oil separator, snow seed window… |
GA-2001-D Ruang Kelembaban Suhu yang Dapat Diprogram 800L
