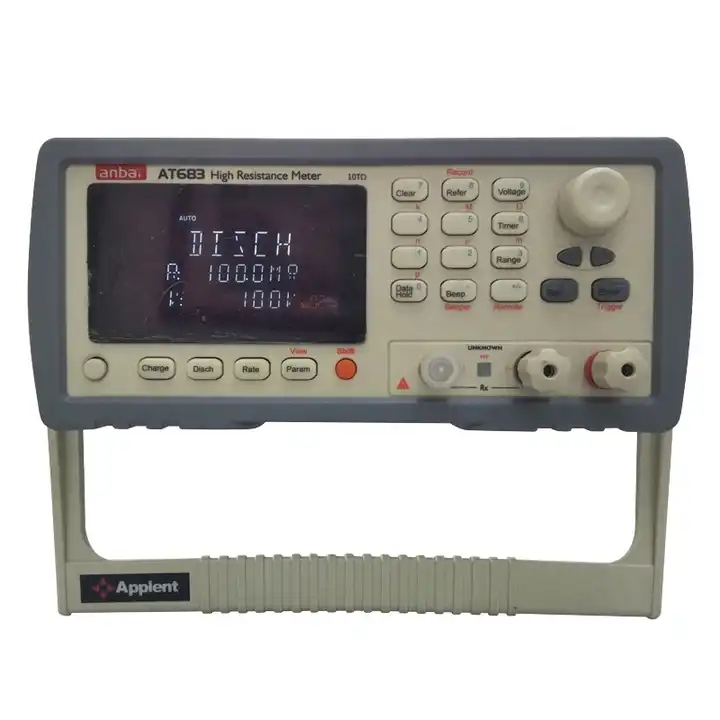

AT683 Insulation Resistance Tester
- Keterangan
- Pertanyaan
Keterangan
Insulation Resistance Tester
Under the condition of without using of an external voltage source, AT682/AT683x has high-cost performance and provides the shortest response time which completely surpasses simulation meter.
Insulation Resistance Tester
| Spesifikasi | ||||
|
AT682 |
AT683 |
AT6830/6833 (customized for equipment factory) |
||
| Parameter |
Leakage current and insulation resistance |
Resistensi isolasi |
||
| Tegangan Keluaran |
AT682, AT683: (NC)1V~1000VDC AT6830: 50V,100V,250V,400V,500V AT6833: 50V,100V,250V,400V,500V, 1000V |
|||
| Akurasi Dasar | <10G: 3% ≥10G: 5% ≥100G: 10% | |||
| Pengukuran Jangkauan | 10kW~1TW (104~1012W)
10V: 10kW~10GW 100V: 100kW~100GW 1000V: 1MW~1000GW |
100kW~10TW
10V: 100kW~100GW 100V: 1MW~1TW 1000V: 10MW~10TW |
50kW~500GW (104~1011W)
50V: 50kW~50GW 500V: 500kW~500GW AT6833: 1000V: 1MW~1000GW |
|
| Display Max | 9999 | |||
| Jangkauan |
Automatic and Manual |
|||
| Kecepatan |
55 times/second,15 times/second,3 times/second |
|||
| Pengaturan |
Open-circuit Zero-Adjust for each range |
|||
| Result Display |
Menunjukkan, saat ini, perlawanan, nilai puncak, sorting results |
None |
||
| Charging Timer |
999.9S |
None |
||
| Pembanding |
30 sets record,GD/NG Beep:GD,Dari,OFF setting |
1 set record, HI/LO NG beep |
||

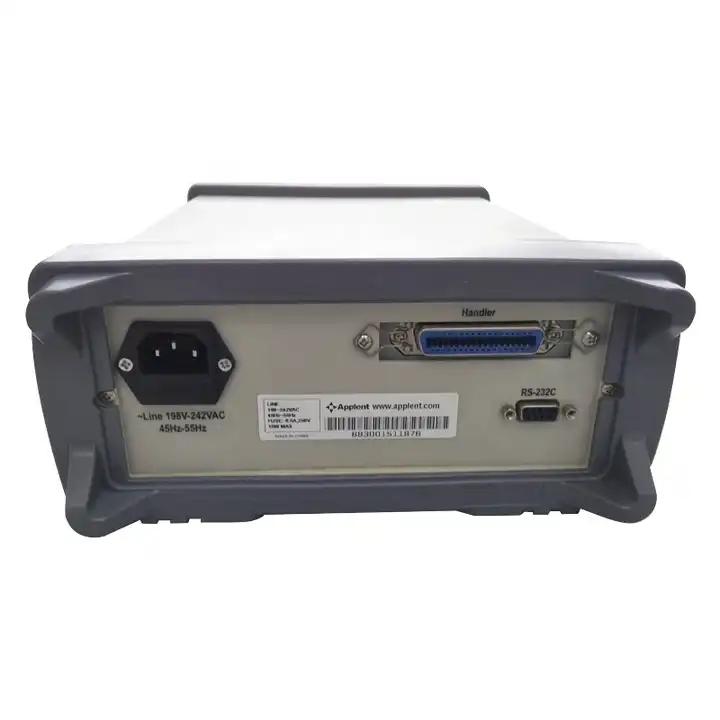

| Antarmuka |
RS-232C interface, Handler interface |
|||
| Yang lain | VFD 4 color high-definition screen, keypad-lock, data hold | Precharging: 500mA | ||
|
GENERAL FEATURES |
||||
| Sumber Daya listrik |
AT682, AT683: Tegangan: 198VAC~240VAC, Frekuensi:50Hz, Kekuatan: Max 30VA AT6830/6833: Tegangan:198VAC~240VAC, Frekuensi:50Hz, Kekuatan:200VA |
|||
| Ukuran |
AT682, AT683: (mm)264(Lebar)x107(Tinggi)x350(Kedalaman), 5kg AT6830/6833: (mm) 445 (Lebar)x129 (Tinggi)x351 (Kedalaman), 8kg |
|||
| ORDERING INFORMATION | ||||
| Aksesoris |
ATL507 Test clip ATL108 RS232 communication cable AC Power Cord |
|||
