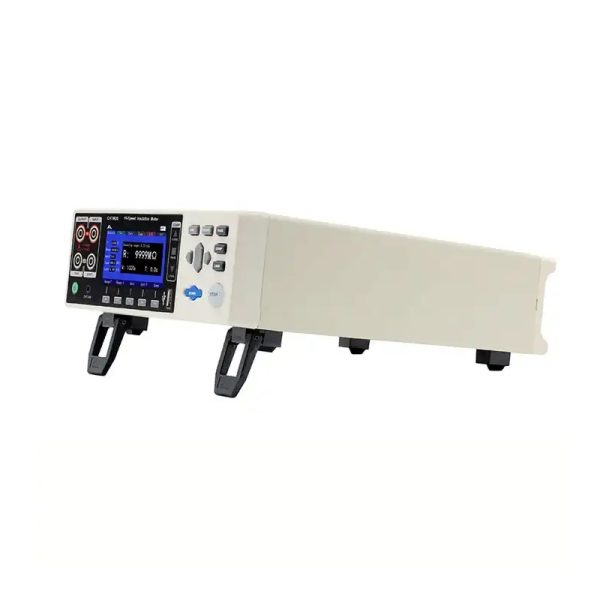

CHT9920 Lithium Battery Short Circuit Tester
- Descripción
- Consulta
Descripción
Battery Short Circuit Tester
Breve introducción
Quick test, fast charge and discharge.Can be set low pressure prediction, prevent high voltage breakdown after miscalculation. Check the test contact function to prevent miscarriage after test line open circuit. A variety of parameter Settings quickly switch, at the same timetest the positive and negative, the shell – electrode.Rich interface, suitable for any automatic testing line, form a complete set of interfaces.
Battery Short Circuit Tester
Parámetro técnico
| ESPECIFICACIONES | |
|
CHT9920 Insulation Resistance Tester(Lithium Batteries Short Circuit Tester) |
|
| Parámetro | Resistencia de aislamiento |
| Rango de prueba | 0.000 ~9990MΩ(5 rangos) |
| Precisión básica | ±2% rdg. ±5 dgt. |
| Test Voltage | 25~1000V |
| Prueba de velocidad | 50EM(rápido)/500EM(lento) |
| Connection Abnormal Display | High voltage side open circuit “ContHi”,Low voltage side open circuit “ContLo”,Output open circuit “ContHL” |
| Short Circuit Abnormal Display | “SHORT” |
| Range Overrun Display | Range exceed lower limit “UNDER.F”,Range exceed upper limit “OVER.F” |
| Discharge Current | 12mA constant-current discharge |
| Comparador | PASS/L.FAIL/U.FAIL |
| Almacenamiento de datos | Can record 10 sets of panel data |
| Modo de disparo | Internal trigger, IO trigger, gatillo manual, gatillo |
| IO Interface Type | Can be configured as PNP or NPN |

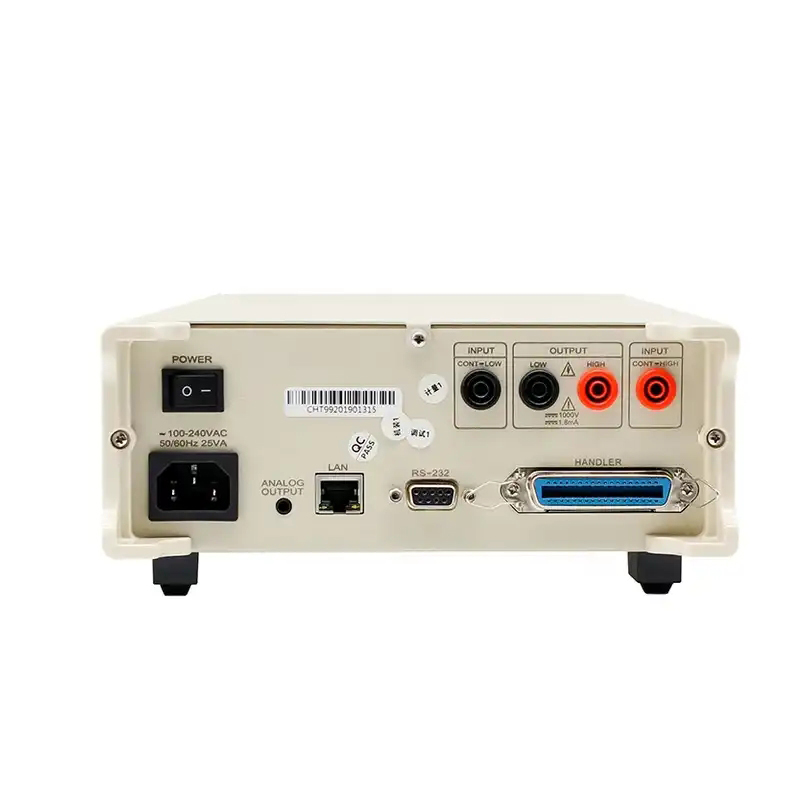

| Interfaz | External IO/analog output (opcional)/LAN/ RS232 |
| CARACTERÍSTICAS GENERALES | |
| Fuente de alimentación | Voltaje:100V ~ 250V AC,Frecuencia: 50Hz/60Hz |
| Tamaño y peso | 325milímetros(l) x 215mm (W.) X 96 milímetros (h); Peso: 3KG |
| ORDERING INFORMATION | |
| Accesorios | Three-terminal Test Clip
RS232 Communication Cable Handler Connector Cable de alimentación de CA |
