Beschreibung
WJ-2.2B/2.2D/3.7D Variable Speed Mixer
Überblick:

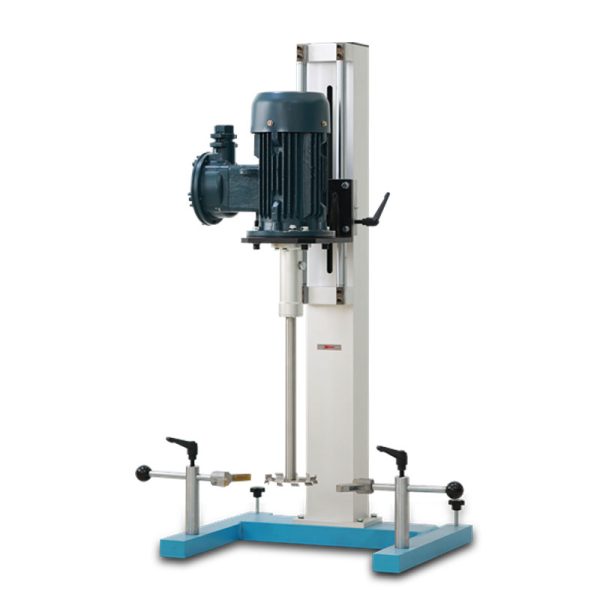

WJ-2.2B Variable speed Mixer (frequency conversion full explosion-proof) Überblick:

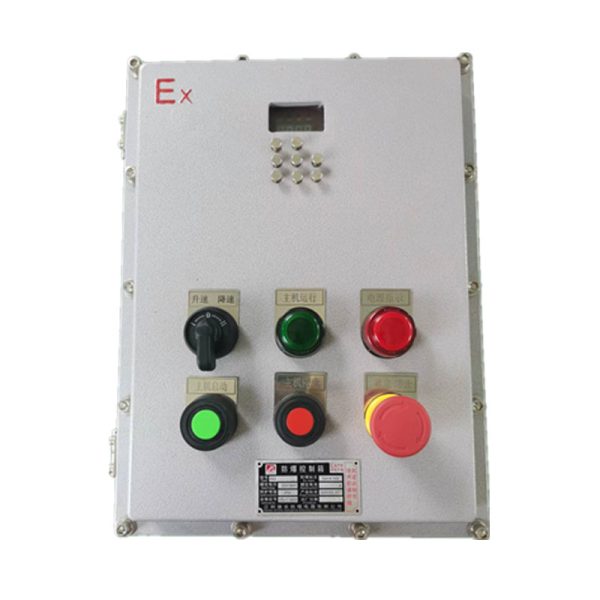

WJ-2.2B variable speed mixer (frequency conversion full explosion-proof) is a small mixing equipment used for dispersing, blending and mixing various liquid materials in explosion-proof occasions. The machine provides full explosion-proof electrical control box, using explosion-proof motor, frequency conversion speed regulation, with stirring speed display and other functions.

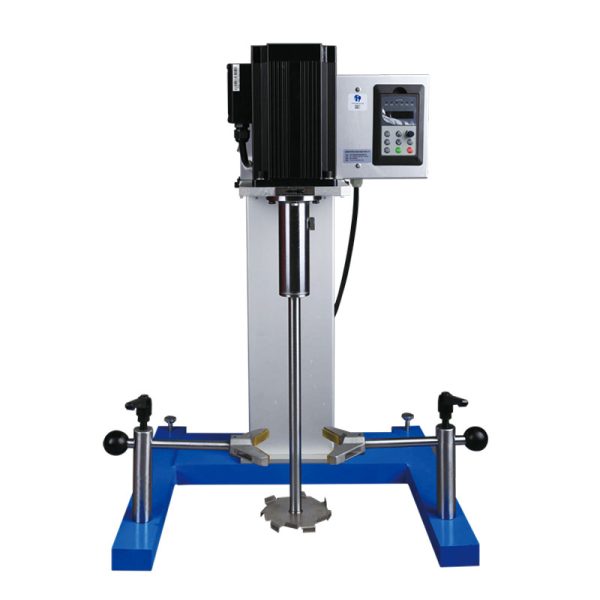

WJ-2.2D Variable speed Mixer (brushless DC electric lift) Überblick:
WJ-2.2D variable speed mixer (brushless DC motor, electric lift) adopts brushless DC motor, vector frequency control, digital knob speed regulation, direct display of mixing speed, leicht zu bedienen. Commonly used in paint, malen, ink and other chemical laboratories and pilot production. Because the machine adopts vector frequency conversion control, the spindle speed is almost not affected by the change of external torque. It not only avoids the shortcomings that the working speed of the AC variable frequency motor changes with the change of external torque, but also avoids the trouble of replacing the brush of the traditional DC motor.

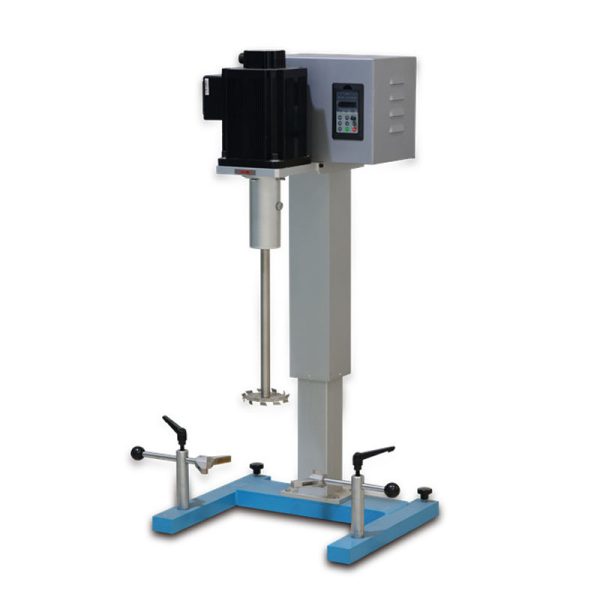

WJ-3.7D Variable speed Mixer (brushless DC electric lift) Überblick:
WJ-3.7D variable speed mixer (electric lift) adopts brushless DC motor, vector frequency control, digital knob speed regulation, direct display of mixing speed, leicht zu bedienen. Commonly used in paint, malen, ink and other chemical laboratories and pilot production.
WJ-2.2B/2.2D/3.7D Variable Speed Mixer
Parameter
| Modell | WJ-2.2B | WJ-2.2D | WJ-3.7D |
| motor power | 2.2kW | 2.2kW | 3.7kW |
| speed adjustable range | 0~4000rpm | 300~4000rpm | 300(50)~4000rpm |
| Hubschlag | 400mm | 400mm | 400mm |
| Stromversorgung | 380V 50Hz | 220V 50Hz/60Hz | 380V 50/60Hz |
| Dimensions of the main machine | 500×650×1400mm | 500×580×850mm | 580×580×940mm |
| package size | 700×570×1370mm | 650×570×1010mm | 700×570×1370mm |
| Gewicht | 60kg | 45kg | 50kg |
| Gross weight | 115.5kg | 68.5kg | 83.5kg |
