GA-3414 Превключвател – Ключов тестер за крива на изместване на натоварване

Описание

Load Displacement Curve Tester

Кратко въведение:

GA-3414 switch – button load displacement curve test machine is suitable for all kinds of buttons and switches (натоварване – денивелация) curve, тест, using WINDOWS Chinese Windows screen to set, simple and convenient operation, and all data can be stored (test conditions, displacement curve, life curve, inspection report —-, и т.н.)

This MACHINE ADOPTS servo motor drive, which can provide high precision (load-displacement) измерване, and can get completely accurate button and switch curve test.

Load Displacement Curve Tester

Характеристика:

※ PEAK FORCE, RETURNFORCE, DISTANCE and CLICK rate can be displayed directly on the chart without manual calculation.

※ The measurement curve is memorized by the computer and can be enlarged and reduced at any time. A piece of A4 paper can be arbitrarily specified N curves.

※ The measurement items can input the upper and lower limit specification values, the measurement results can automatically determine OK or NO.

※ Can input the maximum measuring stroke and load, computer automatic control.

※ Test report can be converted to EXCEL and other document report format.

※ Inspection report can be generated automatically, no further input is required.

※ The header of the inspection report can be changed at any time.

※ Test conditions are set by computer screen, удобно и бързо.

※ Test data is stored on hard disk. (Each data can be stored for an unlimited number of times)

※ The computer directly prints and stores the force displacement curve, and checks the report form. (Grid paper is not required, A4 paper is generally acceptable)

※ The load unit display N, Ib, ж, kg can be changed freely.

Load Displacement Curve Tester

технически параметри

Maximum load measured: 2килограма (American transmission force)

Minimum decomposition: 0.1ж

Maximum measuring height: 100мм

Minimum fine-tuning distance: 0.01мм

Measuring speed range: 0-100мм/мин

Transmission mechanism: Japan THK ball screw

Drive motor: Panasonic servo motor

Размер на външния вид: 300*270*500(W*D*H)мм

Тегло: 30Килограма (машина)

Захранване: AC220V

Computer Configuration:

Intel 2020 original package and core

Gigabyte H61-DS3

Kingston 2G/1333

Seagate 500GB 16MB

Asus 18X DVD-ROM

Great Wall 300W power supply

Toplon industrial computer box

Load Displacement Curve Tester

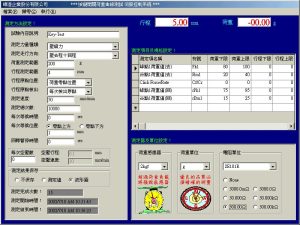

Test interface diagram:
