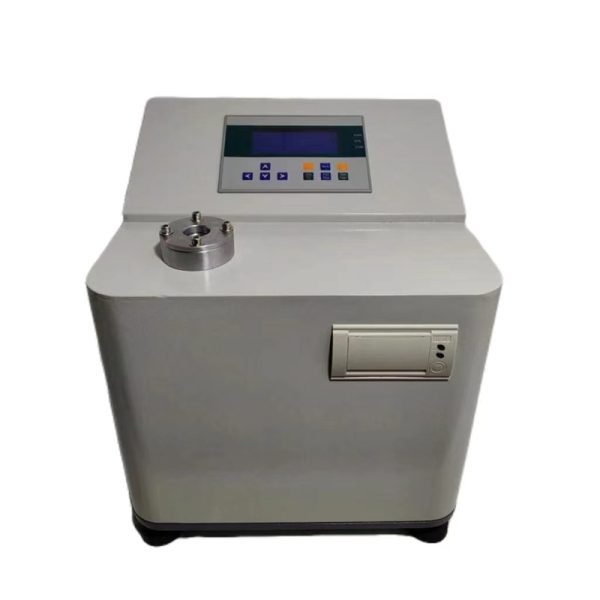

Leather Cracking Strength Tester

أنا. Instrument introduction:
The round leather test piece is clamped on the leather cracking tester, and the top rod of the leather cracking tester is driven by transmission, so that the steel ball of the top rod is squeezed into the center of the meat surface of the test piece. The pressure value when the grain surface of the test piece cracks and cracks is the fracture strength of the test material.

Ii. Reference standard:
Comply with: GB/T3903.40, QB/T2712, ايزو 3379, من 53325, SATRA TM24, QB 3812.7 and other standards.

Leather Cracking Strength Tester

Iii. المواصفات الفنية:
1. Load: 2000ن.
2. Induction mode: force sensor.
3. Unit switching: kgf, ن, Lb.
4. Diameter of the sample after fixation: Ф25mm.
5. سرعة الاختبار: (12±3) mm/min.
6. Diameter of steel ball: ف (6.25±0.05) مم.
7. محرك: stepping motor.
8. مقدار: (38x34x45) سم.
9. وزن: about 30kg.
10. مزود الطاقة: AC220V 90W.

Four, random accessories:
1. 1 knife die, 1 power cord, 1 socket wrench.
2. 1 copy of manual, 1 copy of internal calibration report, 1 copy of quality guarantee.
